Specifications

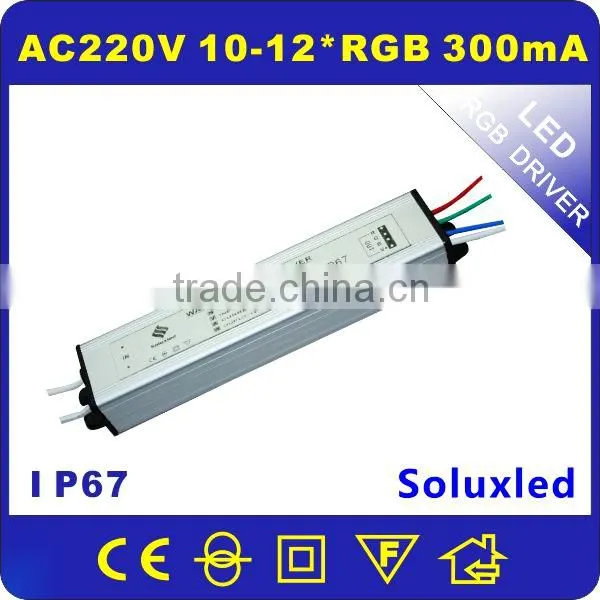

small size,multifunctional protection.high anti-interference ability ,high reliability.synchronization performance.Product code: HG-WP2036
| LED Driver power supply , for RGB lamp ,Internal control | ||||||||
| MODEL | HG-2403 | HG-2404 | HG-2405 | HG-WP2012 | HG-WP2018 | HG-WP2024 | HG-WP2036 | |
| OUTPUT | RATED POWER | 2-3*RGB/4-6*RGB | 1*RGBY | (1-4)*RGB | (2-3)*RGB | (4-6)*RGB | (8-9)*RGB | (10-12)*RGB |
| RATED CURRENT | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | |
| VOLTAGE RANGE | 6-10V/12-21V | 4V | 3-15V | 6-10V | 12-21V | 18-32V | 30-42V | |
| CURRENT TOLERANCE | 5% | |||||||
| Program | Jump+Gradual | |||||||
| INPUT | VOLTAGE RANGE | AC12V/AC24V | AC12/24V | AC24V | AC220V | AC220V | AC220V | AC220V |
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR | / | / | / | / | / | / | / | |
| EFFICIENCY | / | / | / | / | / | / | / | |
| ENVIRONMENT | WORKING TEMP | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C |
| QTHERS | DIMENSION(mm) | 55*26*16 | 40*27*12 | Dia32*12 | 108*30*20 | 108*30*20 | 108*30*20 | 108*30*20 |
Product characteristics:
² Constant current;
²without flicker;
² Low heat,high efficiency;
² Large selection of the parameter, long working-time;
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable performance.
² passing 100% aging test, high reliability;
² With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.
Output characteristics:
Ø type:RGB
Ø watt:10-12*RGB*1W
Ø voltage:DC30-42V
Ø current:300mA
Ø ripple:2Vp-p
Ø Output groups:3
Certification:
CE and BV
Packing:
Cartons
Quality guarantee:
1.The warranty period is 1-2 years.,
2.During the time ,if the product have any question ,we can change the same to you.
We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
