KYF/XCF Inflatable Machanical Mix Type Flotation Machine With High Efficiency
Specifications
1.ISO9001:20082.Hot sale in Africa, Asia, East Europe etc.
3.Good mineral processing facility
4.High flotation efficiency
Introduction of KYF/XCF Series Flotation Machine:
1) KYF/XCF inflatable mechanical mix type flotation machine is an outside inflation flotation machine;
2) The efficiencyhas been greatly increased by using vertical slurry big circulation and low pressure air that generated by blower.
Application of Flotation machine:
This advanced flotation machine is an ideal choice for separating non-ferrous metal, ferrous metal and nonmetal.
Technical Parameters of KYF/XCF Flotation Machines:
| Model |
Effective volume (m3) |
Trough dimensions (m) |
Impeller diameter (m) |
Impeller velocity (m/s) |
Power (kw) |
Blower air pressure (kpa) |
Single trough air consumption (m3/min) |
Production capacity (m3/min) |
Single trough weight (kg) |
| KYF-2 | 2 | 1.30*1.30*1.25 | 0.42 | 5.30 | 5.5 | ≥16 | 0-3 | 0.5-2 | 990 |
| XCF-2 | 2 | 1.30*1.30*1.25 | 0.47 | 7.50 | 7.5 | ≥ 16 | 0-3 | 0.5-1 | 1150 |
| KYF-3 | 3 | 1.60*1.60*1.40 | 0.48 | 5.50 | 7.5 | ≥ 18 | 0-5 | 0.7-3 | 1885 |
| XCF-3 | 3 | 1.60*1.60*1.40 | 0.54 | 7.00 | 11 | ≥ 18 | 0-5 | 0.7-1.5 | 1974 |
| KYF-4 | 4 | 1.80*1.80*1.50 | 0.55 | 5.76 | 11 | ≥ 19.8 | 0-6 | 1-4 | 2084 |
| XCF-4 | 4 | 1.80*1.80*1.50 | 0.62 | 7.30 | 15 | ≥ 19.8 | 0-6 | 1-2 | 2305 |
| KYF-8 | 8 | 2.20*2.20*1.95 | 0.63 | 6.00 | 15 | ≥ 21.5 | 0-10 | 2-8 | 3478 |
| XCF-8 | 8 | 2.20*2.20*1.95 | 0.72 | 7.50 | 22 | ≥ 21.5 | 0-10 | 2-4 | 3745 |
| KYF-16 | 16 | 2.80*2.80*2.40 | 0.74 | 6.20 | 30 | ≥ 25.5 | 0-15 | 4-16 | 5423 |
| XCF-16 | 16 | 2.80*2.80*2.40 | 0.86 | 7.80 | 37 | ≥ 25.5 | 0-15 | 4-8 | 6299 |
| KYF-24 | 24 | 3.10*3.10*2.90 | 0.80 | 6.84 | 37 | ≥ 30 | 0-17 | 6-24 | 8840 |
| XCF-24 | 24 | 3.10*3.10*2.90 | 0.93 | 7.95 | 55 | ≥ 30 | 0-17 | 6-12 | 9800 |
| KYF-38 | 38 | 3.60*3.60*3.40 | 0.90 | 6.90 | 45 | ≥ 34.3 | 0-25 | 8-38 | 10136 |
| XCF-38 | 38 | 3.60*3.60*3.40 | 1.05 | 8.15 | 75 | ≥ 34.3 | 0-25 | 8-19 | 12352 |

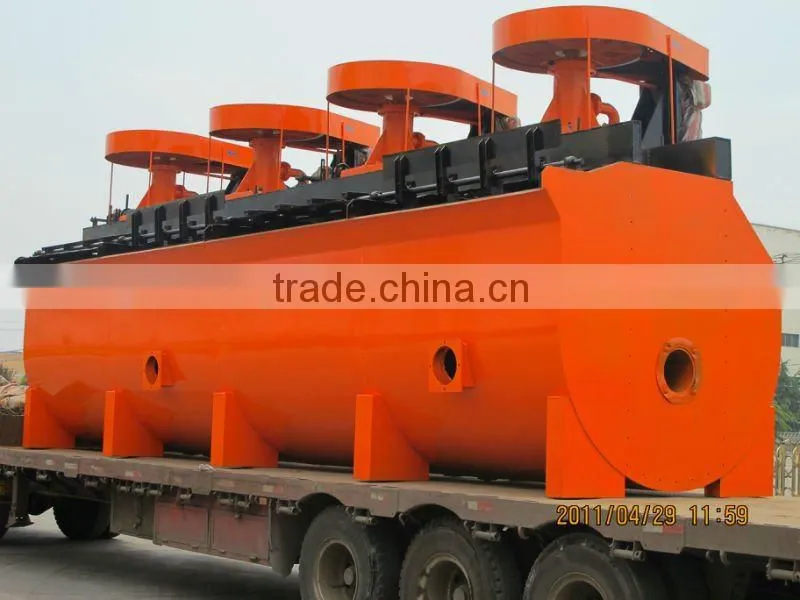

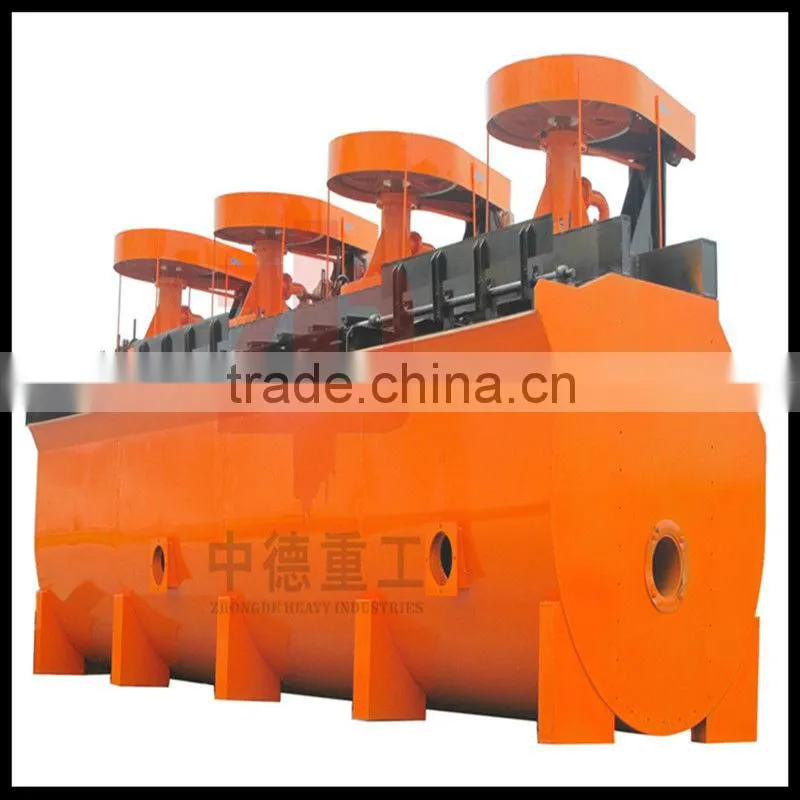

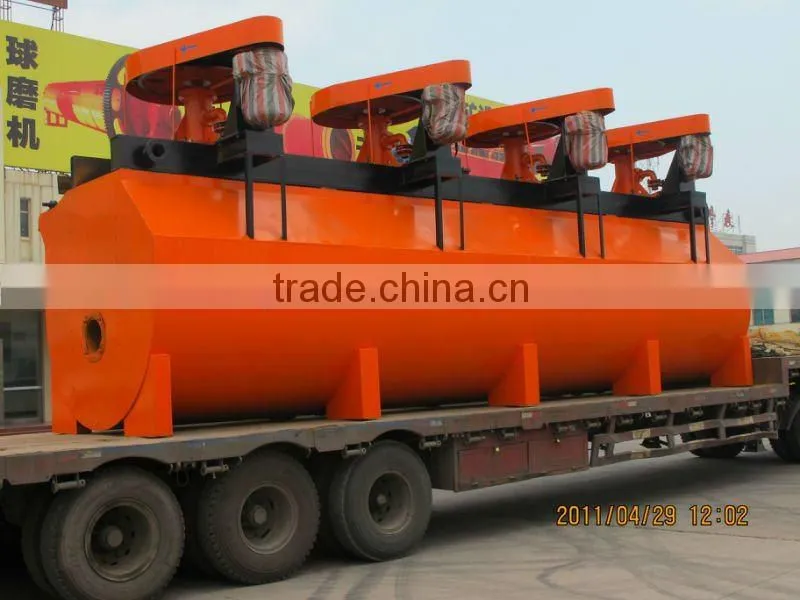

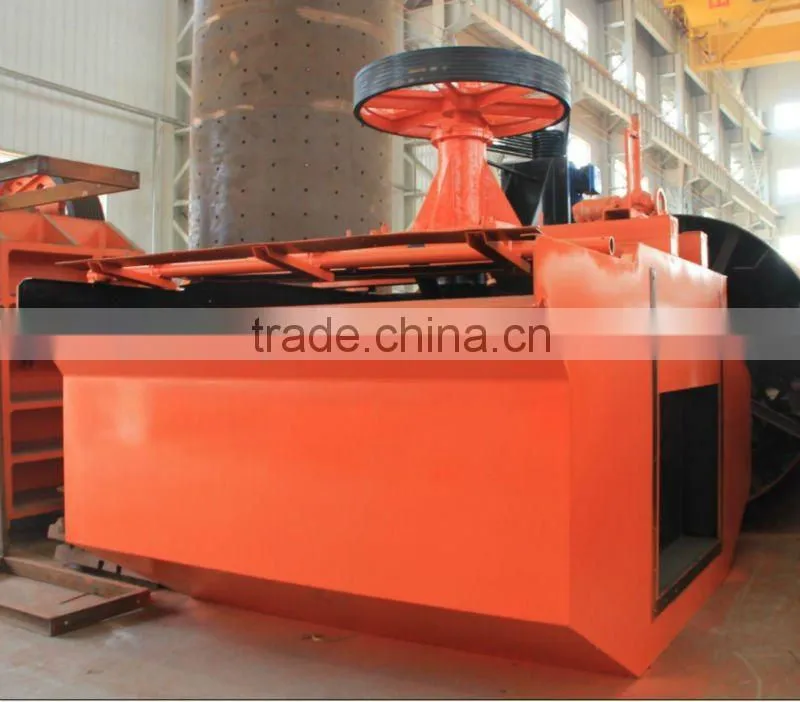

Pictures of Flotation machine:

Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product quality and company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.

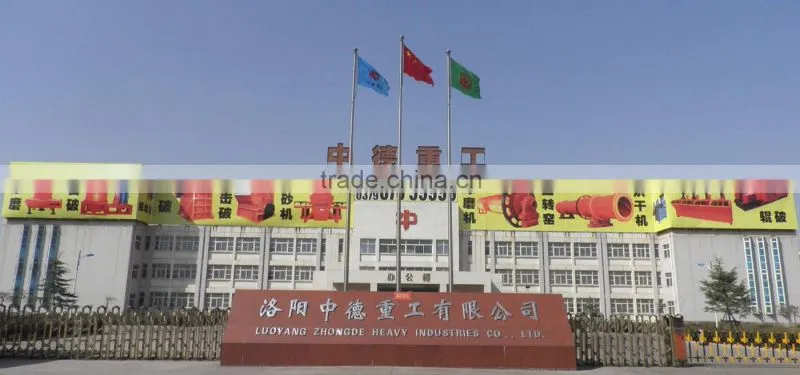

Pictures of company:
Certificate:
Design and research ability:
Consignment:
How about the quality of your KYF/XCF series flotation machine?
- Our KYF/XCF series flotation machine is manufactured strictly according national and international standard.
- We take a test on every KYF/XCF series flotation machine before delivery.
How about price of your KYF/XCF series flotation machine?
- We can give the lowest price of KYF/XCF series flotation machine than market one.
- We do quotation of KYF/XCF series flotation machine as soon as possible for any customer.
- Discount of KYF/XCF series flotation machine can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to install KYF/XCF series flotation machine overseas.
- The guarantee period of our KYF/XCF series flotation machine is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
