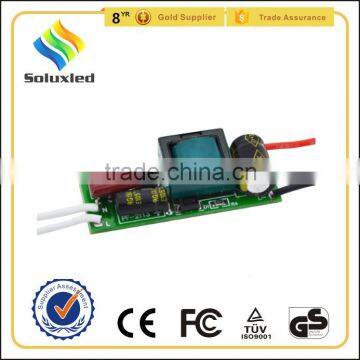

t5 t8 led driver 9-18w

FOB Price

USD $0.5 - $1 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Soluxled
Model Number	HG-PF2113	Output Power	Other, 9-18w
Output Type	Single	Input Voltage	Other, AC100-260V
Output Voltage	60-82V	Output Frequency	50Hz
Output Current	220mA±5%

Product Description

Product features:

² Full range input: AC100-260V

² Constant current, non-isolated

² 100% burn-in tests (at full load), no flicker, stable and high reliability.

² Protection: Over voltage, Over load, Over temperature, Short circuit

² IP20 for indoor installtions

² Rated output can be customized

Product information:

Item No.	HG-PF2113
Type	constant current
Input Voltage	AC100-260V
Output Voltage	DC42-82V
Output Current	220mA ±5%
Output Power	9-18W
Power Factor	0.95
Efficiency	90%
Working Temperaturer	-20°C~+50°C
Protection	Short circuit / over current / over voltage
Size	421710mm
Weight	12g
MOQ	1pcs
Warranty	2 years

Detailed picture:

More items:


Product Code	HG-2226B	HG-2227C	HG-PF2226A	HG-PF2226	HG-PF2227	HG-PF2227B
Power:	9-18W	24-28W	9-18W	9-18W	24-28W	30-36W
Input voltage:	AC170-260V	AC100-260V	AC100-260V	AC100-260V	AC100-260V	AC100-260V
Output voltage:	DC42-82V	60-82V	60-82V	60-82V	60-82V	60-82V
Output current:	220mA±5%	300-350mA±5%	220mA±5%	220mA±5%	300-350mA±5%	450mA±5%
PFC:	<0.65	<0.65	≥0.95	≥0.95	≥0.95	≥0.95
Efficiency:	83%	83%	83%	83%	83%	83%
Type:	non-isolated	non-isolated	non-isolated	non-isolated	non-isolated	non-isolated
Dimension:	631510mm	1211510mm	1101510mm	1101510mm	1251510mm	1531510mm

Production process:

Application: led tube light, panal light

Certificate: CE and BV

Packing:

cartons

Notes:

Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.

Quality guarantee:

ü 1.The warranty period is 1-2 years.

2. During the time ,if the product have any question, we can change the same to you.

ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
