Flotation machine
Characteristics of SF flotation Machine:
1. The impeller consists of closed double section cones, which can produce strong down-circulation;
2. Big air inlet amount, low energy consumption;
3. Each trough has the function of air suction, ore pulp suction and flotation, it can make a flotation circuit itself, with no auxiliary equipments. The horizontal configuration makes it easy to change process;
4. Rational ore pulp circulation reduces coarse sand sediment;
5. There are automatic and electric control devices of ore pulp level, which makes easy adjustment.
Technical parameters:
| Model |
Effective volume (m3) |
Inside dimensions(L×W×H)(m) |
Air suction amount (m3/m² min) |
Power(KW) | Processing capacity(m3/min) |
| BF-0.37 | 0.37 | 0.7×0.7×0.75 |
0.9-1.05 | 1.5 | 470 |
| BF-1.2 | 1.2 | 1.1×1.1×1.1 |
1.0-1.10 | 1.1 | 1370 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 |
0.9-1.10 | 11 | 2130 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 |
0.9-1.10 | 15 | 2585 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 |
0.9-1.10 | 18.5 | 3300 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 |
0.9-1.10 |
22 30 |
4130 |
| BF-10 | 10 | 2.25×2.85×1.7 |
0.9-1.10 |
22 30 |
4660 |
| BF-16 | 16 | 2.85×3.8×1.7 |
0.9-1.10 |
37 45 |
8320 |
| BF-20 | 20 | 2.85×3.8×2.0 |
0.9-1.10 |
37 45 |
8670 |
| BF-24 | 24 | 3.15×4.15×2.0 |
0.9-1.10 | 45 | 8970 |

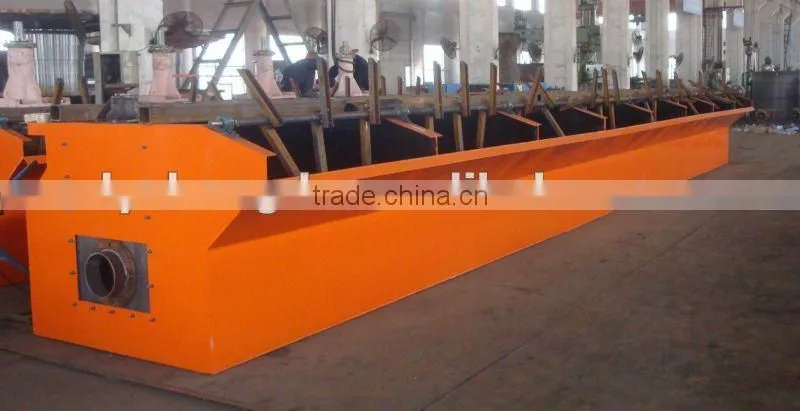

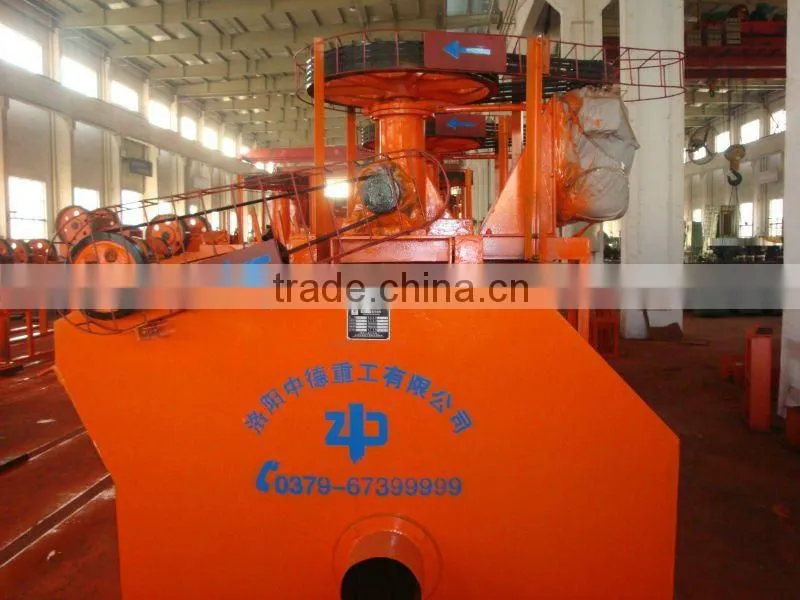

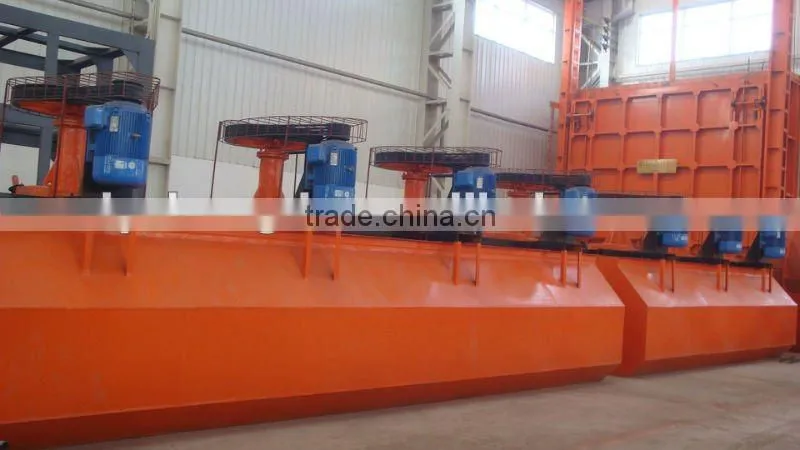

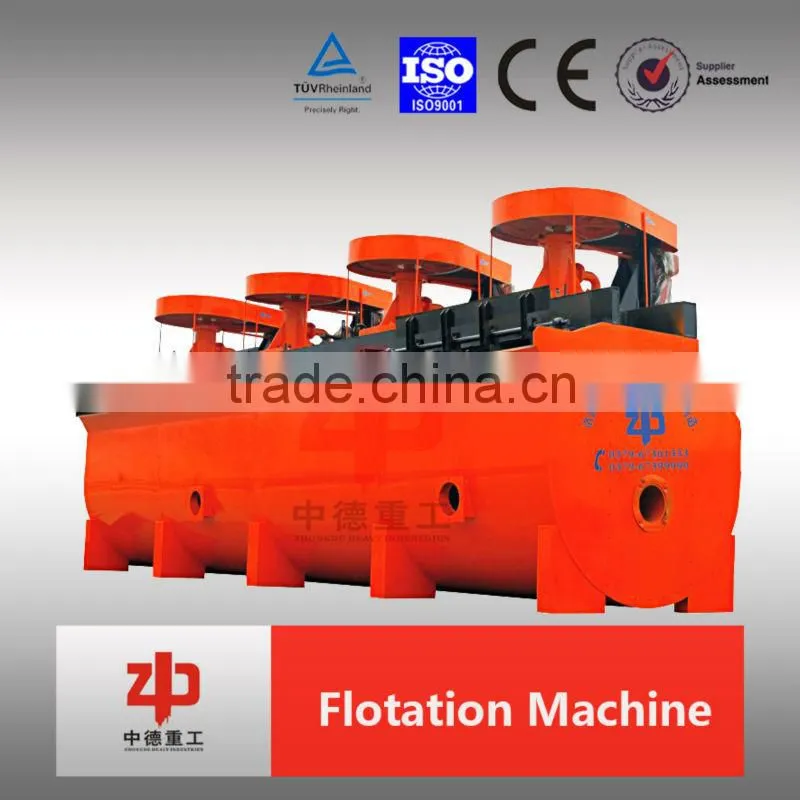

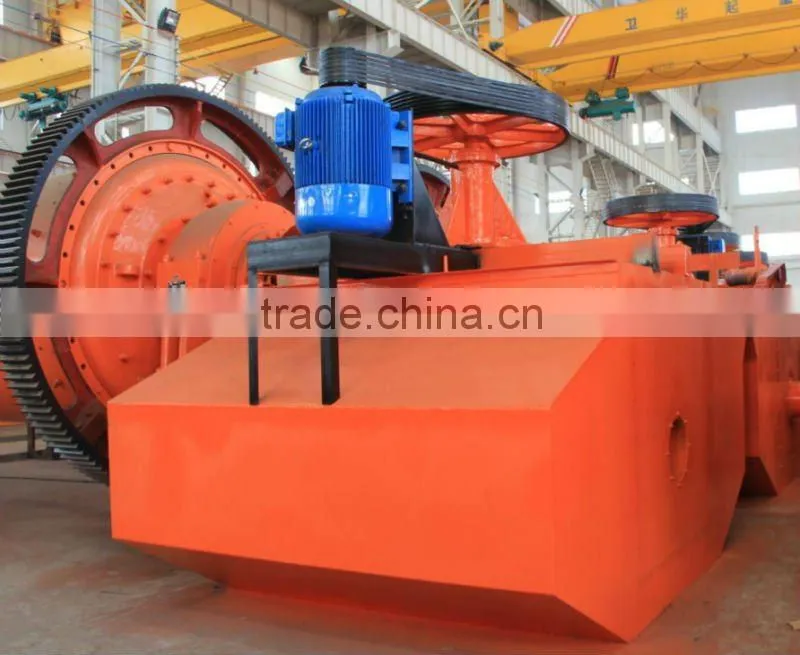

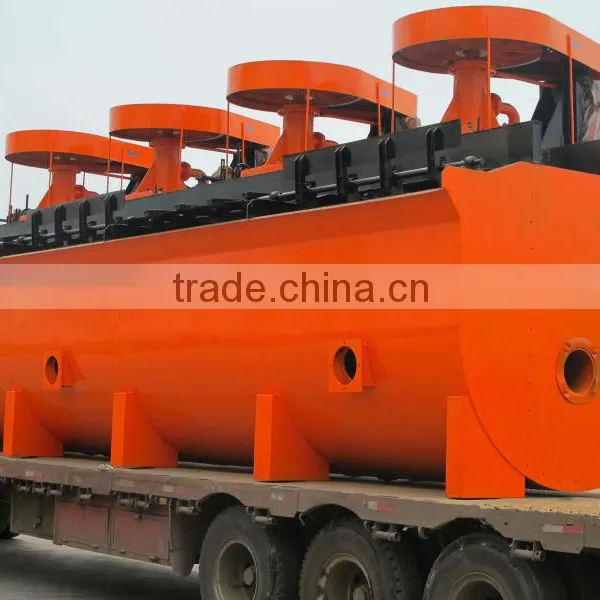

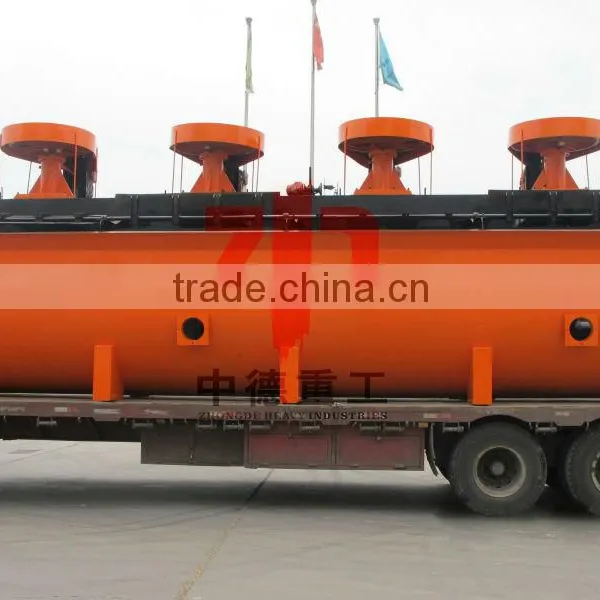

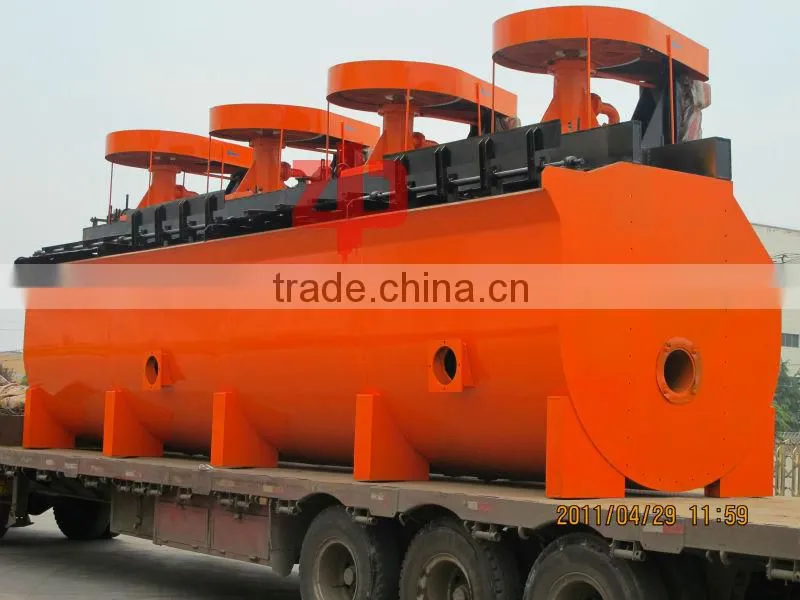

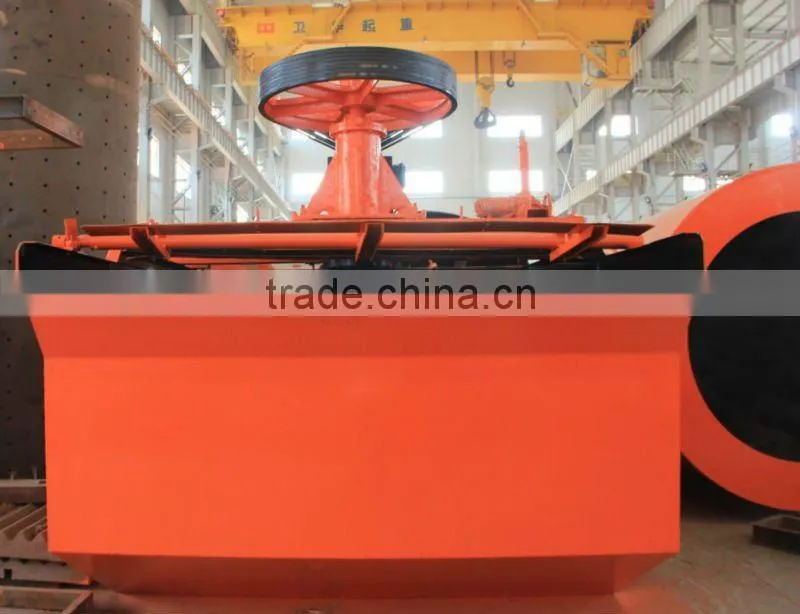

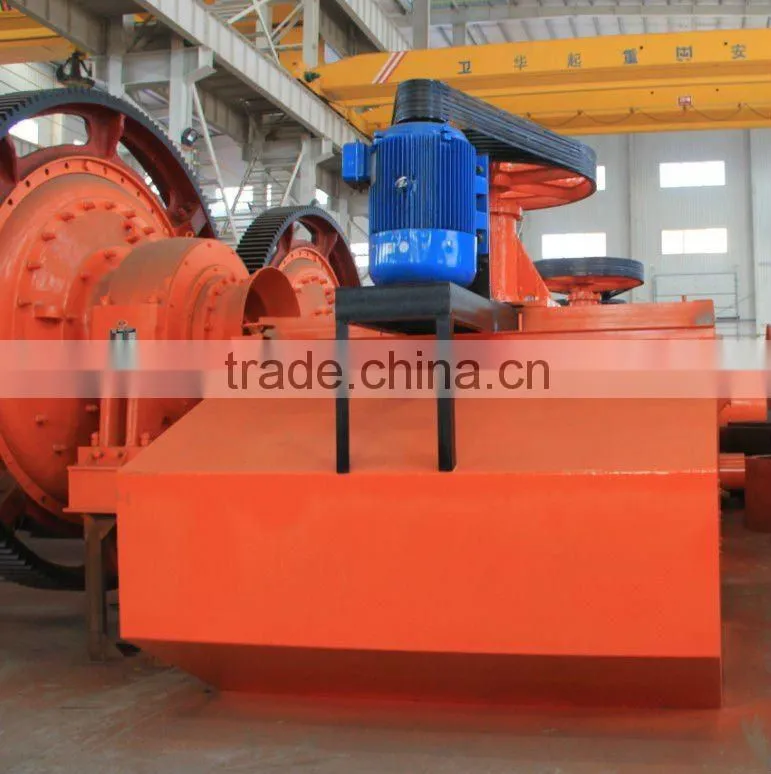

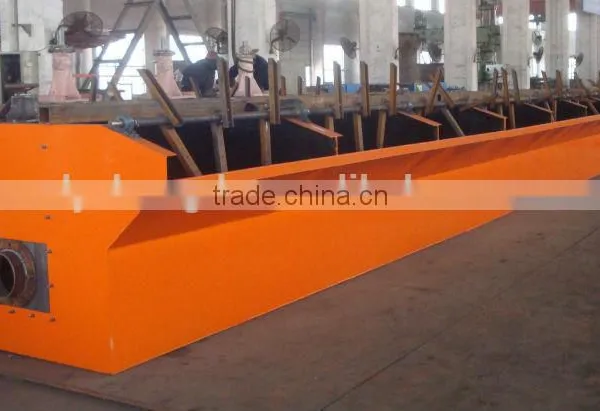

Pictures of flotation machine:
