Help CenterHG-PF2225 9-18*1W 20-63V t8 Tube Led Driver Constant Current
Related Products
-
High PF 18W T8 Led Driver/ Non-isolation t8 Led Power SupplyUS$ 1 - 1.5MOQ: 1 Piece -
9-18w t8 Led Tube Light Driver With Constant Current Mini SizeUS$ 1.00 - 1.00MOQ: 1000 Pieces
-
Isolated Led Tube Driver 18-25W Isolated Led Tube DriverUS$ 4.50 - 4.50MOQ: 2000 Pieces
-
18w T5/T8 LED Tube Driver With Constant CurrentUS$ 1.00 - 1.00MOQ: 2000 Pieces
-
0-10v Led Light Dimmable 600mA 20w Led DriverUS$ 6.00 - 6.00MOQ: 1000 Pieces
Specifications
1.Constant Current2.Size:200*15*10
3.Input Voltage:AC90-260V
4.Output:9-18w, 20-63v

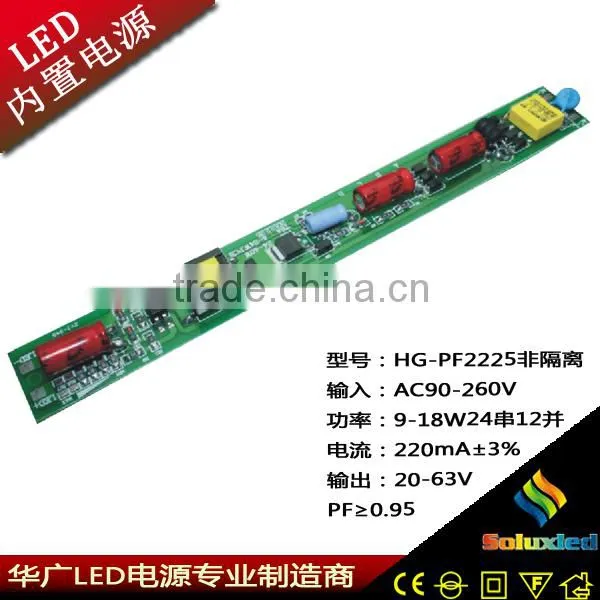

HG-PF2225 9-18*1W 20-63V T8 led driver constant current
Product Information
| Type | Constant Current |
| Input Voltage | AC90-260V |
| Output Voltage | 20-63V |
| Output Current | 220mA±3% |
| Output Watt | 9-18W |
| Output Ripple | 2Vp-p |
| Size | 200*15*10 |
| Efficiency | 85% |
| Frequency | 47-63Hz |
| Modulation | PMW |
| PF | ≥0.95 |
| Temperature | -25°C~+65°C |
| MOQ | 1 PCS |
| Insulation | Yes |
| Warranty | 2 Years |
Product Feature
² Constant current
² Without flicker
² Low heat, High efficiency
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis.
² Passing 100% aging test, high reliability
Application
Fluorescent lamp
Certificate
Quality Guarantee
ü 1.The warranty period is 2 years.
ü 2. If the products have any question during the time, we can fix it or change the same to you.
ü 3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Protection
² Short circuit / over current / over voltage/ Over load/ Over temperature
Storage
1.Keep Dry, don’t shock
2.Storage in below 35°C,humidity less than 75% environment
Tips
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3. Please refer to the instruction manual before use.
4. If not sure how to use the product, please contact us before use.
