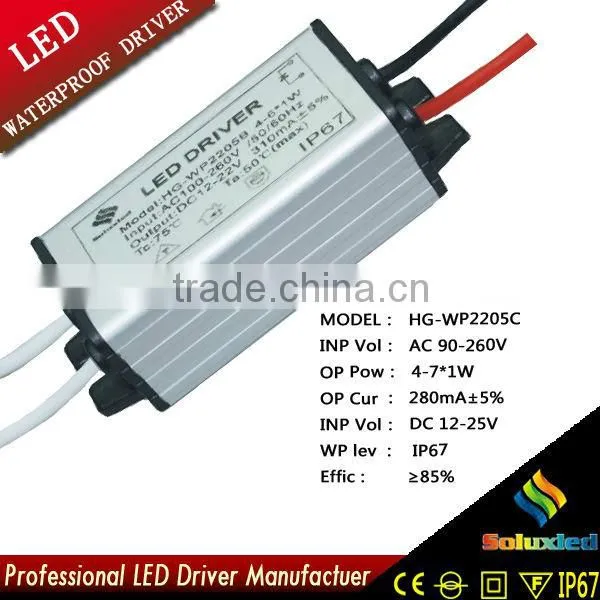

Help CenterHG-WP2205C LED Driver Lamps Driver 4-7*1W
Related Products
-
HG-WP2205B LED Driver Lamps Driver 4-6*1WUS$ 2 - 2.5MOQ: 1 Piece -
HG-WP-PF22100 LED Driver Lamps Driver 100W COBUS$ 18 - 20MOQ: 1 Piece
-
120W IP67 LED Driver With CE Certification and 3 Years Warranty, LED High Bay Light DriverUS$ 21 - 21.4MOQ: 100 Pieces
-
High Efficiency Waterproof LED Driver With Constant Current and CE Certification, LED Street Light DriverUS$ 18.4 - 18.8MOQ: 100 Pieces
-
COB70W IP67 LED Street Light Driver With Certification of CE and Rohs Quality ChoiceUS$ 13 - 13.4MOQ: 100 Pieces
Specifications
1.INPUT: AC 90-260V2.OUTPUT: 12-25V 280mA 4-7*1W
3.SIZE: 67*20*20MM
Brand: SOLUXLED Model: HG-WP2205C
Product Main Information:
| Type: | Constant Current |
| Input Voltage: | AC 90-260V |
| Size: | 67*20*20MM |
| Output Current: | 280mA±5% |
| Output Voltage: | DC 12-25V |
| Power: | 4-7*1W |
| PFC/PF: | ≤0.65 |
| Warranty: | 2 Years |
| Weight: | |
| Waterproof level: | IP67 |
| Temperature: | -25°C~+65°C |
| Output Ripple: | 2Vp-p |
| Efficiency: | 85% |
| Frequency: | 47-63Hz |
| Modulation: | PMW |
| MOQ: | 1PCS |
Isolation: |
Yes |
Application:
Spotlight, Ceiling light, Downlight, Panel lights, Wall wash light, Buried light,Ball steep light, Under water light...etc.
Certificate: CE and BV
Product Features:
² Constant current
² Without flicker
² Low heat, High efficiency
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis.
² Passing 100% aging test, high reliability
Protection:
² Short circuit / over current / over voltage/ Over load/ Over temperature
Product Picture:
Tips:
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3.Please refer to the instruction manual before use.
4. If not sure how to use the product,please contact us before use.
Quality guarantee:
ü 1.The warranty period is 2 years.
ü 2. If the product have any question during the time, we can fix it or change the same to you.
ü 3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Storage:
1.Keep Dry, don’t shock
2.Storage in below 35°C,humidity less than 75% environment
Notes:
1. Payment: L/C, T/T, Western Union, Money Gram, Ali-pay, etc.
2. Packing: Cartons
3. Shipping
4. If you have any question, or not find the product which you want, Please contact us.
Production process:
About us
Feedback
FAQ
Q: The picture is really beautiful, if I buy the items from you, are there same with the picture on your website?
A: Yes, dear. Please don't worry about it. All the pictures are 100% originally taken by our photos. We guarantee the items you received will be the same as the described.
Q: How do I pay for my purchase?
A: We accept the following payment methods: T/T, Western Union, L/C, PayPal.
Q: Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website. The international shipping cost long time, please know about this.
Q: What if I feel confusions with the products?
A: We guarantee to provide the best after-sell service to if you have any question of our products please don't hesitate to tell us.
