Specifications
1.Full aluminum shell with good radiating2.High efficiency
3.BV/CE certificate approved
4 PF>0.95
5 Factory Directly
|
Application: 0.5W led chip ( 10-100W LED Drivers for Flood light ) <30W,MOQ:1000pcs ,>30W,MOQ:500pcs | ||||||||||
| Model No. | Input Voltage | Output Power | Output Voltage | Output Current | Efficiency | Power Factor | Working Temperature | IP Rating | EX-Work Price(USD) | |
| HG-TG01-10W | AC90-260V | 10WCOB | DC9-12V | 400mA±5% | 78% | <0.65 | -20~+40°C | IP67 | $0.80 | |
| HG-TG01-20W | 20WCOB | DC25-38V | 300mA±5% | -20~+40°C | IP67 | $1.34 | ||||
| HG-TG01-30W | 30WCOB | 450mA±5% | -20~+40°C | IP67 | $1.50 | |||||
| HG-TG01-50W | 50WCOB | 600mA±5% | -20~+40°C | IP67 | $1.67 | |||||
| HG-TG01-70W | 70WCOB | 900mA±5% | -20~+40°C | IP67 | $3.00 | |||||
| HG-TG01-100W | 100WCOB | 1400mA±5% | -20~+40°C | IP67 | $4.67 | |||||
There is more series for 0.75W , 1W led chip LED Driver ...
Welcome to inquiry !

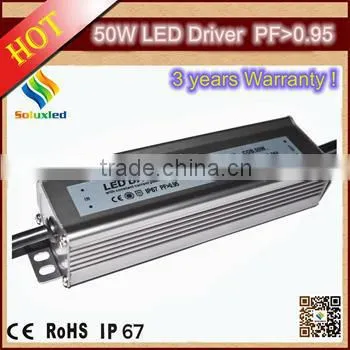

Product Model No: HG-WP-PF2250B
| Brand: | Soluxled | |
| Output Watts : | 50W | Output Current : | 1500mA±5% | Power Factor: | >0.95 | |||||
| Output Voltage : | DC25-36V | Input Voltage: | AC100-260V | Dimension: | 162*42*32mm | |||||
| Input Wire : | VDE Φ0.75mm^2*3( 300mm) | Output Wire: | VDE Φ0.75mm^2*2 (250mm) | |||||||
| Type: | Waterproof | Current accuracy: | 5(%) | Modulation mode: | PWM | |||||
| Load regulation: | 2(%) | Efficiency : | 88% | Voltage regulation: | 2(%) | |||||
| Protection | 1 Over current 2 Short circuit 3 Over voltage 4 Over temperature | |||||||||
| Product characteristics: |
| Constant current; without flicker; Low heat,high efficiency; Large selection of the parameter, long working-time; Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable performance. passing 100% aging test, high reliability; With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable. | ||||||||||
| Output characteristics: |
|
Type:Constant current,seclusion. Watt:50W Voltage:25-38V Current:1500mA±5% Ripple:2Vp-p | ||||||||||
| Operating temperature:-30°C ~ +65°C |
| Quality Guarantee: |
| 1 All the driver have automatic protection of overload, short circuit, temperature,etc. 2 Guarantee:1.The warranty period is 3 years.2.During the time ,if the product have any question ,we can change the same to you. 3 We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately. | ||||||||||
| Details Picture : |
| Ground wire Leakage Protection : |

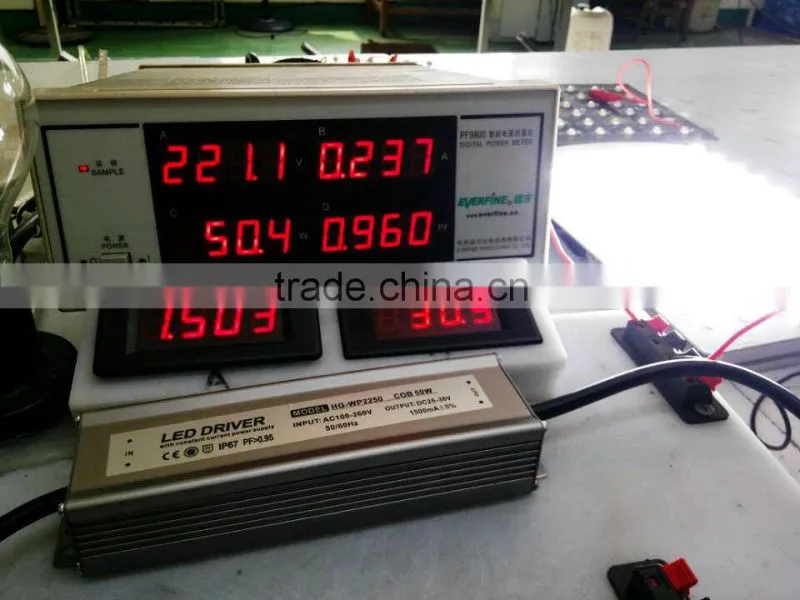

| Real testing Picture : |

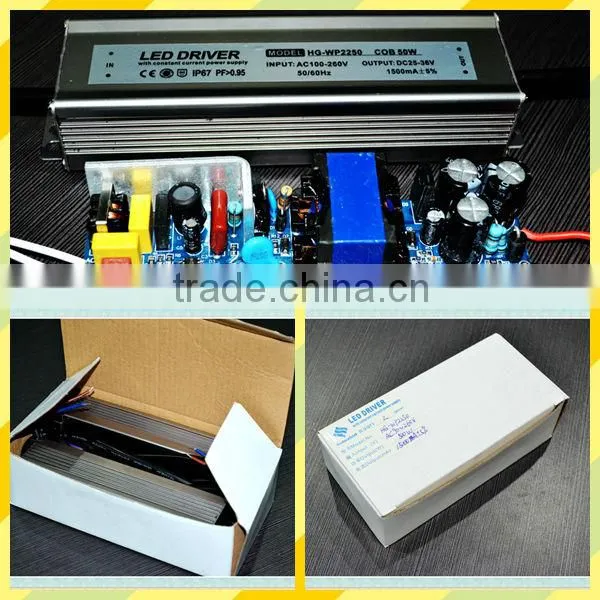

| Well Internal package : |
Outside Cartons :
Cartons Size : 35*23*25 cm , 50pcs/one carton
1 Can order samples for testing by yourself .
2 the current can be adjusted according to customer requirement (1.2 -1.5A )
3 OEM is welcome , we can printing your company Logo on the label .
Production process:
Certificate: CE and BV
About us:

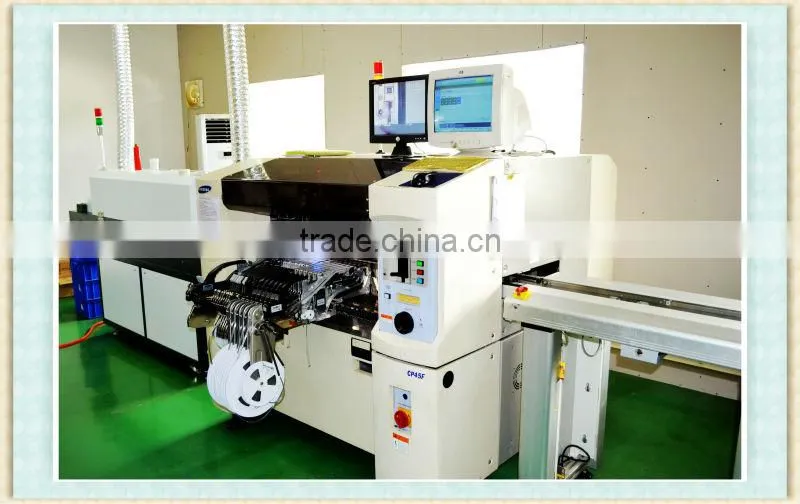

SMT Automated machines :
Custumers feedback:
The customers said good that is really good!!!

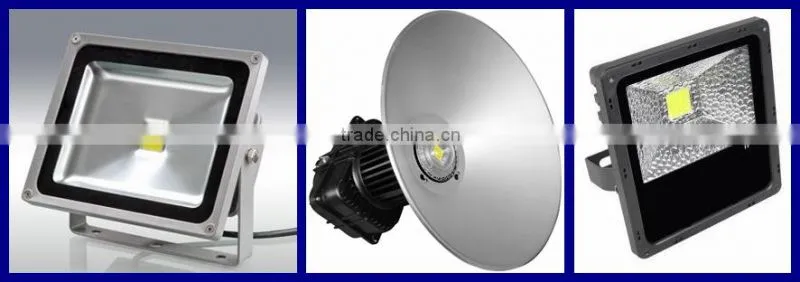

Application:
Q: The picture is really beautiful, if I buy the items from you, are there same with the picture on your website?
A: Yes, dear. Please don't worry about it. All the pictures are 100% originally taken by our photos. We guarantee the items you received will be the same as the described.
Q: How do I pay for my purchase?
A: We accept the following payment methods: T/T, Western Union, L/C, PayPal.
Q: Is there any tracking Number for my item?
A:Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website. The international shipping cost long time, please know about this.
Q: What if I feel confusions with the products?
A: We guarantee to provide the best after-sell service to if you have any question of our products please don't hesitate to tell us.
