Specifications
1.Small size, easy install;2.OEM is welcome!!!
Product Model: HG-WP2240
| LED Driver power supply , Waterproof IP67 for outdoor lamp etc. <3-48W> | |||||||||
| MODEL | HG-WP2232 | HG-WP2204 | HG-WP2205C | HG-WP2207B | HG-WP2213B | HG-WP2218 | HG-WP2240 | HG-WP-PF2250A | |
| OUTPUT | RATED POWER | 3W | 4-5W | 5-7W | 8-12W/3-4*3W | 12-18W/5-7*3W | 18-24W | 25-36W/(12-18)*3W | 20-24*3W |
| RATED CURRENT | 300mA | 280mA | 280mA | 280mA/600mA | 280mA/600mA | 280mA/ | 300mA/600mA | 600mA | |
| VOLTAGE RANGE | 8-12V | 12-18V | 15-24V | 24-42V/9-15V | 36-63V/15-25V | 54-85V | 70-135V/40-65V | 60-84V | |
| CURRENT TOLERANCE | 5% | ||||||||
| INPUT | VOLTAGE RANGE | AC90-260V | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.95 | |
| EFFICIENCY | 71% | 76.12% | 79% | 80% | 85.40% | 88.60% | 88.60% | 89.50% | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -30 ~ +55°C |
| QTHERS | DIMENSION(mm) | 65*25*20 | 65*25*20 | 61*15*10 | 61*15*10 | 97*39*35 | 100*30*20 | 108*37*28 | 161*32*28 |
Product characteristics:
² Constant current;² without flicker;² Low heat,high efficiency;² Large selection of the parameter, long working-time;
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stableperformance.
² passing 100% aging test, high reliability; ² With the production of Short circuit,broken circuit,Automatic overload protection.
Output characteristics:

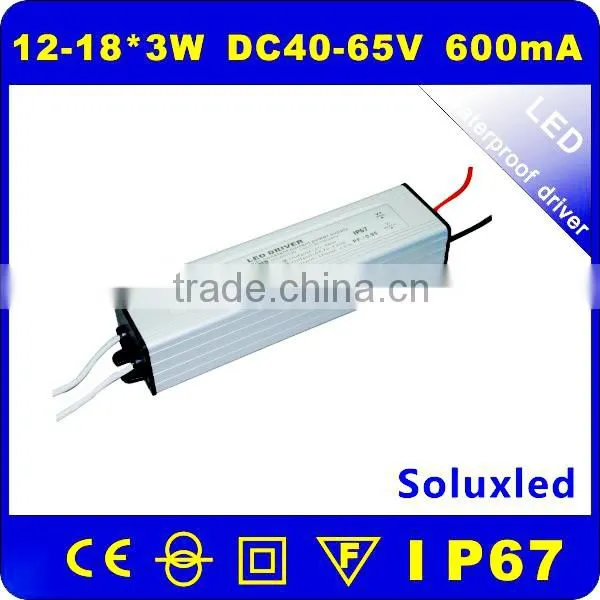

Ø type:Constant current,seclusion typeØ watt: 12-18*3WØ voltage: 40-65VØ current:600mAØ ripple:2Vp-pØ Output groups:1
Working temperature:-20°C ~ +40°C
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.
ü Guarantee:1.The warranty period is 1-2 years.2.During the time ,if the product have any question ,we can change the same to you.
Production process:
Certificate: CE and BV
About us:
Custumers feedback:
Application:
1 OEM is welcome !2 can be customized !
Packing:
cartons
FAQ
1 how to order ?
A: send me email or call me with trademanager or skype , tell me the quantity you need and the method you prefer to send , and i will send you proformer invoice for confirmation , after we recieve the payment , your order will be processing and send to you as agreement with each other .( skype : Tyrone-Soluxled ) .
2 how to pay ?
A : we accept LC ,TT, Paypal , western union ,Ali-pay etc .
