Specifications
20WCOB led driver1.Input:AC90-260V
2.Size:71*26*17mm
3.Factory direct
4.Warranty: 2 Years

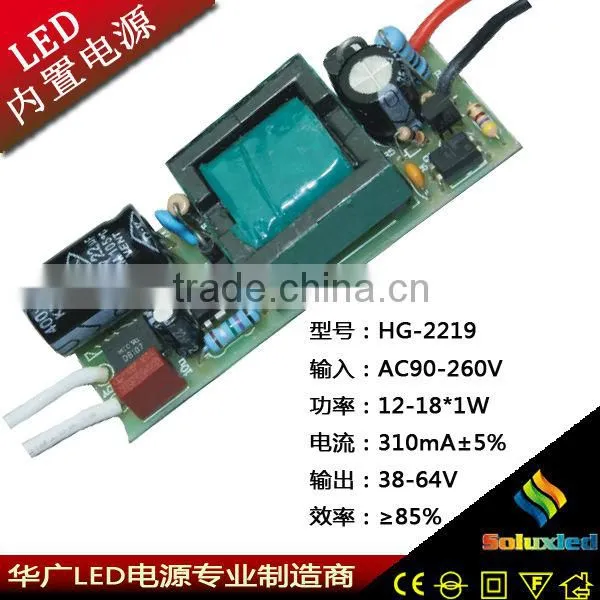

20WCOB led driver 25-36V 620mA switching power supply
Product information
| Input Voltage | AC90-260V |
| Output Voltage | 38-64V |
| Output Current | 310mA±5% |
| Output Watt | 12-18*1W |
| Input Voltage | AC90-260V |
| Output Voltage | 25-36V |
| Output Current | 620mA±5% |
| Output Watt | 20W COB |
| Type: | Constant Current |
| Size: | 71*26*17MM |
| PFC/PF: | ≤0.65 |
| Warranty: | 2 Years |
| Temperature: | -25°C~+65°C |
| Output Ripple: | 2Vp-p |
| Efficiency: | 85% |
| Frequency: | 47-63Hz |
| Modulation: | PMW |
| MOQ: | 1 pcs |
| Insulation: | Yes |
| Weight: |
Product Pictures
Product Feature
² Constant current
² Without flicker
² Low heat, High efficiency
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis.
² Passing 100% aging test, high reliability
Application
Spotlight, Ceiling light, Buried light,Ball steep light,GU10,E27,PAR20,PAR38,E40...etc.
Certificate
Quality Guarantee
ü 1.The warranty period is 2 years.
ü 2. If the product have any question during the time, we can fix it or change the same to you.
ü 3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Protection
Short circuit / over current / over voltage/ Over load/ Over temperature
Storage
1.Keep Dry, don’t shock
2.Storage in below 35°C,humidity less than 75% environment
Tips
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3.Please refer to the instruction manual before use.
4. If not sure how to use the product,please contact us before use.
