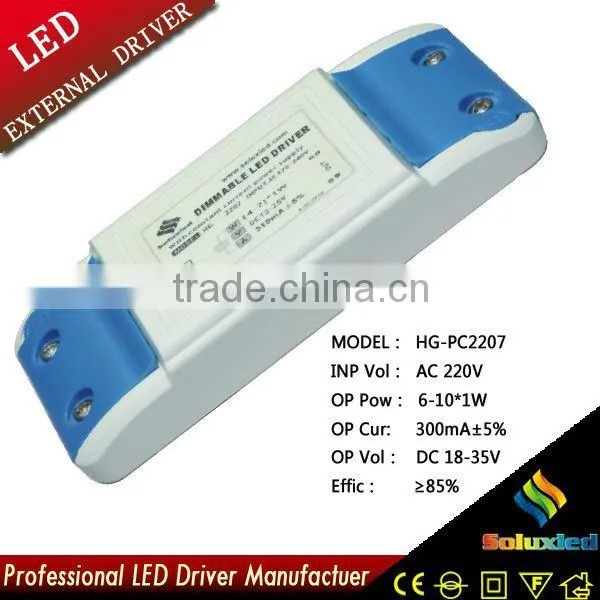

HG-PC2207 LED driver lamps driver 6-10*1W
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
- ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
- MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SOLUXLED | Model Number: | HG-PC2207 |
Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | Other, AC220V |
Output Voltage: | 18-35V | Output Frequency: | 50Hz | Output Current: | 300mA±5% |
Product Description
Specifications
1.INPUT: AC 220V2.OUTPUT: 18-35V 300mA 6-10*1W
3.SIZE: 88*39*24MM
Brand: SOLUXLED Model: HG-PC2207
Product Main Information:
Type: | Constant Current |
Input Voltage: | AC 220V |
Size: | 88*39*24MM |
Output Current: | 300mA±5% |
Output Voltage: | DC 18-35V |
Power: | 6-10*1W |
PFC/PF: | ≥0.65 |
Warranty: | 2 Years |
Weight: | |
Waterproof level: |
Temperature: | -25°C~+65°C |
Output Ripple: | 2Vp-p |
Efficiency: | 85% |
Frequency: | 47-63Hz |
Modulation: | PMW |
MOQ: | 1PCS |
Isolation: | Yes |
Application:
Spotlight, Downlight, Ceiling light, Panel lights, Wall wash light, Ball steep light...etc.
Certificate: CE and BV
Product Features:
² Constant current
² Without flicker
² Low heat, High efficiency
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis.
² Passing 100% aging test, high reliability
Protection:
² Short circuit / over current / over voltage/ Over load/ Over temperature
Product Picture:
Tips:
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3.Please refer to the instruction manual before use.
4. If not sure how to use the product,please contact us before use.
Quality guarantee:
ü 1.The warranty period is 2 years.
ü 2. If the product have any question during the time, we can fix it or change the same to you.
ü 3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Storage:
1.Keep Dry, don’t shock
2.Storage in below 35°C,humidity less than 75% environment
Notes:
1. Payment: L/C, T/T, Western Union, Money Gram, Ali-pay, etc.
2. Packing: Cartons
3. Shipping
4. If you have any question, or not find the product which you want, Please contact us.
Production process:
