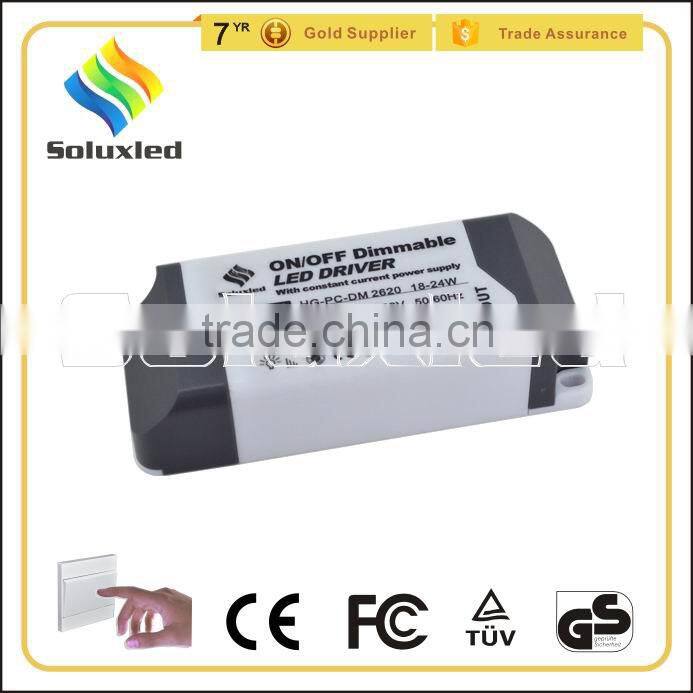

COB20W 600mA DC25-36V ON/OFF Dimmable LED Driver

COB20W 600mA DC25-36V ON/OFF Dimmable LED Driver photo-1
US$ 2.03 - 3.03 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Soluxled
Model Number:
HG-PC-DM2620
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen/Shenzhen/Guanzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Soluxled
Model Number HG-PC-DM2620
Output Power Other, COB20W
Output Type Single
Input Voltage Other, AC170-260V
Output Voltage DC25-36V
Output Frequency 50/60Hz
Output Current 300mA

LED Driver Descriptions:







Features:

High Quality

High efficiency

Long lifetime



Protections:

Short-circuit protection

Overload protection

Over-temperature protection

Over-voltage protection

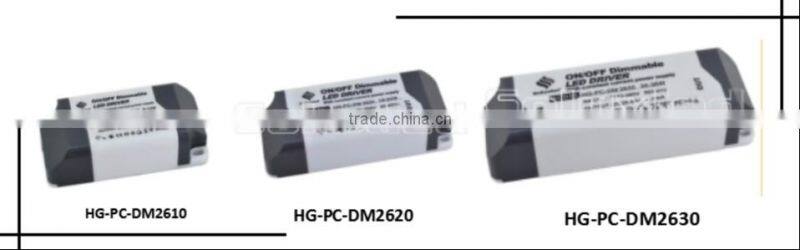

ModelSize(mm) PowerInput VoltageOutput VoltageOutput CurrentPower FactorUnit Price
HG-PC-DM2610 72*35*209-12W AC170-260V DC30-42V 300mA>0.8$1.25
HG-PC-DM2620 99*42*2212-18W AC170-260V DC40-63V 300mA>0.8$2.03

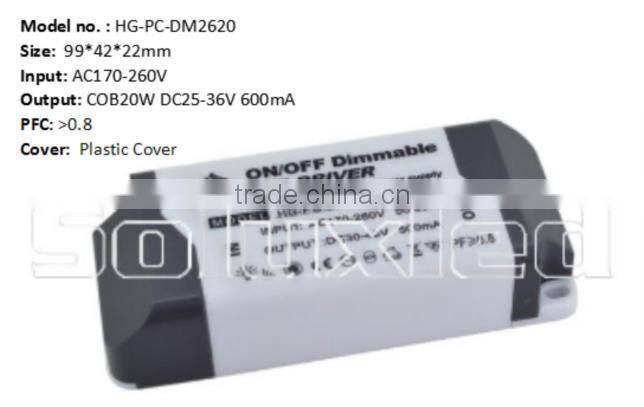

HG-PC-DM2620 99*42*22COB20WAC170-260V DC25-36V600mA>0.8$2.03
HG-PC-DM2630 125*42*2820-28WAC170-260V DC60-95V300mA>0.8$2.5
HG-PC-DM2630 125*42*2812-18*3WAC170-260VDC40-63V550mA>0.8$2.5



LED Driver Details:

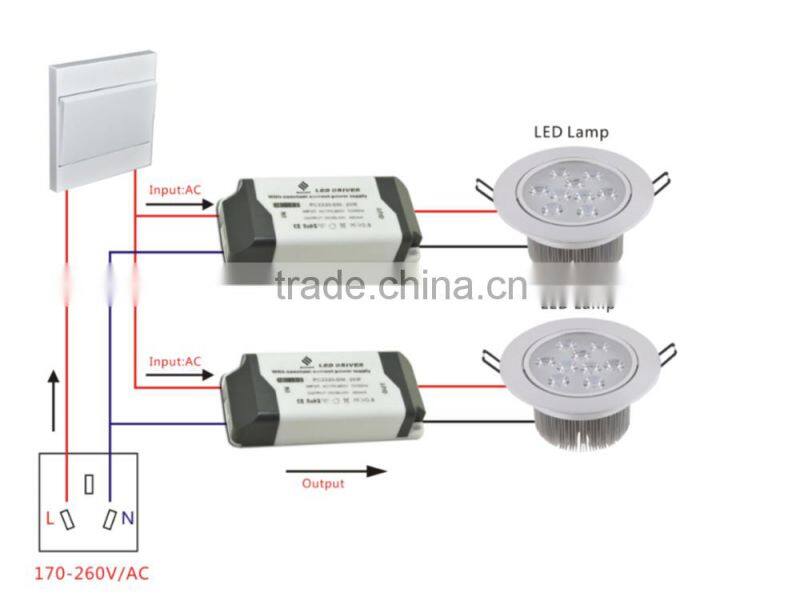

                         ON/OFF Dimmable LED Driver:







 Packing and Shipping:





Company Informations:







Our Service:



1. Small orders are accepted.



2. Customized design is available, OEM is welcomed.



3. Inquiry reply in 24 working hours.



4. High Quality with economic price.



5. Testing should be done before shipping to ensure they are in good conditions.



6. Tracking number will be provided to you once the consignment is shipped.



7. Life-long maintance service for SOLUXLED's product about AFTER -WARRANTY SERVICE .



FAQ:



NO.1 >>  ARE YOU A MANUFACTURER?

Yes, We have specialized in this field for 8 years with our own R&D department and production line.



NO.2 >> WHAT IS YOUR SUPPLY CAPACITY ?

We can produce 300,000pcs per month.



NO.3 >> HOW DO YOU CONTROL THE QUALITY ?

All components in our LED Lights are from famous brand company. Besides, our quality inspector is responsible for not only the incoming material inspections but also products during the production. And test should be done before shipping.



NO.4 >> CAN YOU SEND US SAMPLES ?

We can send you samples according to your order requirements.



NO.5>> WHAT IS YOUR DELIVERY TIME ?

Items in stock could be delivered in 24 hours.

Normal products: 5-7 days.

Customized products : 10-20 days.



NO.6 >> WHAT IS YOUR PAYMENT TERM ?



NO.7 >> HOW MANY YEARS WARRANTY FOR YOUR PRODCUTS?

Normally we can provide 3 years' warranty, as for OEM we can provide 5 years.



NO.8 >>  ABOUT EXCHANGE & WARRANTY POLICY

Quality: 0.5%  more or less is allowed for electronic products.

For problematic items more then 1% , we will change new items or replace it for you.

Please send back the problematic items to us for test, and then provide you solutions accordingly depending to the test report.
