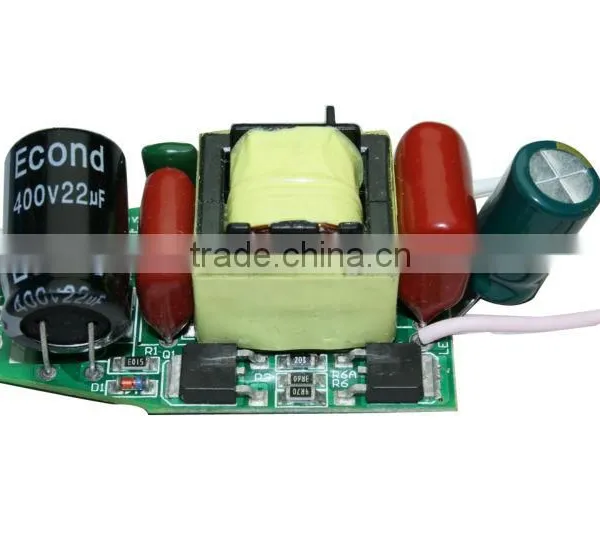

9-15w High Power Diammable Internal Led Driver

9-15w High Power Diammable Internal Led Driver thumbnail-1
9-15w High Power Diammable Internal Led Driver photo-1
US$ 5.6 - 5.65 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
soluxled
Model Number:
HG-DM2215
Contact Supplier Request Quote Chat Now
Jianghai Soluxled Lighting Electron Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name soluxled
Model Number HG-DM2215
Output Power Other, 9-15W
Output Type Single
Size 55*20*17
Weight 30g
Input Voltage 85-265VAC
Output Voltage 25-53V
Type DC/AC Inverters
Output Frequency 50/60HZ
Output Current 310mA±5%

Specifications

1.without noise, flicker-free;
2.Philips imported IC;
3.samples pay by Aliexpress escrow.

Product code: HG-DM2215

1

Output Watt

9-15w

Output current

300mA±5%

Output voltage

25-54v

Input  voltage

AC100-250v



Brand



SOLUXLED

type



Open  frame driver

prower Factor



PF<0.65

efficiency



88%

size



22*14.5*16mm

Modulation mode



Pulse Width Modulation(PWM)

load regulation



2(%)

voltage regulation



2(%)

Output

current

accuracy



5(%)

protection



Short circuit

broken circuit

Automatic overload protection



Application:

Panel light, street light, floodlight, wall-washer light, underground lamp, tunnel lamp, spotlight, PAR light, etc.



Packing:

9-15w high power diammable internal led driver



Product characteristics:

² Constant current;

² without flicker;

² Low heat,high efficiency;

² Large selection of the parameter, long working-time;

² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable performance.

² passing 100% aging test, high reliability;

² With the production of Short circuit,broken circuit,Automatic overload protection,more safety  more  stable.



Output characteristics:

Ø type:Constant current,seclusion type

Ø watt:3*1w

Ø voltage:DC2-12v

Ø current:310mA

Ø ripple:2Vp-p

Ø Output groups:1



Working temperature:-30°C ~ +65°C



Certification:CQC , CE



Quality guarantee:

1.The warranty period is 1-2 years.,

2.During the time ,if the product have any question ,we can change the same to you.

ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.



Notes:

u If you want a waterproof driver,the size and price could be negotiated. The glue is the safe silica  gel(hight heat dissipation. The thermal conductivity is 0.78/M.K)

u Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.,



9-15w high power diammable internal led driver
