12-25V Dimmable led power supply /led driver open frame 4-7*1w
Product Information
| Type | Constant Current |
| Input Voltage | AC220V |
| Output Voltage | 12-25V |
| Output Current | 270mA±5% |
| Output Watt | 4-7*1W |
| Output Ripple | 2Vp-p |
| Temperature | -25°C~+65°C |
| Modulation | PMW |
| MOQ | 1 PCS |
| Insulation | Yes |
| Size | 44*20*14MM |
| Efficiency | 85% |
| Frequency | 47-63Hz |
| Warranty | 2 Years |

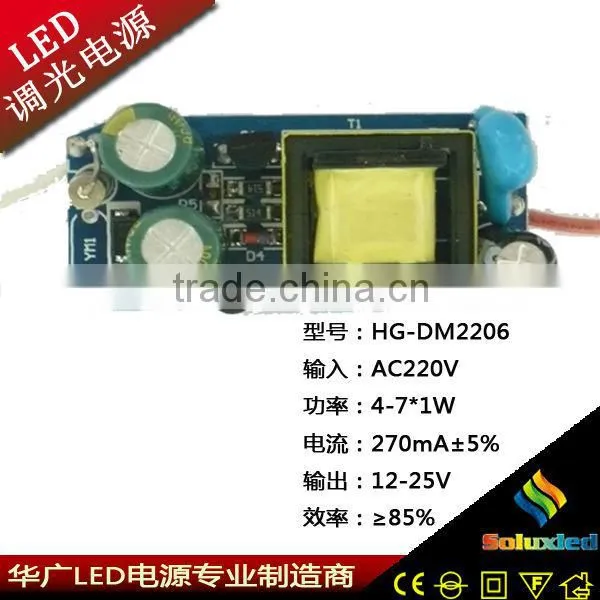

Product Picture
Product Feature
² Constant current
² Without flicker
² Low heat, High efficiency
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis.
² Passing 100% aging test, high reliability
Application
Dimmer GU10,E27,E14,PAR20,PAR30,PAR38,E40,Spotlight, Ceiling light...etc.
Certificate
Quality Guarantee
ü 1.The warranty period is 2 years.
ü 2. If the products have any question during the time, we can fix it or change the same to you.
ü 3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Protection
² Short circuit / over current / over voltage/ Over load/ Over temperature
Storage
1.Keep Dry, don’t shock
2.Storage in below 35°C,humidity less than 75% environment
Tips
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3. Please refer to the instruction manual before use.
4. If not sure how to use the product, please contact us before use.
