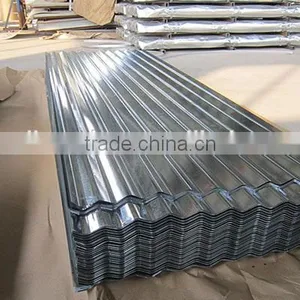

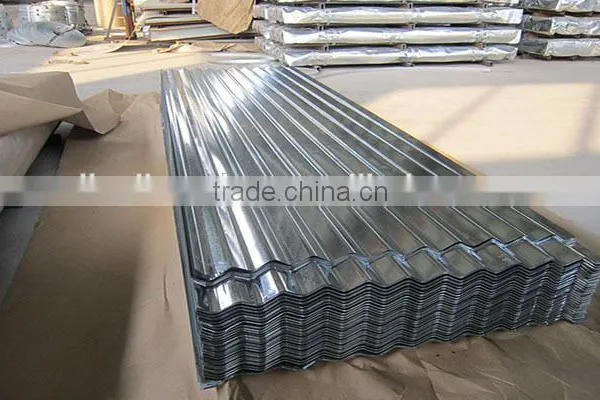

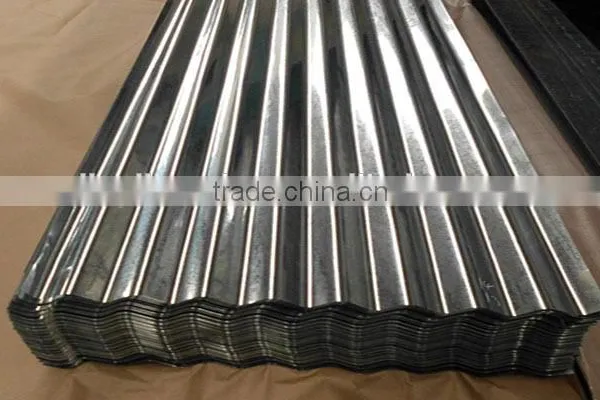

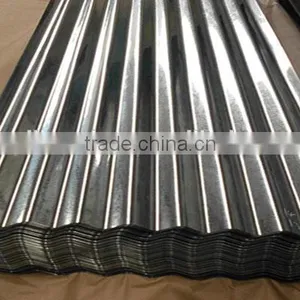

(0.13mm-1.5mm) Color Coated Galvanized Steel Sheets/Corrugated Steel Sheet

1) Standard: JIS G3312 CGCC & CGLCC, equivalent to ASTM A755M, EN10169

2) Grade: CGCC and CGLCC

3) Hardness: Both soft and full hard are available

4) Surface finish: With or without protect film covered

5) Thickness range: 0.16-1.20mm

6) Coil width: 600-1250mm, general 914mm, 1000mm, 1220mm and 1250mm.

7) Shape: Both sheet and coil are available

8) Coating: Z40 to Z275, or AZ30 to AZ150

9) Paint thickness: Top 5 um + (10-20) um polyester, Reverse 5-10 um Epoxy

10) Color: any RAL code, or according to customer's sample

11) Coil weight: 3-6 tons, or according to customer's requirements

12) Max loading in one 20ft container: 25 tons generally

13) MOQ: 25 tons for each thickness or color;

14) Delivery time: 2 weeks or one month generally.

15) Applications: Widely used for roof tiles, outer walls, ovens, explosive-proof steel, electrically
controlled cabinets, and industrial freezers in the residential and industrial buildings.

1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.

2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.

3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.

4) Versatility: can be used in the various areas.

  Process of Prepainted Galvanized Steel Coil:Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel

our factory can produce and provide many metal building mateiral and prefabricated steel structure. the following metal steel products are we can offer: zinc or aluzinc coated steel sheet/coil, Prepainted ppgi/ppgl steel sheet/steel coil, corrugated galvanized or galvalume steel sheet, EPS/Rockwool,glasswool sandwich wall/roof panel, EPS clean room panel,C,Z purlin and composite galvanized steel decking, prefabricated house or steel structure, also other accessories of metal building material.

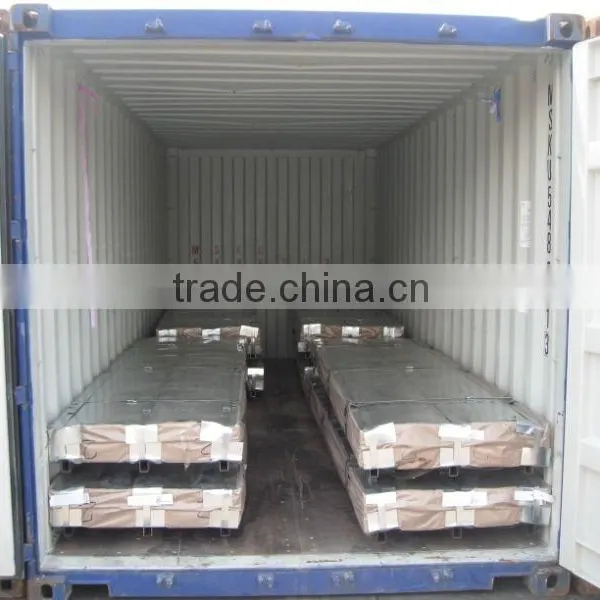

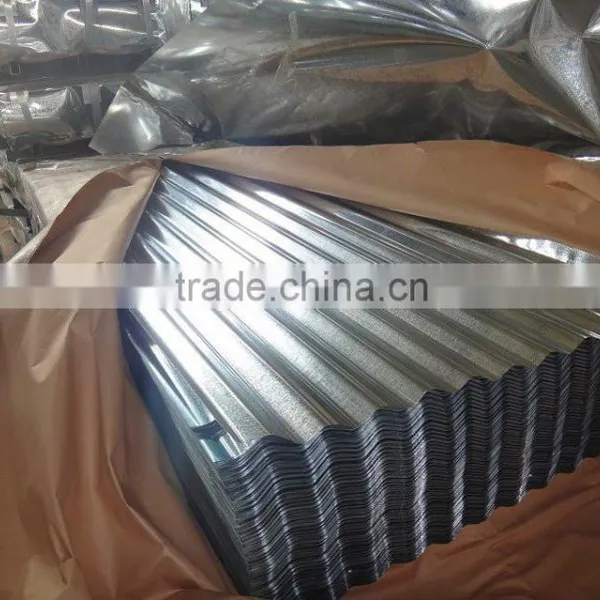

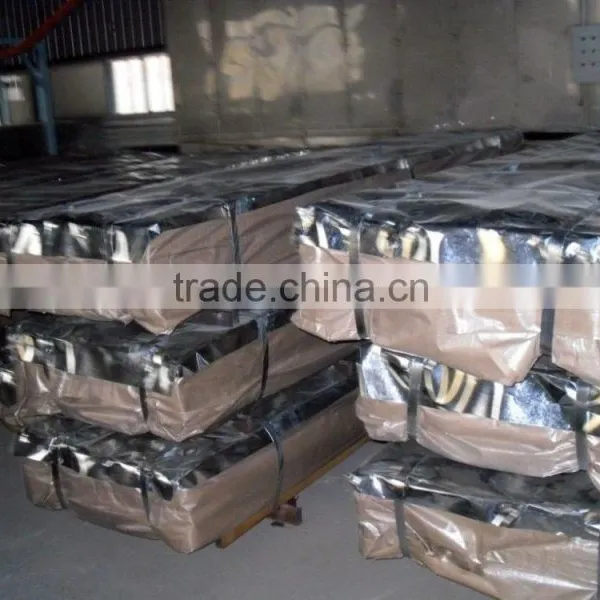

standard export sea worthy packing:

water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel & galvanized metal fluted rings on inner

or special packing as you required .

1) How many tons could be loaded in one 20GP container?

Normally 25 tons to 27 tons (Net Weight).

2) How long the goods can be shipped?

Within 20 days after T/T deposit or Original L/C received.

3) What is the available payment term?

30%/70% T/T, 100% Irrevocable L/C at sight

4) How can the quality assured?

We gain solid reputation from customers all over the world.

Also, SGS, BV or any other third inspection could be done before shipment in your requests.

5) How could I trust your company?

Our company has been in this industry for more than 13 years in International Market.

6) Do you produce Galvalume (Aluzinc) or Prepainted Galvanized Steel (PPGI)?

Yes we have two production lines for Galvanized and one for Galvalume

    We will stay in line for above 14 hours, so any questions about the products we can reply in detail, when off line, please send us emails, we will reply ASAP.
