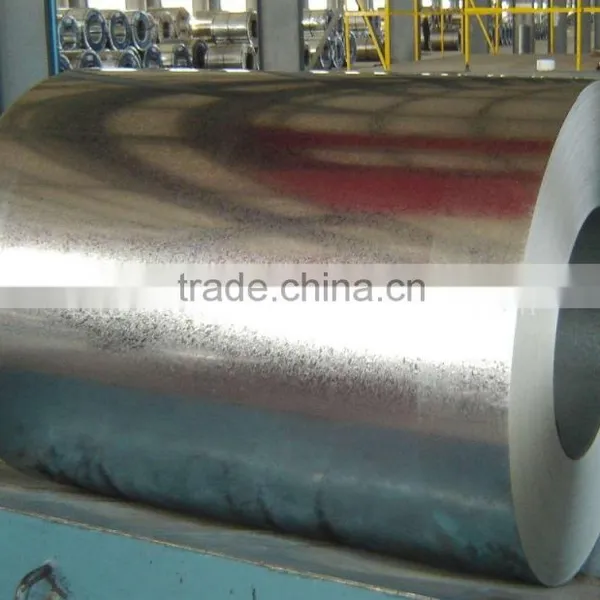

Ppgi Coil / Steel Coil In Steel Coil/ Pre Painted Galvanized Iron Sheet
| Name | Prepainted Galvanized Steel Coil |
| Type of Substrate |
Hot Dip Galvanized, Galvalume, Zinc Alloy, Cold Rolled Steel Aluminium |
| Thickness | 0.13mm-1.2mm |
| Width | 600~1250mm |
| Coating Types | Top Paint: PVDF, HDP, SMP, PE, PU |
| Primer Paint: Polyerethane, Epoxy, PE | |
| Back Paint: Epoxy, Modified Polyester | |
| Type of coating process | Front: Double Coated & Double Drying |
|
Back: Double Coated & Double Drying, Single Coated & Double Drying | |
| Coating | Top Paint: 10~25 micron( normal 10~12micron) |
| Back Paint: 5~12micron(normal 5~7micron) | |
| Tolerance | thickness+/-0.01mm |
| Coil ID | 508/610mm |
| Coil Weight | 3~5Tons |
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet |
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings |
1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.
2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.
3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.
4) Versatility: can be used in the various areas.
Our steel is purchase from the domestic large steel factory , also the zinc is purchase from large factory .
Process of Prepainted Galvanized Steel Coil:Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel
our factory can produce and provide many metal building mateiral and prefabricated steel structure. the following metal steel products are we can offer: zinc or aluzinc coated steel sheet/coil, Prepainted ppgi/ppgl steel sheet/steel coil, corrugated galvanized or galvalume steel sheet, EPS/Rockwool,glasswool sandwich wall/roof panel, EPS clean room panel,C,Z purlin and composite galvanized steel decking, prefabricated house or steel structure, also other accessories of metal building material.
standard export sea worthy packing:
water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel & galvanized metal fluted rings on inner
or special packing as you required .
1) How many tons could be loaded in one 20GP container?
Normally 25 tons to 27 tons (Net Weight).
2) How long the goods can be shipped?
Within 20 days after T/T deposit or Original L/C received.
3) What is the available payment term?
30%/70% T/T, 100% Irrevocable L/C at sight
4) How can the quality assured?
We gain solid reputation from customers all over the world.
Also, SGS, BV or any other third inspection could be done before shipment in your requests.
5) How could I trust your company?
Our company has been in this industry for more than 13 years in International Market.
6) Do you produce Galvalume (Aluzinc) or Prepainted Galvanized Steel (PPGI)?
Yes we have two production lines for Galvanized and one for Galvalume
We will stay in line for above 14 hours, so any questions about the products we can reply in detail, when off line, please send us emails, we will reply ASAP.
