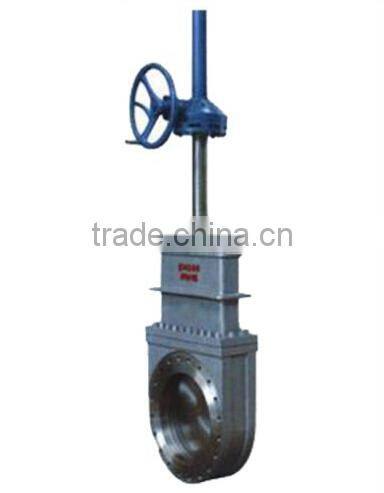

Help CenterCast Steel Light Type Flat Gate Valve
Related Products
-
Cast Steel Light Type Plate Gate ValveUS$ 1 - 999MOQ: 1 Piece -
Stainless Steel Light Type Plate Gate ValveUS$ 1 - 999MOQ: 1 Piece
-
Manufacturer Light Type Plate Gate ValveUS$ 1 - 999MOQ: 1 Piece
-
Manufacturer Corrugated Pipe Flat Gate ValveUS$ 1 - 999MOQ: 1 Piece
-
Carbon Steel Corrugated Pipe Plate Gate ValveUS$ 1 - 999MOQ: 1 Piece
light type flat gate valve is suitable for natural gas, petroleum, chemical, environmental protection, urban pipelines, gas pipelines and other pipelines, the venting system and a vapor storage device used for hoisting equipment. Applies to natural gas extraction and purification of long-distance pipelines.
Flat gate valve features:
1. The seat should be elastic sealing structure has preload, the upstream and downstream sealing seat while sealing structure. Between the valve seat and the seal face is always sealed.
2. The seat has a self-cleaning function, and turn on or off the course without direct airflow flushing valve. Seat lubrication should have made, do not wear material.
3. The valve actuator failure will not affect other parts of the valve, repair and replacement work can be performed without removing the valve.
(1) Yoke Sleeve - aluminum-bronze yoke sleeve configuration needle thrust bearings, to minimize operating torque.
(2) the stem - thread length until the bracket; pin and spot; with stability.
(3) pressure seal - a simple structure, configuration, staging buckles and silver-plated low carbon steel washers, help dismantle and achieve best bonnet seal.
(4) the seat ring - welded seat ring perpendicular to the flow channel, and easy to maintain.
(5) implementing agencies - these valves can be electric, hydraulic or pneumatic actuator. DN300 following configuration standard manual handle, DN350 above configuration helical gears operating mechanism.
(6) Yoke - fully fabricated yoke through seismic testing, ease of maintenance and installation of the actuator.
(7) gland - two, self-regulating gland, to avoid being ejected.
(8) as a whole back seat - hard surface, the longest life.
(9) valve - a spring-loaded valve capable of self-regulation and reduce actuator torque demand.
(10) Overall stopper - the whole cast bracket stop device, positioning the valve assembly of the bracket, making the seat more stable and reliable.
Company Information:
Our company mainly produces and sells stainless steel sanitary grade and industrial gradeFerrule Joint, Elbow, Tee, Cross, Reducer, Clamps, Sight glass, Ball valves, Butterfly valves, Globe valves, Check valves, Gate valves, Flanges and other products, according to GB , ANSI, JIS, DIN and other standards for production. Its products are widely used in pharmaceutical, food, biotechnology, natural gas, petrochemical, water treatment, construction and other industries.
Our strengths are as follows:
1. Cost: We are the original producer (not trader) who is able to provide the most competitive cost of the Stainless Steel Parts.
2. Quality: Our products are exported to Japan with competitive quality fit for food industry, fine chemical industry, medical industry and other various quality demands.
3. Service: we provide OEM, ODM service with any new model design of the Stainless Steel Parts.
BEIJING FULLS INDUSTRY CO.,LTD
Attn.: Alicia Fu
Tel: +86-13718838881
TradeManager:fullsindustry
Skype: Alicia.Fu.China
