Product Application

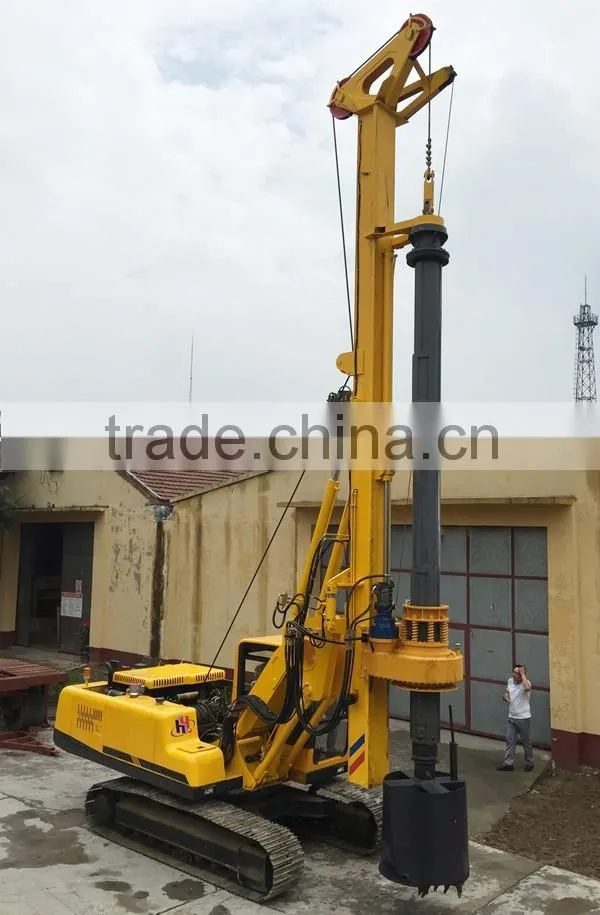

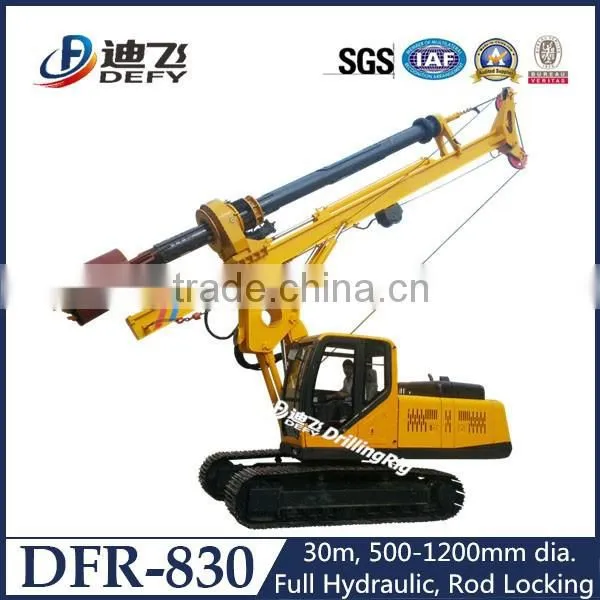

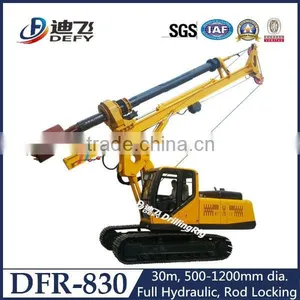

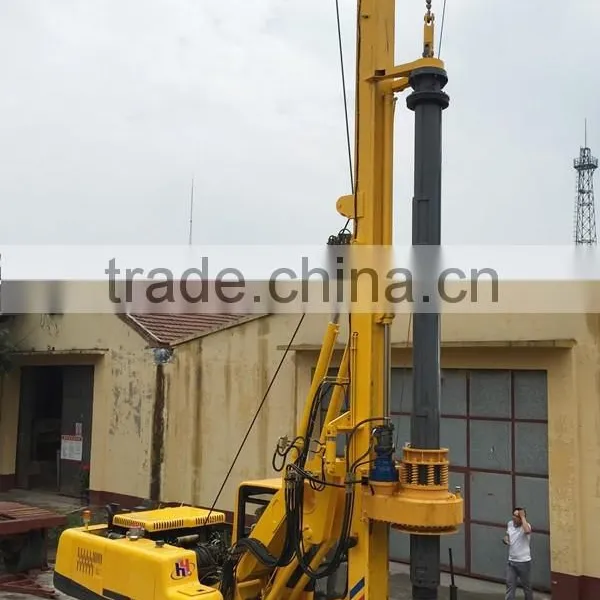

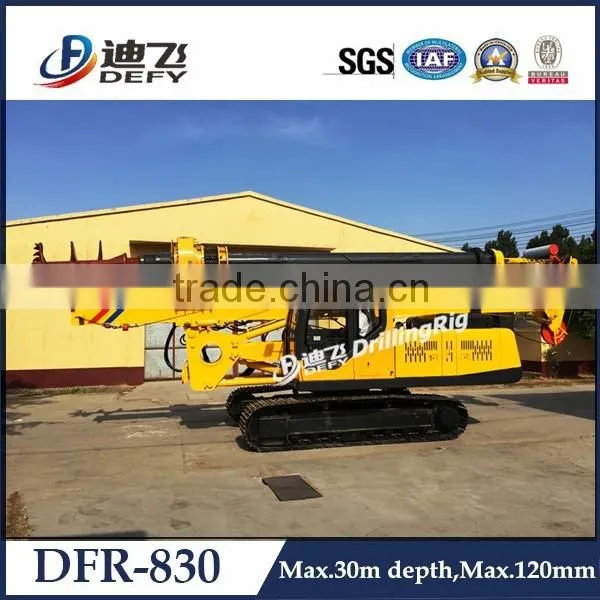

DFR-830 pile driving machine is designed by DEFY factory based on former DFR-12C. It is a kind of full hydraulic pile driver with rod locking design. More safe and convenient to use.
Main Features
1.Advanced mobile type, quick to transfer from transportation to working mode.
2. High safety standard, satisfying dynamic and static stability requirements, ensuring safe working.
3. Optimized luffing mechanism, working stable, easy to maintenance.
4. Innovative drilling bucket depth measurement system, showing a higher accuracy than conventional pile driver.
5. Bottoming protection and priority control function of main winch, making it easier to operate.
6. Multi-stage of vibration-proof power head, ensuring it working more stable.
Structure |
Item |
DFR-830 |
Engine |
Brand |
Cummins |
Model |
6BTAA5.9-C |
|
Rated Power |
132 KW/2200r/min |
|
Type |
Turbocharged, air to air intercooler |
|
Maximum torque |
770N.M |
|
Drilling diameter |
mm |
500-1200 |
Drilling depth |
m |
30(four section lock lever) |
Hydraulic system |
Maximum working pressure of the main pump |
Kawasaki 25Mpa |
The maximum flow rate of the main pump |
Kawasaki 112*2 |
|
Power head |
Maximum torque |
80KN.M(XCMG Made) |
Rotating speed |
6-35 |
|
High-speed rejection soil |
||
Pressurization system |
Maximum pressure force |
100KN |
Maximum lifting force |
10KN |
|
Maximum stroke |
2500mm |
|
Main winch |
Maximum lifting force |
150KN/m |
Maximum lifting speed |
45m/min |
|
Auxiliary winch |
Maximum lifting force |
20KN/m |
Maximum lifting speed |
50m/min |
|
Mast |
Inclination (left and right) |
+-4 degree |
Inclination (Front and back) |
5 degree |
|
Chassis |
Maximum travel speed |
2.8km/h |
Maximum gradeability |
30 degree |
|
Track width |
600mm |
|
Telescopic Crawler |
Optional |
|
Chassis length |
3900mm |
|
Total Weight |
Ton |
28 |
Transportation dimension |
L*W*H |
11400*2600*3400mm |
Working dimension |
L*W*H |
7500*2600*12500mm |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Established in 1970s, Zhengzhou Defy has growned into one leading drilling rig manufacturer in China, specilizing in drilling rig technology R&D, manufacturing, etc. We spark on conventional rotary drilling rig, new pneumatic drilling rig and are inventing another drilling rig with performance same as pneumatic one, but with much less investment for users.

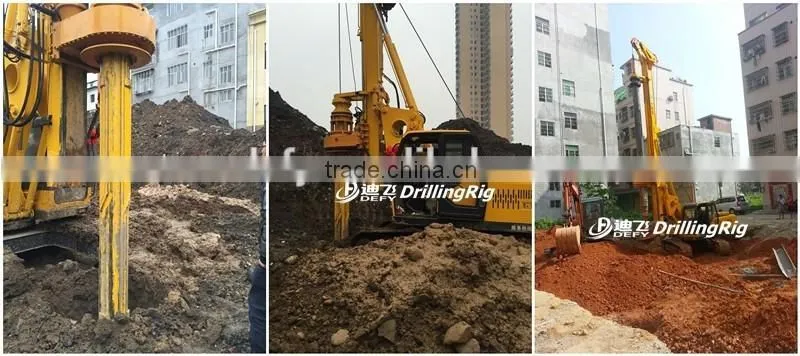

Our drilling rigs are widely used for water well drilling, irrigation well drilling, geothermal hole drilling, mining blast hole drilling, construction pile work drilling, air-conditioner hole drilling, etc.
DEFY Brand drilling rigs have been widely exported to Chile, Russia, Australia, Malaysia, Kenya, Tansanzia, Zambia, South America, Peru, Zimbabwe, etc.
Every customer is very welcomed to our factory for visiting driling rig, talking onsite and details. ^_^
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, DEFY experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.
