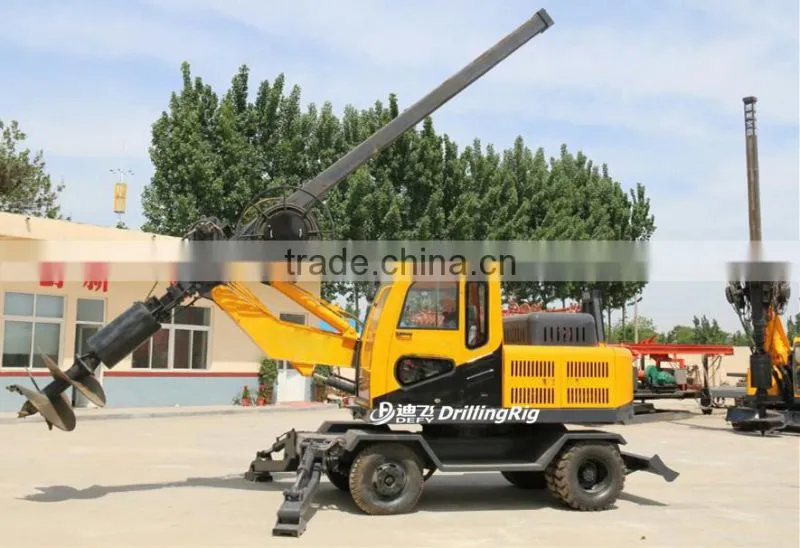

Help Center15m DFR-10W Hydraulic Static Used Pile Driver for Excavator Machine for Sale
Related Products
-
20m DFR-12C Hydraulic Static Used Pile Driver for Excavator Machine for SaleUS$ 30,000 - 50,000MOQ: 1 Set -
DFR-830 30m Full Hydraulic Auger Drilling Equipment for SaleUS$ 110,000 - 120,000MOQ: 1 Set
-
15m DFR-315 Hydraulic Static Used Pile Driver for Excavator Machine FOR SaleUS$ 60,000 - 75,000MOQ: 1 Set
-
20m DFR-520 Hydraulic Static Used Pile Driver Machine for SaleUS$ 75,000 - 90,000MOQ: 1 Set
-
25m DFR-625 Hydraulic Static Used Pile Driver for Excavator Machine PriceUS$ 95,000 - 105,000MOQ: 1 Set

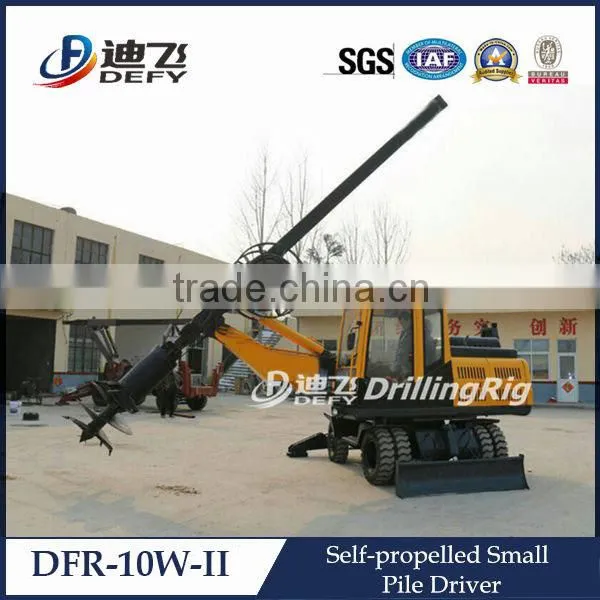

DFR-10W screw pile driver machine is national patent product, which is widely applied for municipal construction, roads and bridges construction, high-rise buildings and other foundation construction project. It features latest design, advanced technology, hydraulic working system, and low failure rate. This rotary drilling rig has low gravity center, steady operation, more safe.
1. High efficiency: Advanced craft,Circulation drilling, don’t increase the load when drilling deeper.
Hydraulic power head drives to work with stable operation, large torque, high efficiency.
2. Adapt to various terrain and different geological conditions,apply to a variety of construction requirements.
3. Compact body design, flexible operation, quickly transitions is convenient for your works.
Two kinds of wheel-mounted and crawler-mounted models for your choice.
4. Safety and reliability, the models are on the basis of excavator technology, facilitate accessories maintenance is easy.
Model |
DFR-10W |
|
Drilling depth |
15 m |
|
Drilling diameter |
φ600-1000 mm |
|
Rotation Angle |
180°/360° |
|
Hydraulic system pressure |
16 MPA |
|
Walking way |
wheels |
|
Diesel engine |
4108 turbocharging |
|
Continuous torque when drilling |
9000 N.M |
|
Max. torque |
11000 N.M |
|
Rotation speed |
0/30r/min |
|
Working mode |
Gravity drilling or pressure drilling |
|
|
Dimension (L*W*H) |
Transport |
7200*2200 *3200mm |
Working |
7200*2200*8400 |
|
Weight |
5~8 tons |
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Established in 1970s, Zhengzhou Defy has growned into one leading drilling rig manufacturer in China, specilizing in drilling rig technology R&D, manufacturing, etc. We spark on conventional rotary drilling rig, new pneumatic drilling rig and are inventing another drilling rig with performance same as pneumatic one, but with much less investment for users.
Our drilling rigs are widely used for water well drilling, irrigation well drilling, geothermal hole drilling, mining blast hole drilling, construction pile work drilling, air-conditioner hole drilling, etc.
DEFY Brand drilling rigs have been widely exported to Chile, Russia, Australia, Malaysia, Kenya, Tansanzia, Zambia, South America, Peru, Zimbabwe, etc.
Every customer is very welcomed to our factory for visiting driling rig, talking onsite and details. ^_^
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, DEFY experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.
