DEFY BRAND/ DFHD-68 68 tons Thrust/Pullback Force HDD Machine
DFHD-68 Horizontal Directional Drilling Rig HDD Machine is with full hydraulic drive, double-speed track chassis;
double low-speed motors drive power head dual-speed drilling, structure is simple but advanced;
rack and pinion drive system, stable and reliable movement; the mast can adjust the opening angle in 8° -16°
range, innovative and unique mobile device in front and back; low gravity, good stability; equipped with an
auxiliary crane; cab is equipped with air-conditioner, providing a comfortable operating environment.
The main components are using world famous brand, such as diesel engine, hydraulic pumps, valves, motors,
and reducer. Low-emission diesel engine, professional noise reduction design to make the rig more suitable
for urban construction. The rig control technology with leading international standards, so that
no-load condition power drill consumption to a minimum.
Specification:
HDD Machine | |
Power |
WeiChai243kW / Cummins 239KW |
Feeding/pulling system |
680/680kN |
Roted rotary torque |
27000N.m(45r/min) |
13500N.m(90r/min) | |
Rotary speed of main shaft |
0-45r/min |
0-90r/min | |
Feeding stroke |
6m |
Pilot hole diameter |
φ240mm |
Drilling angle |
8-16° |
Walking speed |
1.5-3.0km/h |
Structure type |
Steel crawler, Motor rack and pinion feeding, cab, crane, mud pump are integrated on one. |
Crane |
2 tons direct-arm Crane |
Dimension |
9000×2750×2800mm |
Weight |
22000kg |
Mud pump | |
Model |
BWF-600 |
Max. Water flow |
600L/min |
Max. Pressure |
8Mpa |
Weight |
650kg |
Pulping system |
Optional |
Auxiliary System | |
Drill rod |
φ102×5000mm |
Pilot drill bit |
φ170(φ230)mm |
Reaming bit |
φ425φ500φ680φ760φ820φ920φ1000 |
Transfer case |
80T |
Guide instrument |
Optional |
Different models with Different Capability for your choice:
Model |
Engine Power |
Feeding force(KN) |
Pulling Force(KN) |
DFHD-15 |
85KW (2200r/min) |
75 |
150 |
DFHD-20 |
110KW (2300r/min) |
200 |
200 |
DFHD-32 |
145KW(2300r/min) |
320 |
320 |
DFHD-40 |
175KW(2300r/min) |
400 |
400 |
DFHD-68 |
225KW (2200r/min) |
680 |
680 |

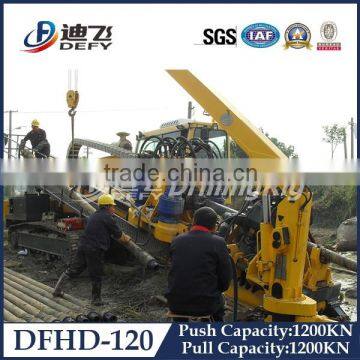

DFHD-120 |
338KW (1900r/min) |
1220 |
1220 |
DFHD-245 |
450KW*2 sets |
2450 |
2450 |
DFHD-400 |
552KW*2 sets |
4000 |
4000 |
DFHD-550 |
784KW*2 sets |
5500 |
5500 |
DFHD-750 |
960KW*2 sets |
7500 |
7500 |
* All accessories are available all year around* 1 Year quality warranty for the drilling rig
* Free training in our factory;
Overseas technic support as per request
* Sales team and After-sales team offer you professional service 24 hours/7 days
1. Q: Are you Manufacturer or Trading company?
A: We are definitely manufacturer,we design,produce and sell.We master the core technology, and constantly adjust our products according to the market trend and customer feedback, ensure product quality.
2. Q: How to buy?
A: After confirming the goods you will purchase,deposit for ordering the goods,then prodution---goods finished for confirmation,payment balance,and then shipment.
3. Q: What do I need to do after payment?
A: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick up the goods;All documents for customs clearance will be sent to you by international express after shipment.
4. Q: I am not familar with a new product,how to use it?
A: We provide operation manual and DVD to guide you;we also provide Free training in our factory if you were possible to come;
We provide engineers for overseas technic support;
We provide 24 hours/7 days technic support all year around.
5. Q: How can I change the broken parts if the machine got broken?
A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.
All accessories of our machinery is available at Factory-price all Year around.
