Air Compressor Used Small Water Well Drilling Machine for Rock Drilling

Air Compressor Used Small Water Well Drilling Machine for Rock Drilling photo-1
Air Compressor Used Small Water Well Drilling Machine for Rock Drilling photo-2

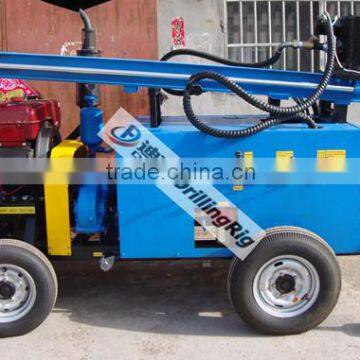

Air Compressor Used Small Water Well Drilling Machine for Rock Drilling photo-3
Air Compressor Used Small Water Well Drilling Machine for Rock Drilling photo-4

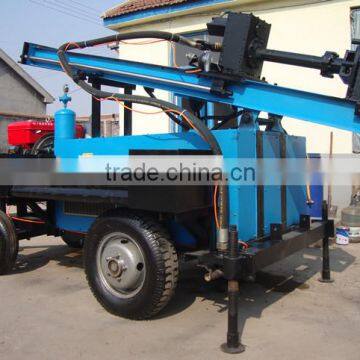

Air Compressor Used Small Water Well Drilling Machine for Rock Drilling photo-5
Air Compressor Used Small Water Well Drilling Machine for Rock Drilling photo-6
US$ 9,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DFQ-100W
Usage Water Well
Voltage Customized
Power(W) 24KW
Dimension(L*W*H) 3200*1770*2050 mm
Weight 2200kgs
Certification BV,SGS certificate
Warranty One year warranty excluding wearing parts
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

DFQ-100W is a DTH hammer drilling rig equipment, It is widely used for water well drilling, geothermal air-conditioning project and other boreholes, especially mountain area and rock aeras.

Item
Parameter
Drilling caliber
Φ105-150mm
Max. drilling depth
100m
Diameter of drill pipe
Φ73、Φ76
Unit Length of drill pipe
1500mm
Work pressure
1.05-2.0 MPa
Gas consumption
15~18 m³/min
Impacter
DHD340350
Impacting frequency
1200-1500Hz
Apply to rock hardness
f=6-12
Power
24Kw/2300rpm
Grade ability
25°
Walking speed
0~1.5 Km/h
Ground clearance
210mm
Leg cylinder stroke
600 mm
System pressure
20MPa
Propulsion
5.0 tonf
Lifting force
8.5 tonf
Speed of spindle
Fast 135 rpm
Slow 91 rpm
Rotary torque
1050N.m
Weight
2200 Kg
Dimension
3200*1770*2050 mm

Main Features

1. suitable land condition is mainly very hard rock, like marble, granite, limestone.

2. Equipped with special DTH hammer and DTH bit, efficient in rocky area.

3. Power is diesel engine, suitable outside working.

4. Need use with air compressor

5. Higher efficiency, compared with traditional rigs. Drilling speed--20 m/h

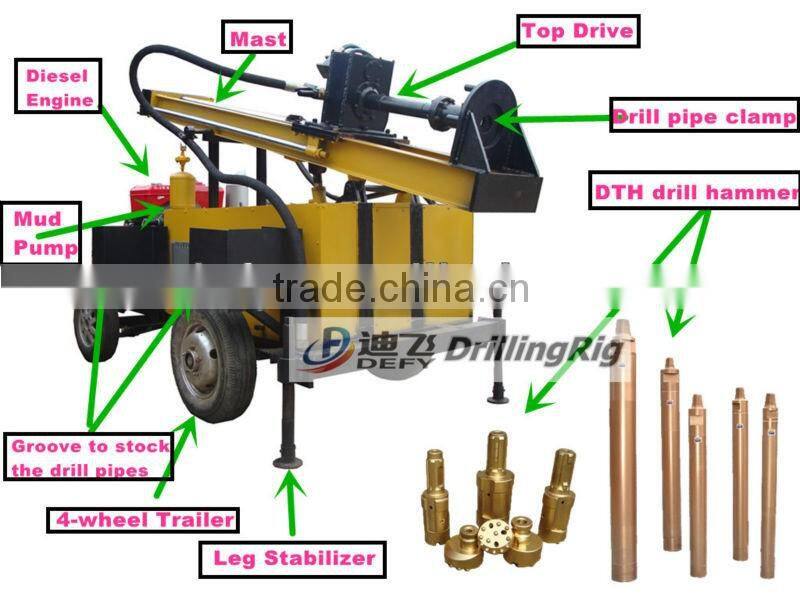

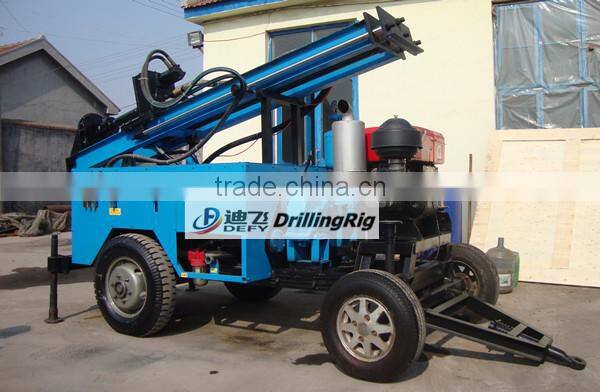

Detailed Images

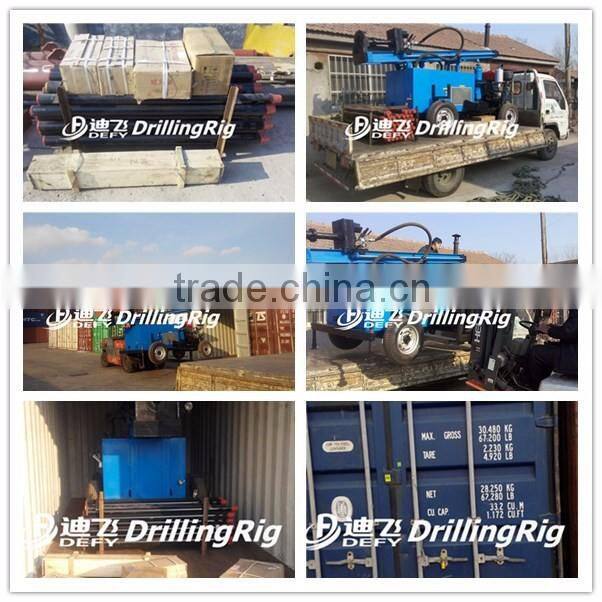

Packing & Delivery
Packaging
Size
3200*1770*2050 mm
Weight
2.2 T



Packaging Details


main machine in container, accessories in wooden case.

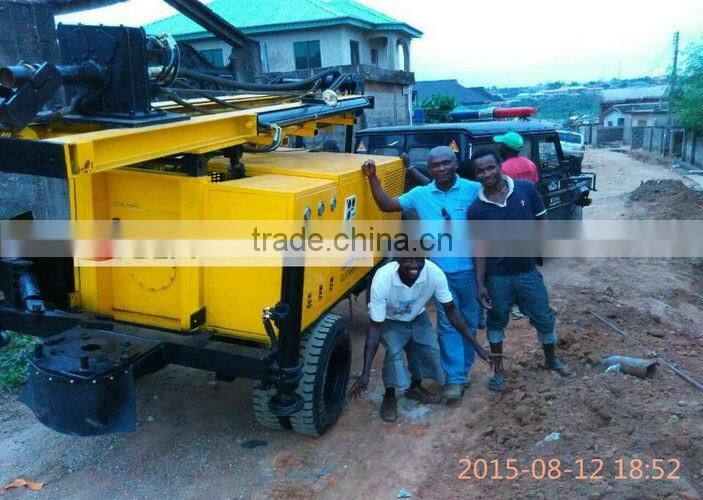

customer feedback
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Machine testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

 Zhengzhou Defy Mechanical & Electrical Equipment CO., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development make our product quality rank in the leading position at home and abroad.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineers and sales team, offering technical support and useful advices whenever you need.

Please feel free to contact with us if you have any questions about our products.
