Volta Batteries for Ups High Quality 100kva Modular Ups

Volta Batteries for Ups High Quality 100kva Modular Ups thumbnail-1
Volta Batteries for Ups High Quality 100kva Modular Ups photo-1
US$ 1,500 - 9,865 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BAYKEE
Model Number:
BHK
Contact Supplier Request Quote Chat Now
Foshan Baykee New Energy Technology Incorporated Company
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BAYKEE
Model Number BHK
Phase Three Phase
Protection Overcurrent
Weight 180Kg-2850Kg
Output Voltage 220/230VAC/380VAC+/-10%
Type On-line
Application Networking

High quality  100kva modular ups Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BAYKEE
  • Model Number: 10KVA ~520KVA modular ups manufacture
  • Phase: Three Phase
  • Protection: Unbalanced Loads
  • Weight: 180Kg-2850Kg
  • Output Voltage: 380V,400V,415V or 200V,208V,220V etc.
  • Type: On-line
  • Application: Telecommunications
  • Capacity: Modular Online UPS 10KVA-520KVA
  • Display: LCD+LED, Touch screen and keyboard
  • Battery mode: intelligent battery management system.
  • Inverter: IGBT inverter
  • DC Start: Cold Start
  • Cooling: Forced Wind
  • Modules: n+1 (10KVA/15KVA/20KVA) modular ups manufacture
  • Optional: Isolation Transformer, Parallel, SNMP Card, Battery Monitor fuction
  • Battery Type: Lead-acid Maintenance-free Battery
  • Wave Form: Pure Sinewave Transformerless Modular Type Online UPS

Packaging & Delivery

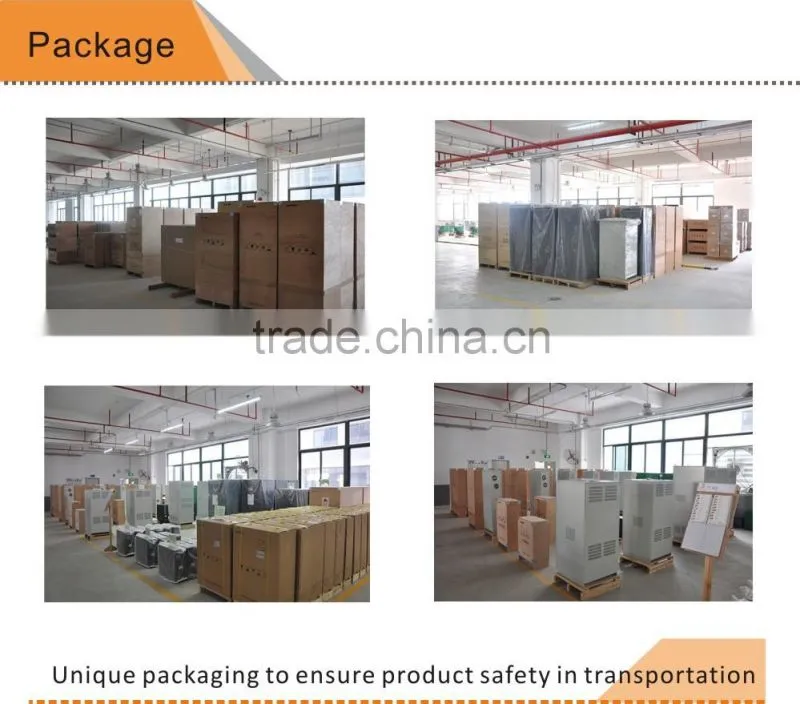

Packaging Details: Standard Export Plywood/Wooden Package.
Delivery Detail: Shipped in 15 days after payment




                        Baykee BKH series N+X redundancy modular ups manufacture









Description:

    BKHseries is modular and online double conversion UPS for sensitive equipments. The power rating covers from 10KVA to 200KVA which delivers the best of combination of reliability, functionality, hot-swappable and flexibility at a competitive price.

Characteristic items list:

Specification of 380V/400V/415V

Capacity

10-200KVA

Main Input

Input voltage

380V/400V/415V(line to line)
220V/230V /240V(line to neutral)

Input frequency

50/60Hz

Power factor

>0.99

Input voltage window

-40%~+25%

Frequency window

40-70HZ

Battery

Battery voltage

±240VDC

Charger power

20%*Power

Charger voltage precision

1%

Bypass

Bypass voltage

380V/400V/415V(line to line)
220V/230V/240V(line to neutral)

Bypass voltage window

-20%-+15%, full load, settable

Bypass overload capability

125%, long time operation

125%< load <130%, last for more than 1 hour

130%<load<150%,last for more than 6 minutes

>1000%, last for more than 100ms

Output

Output voltage

380V/400V/415V(line to line)
220V/230V/240V(line to neutral)

Voltage precision

1% (balance load),1.5% (unbalance load)

Voltage THD(Total Harmonic Distortion)

THD<1.5%(linear load),THD<5%(nonlinear load)

Power factor

0.8

Phase tolerance

120°±0.5° (balance and unbalance load)

Crest factor

3:1

Overload capability

105%,long time operation

110%, transfer to bypass after 1hour

125%, transfer to bypass after 10 minutes

150%, transfer to bypass after 1 minute

>150%, transfer to bypass after 200ms

System

System efficiency

Normal mode: 95%

ECO mode: 98%

Battery mode efficiency

95%

Display

LCD+LED, Touch screen and keyboard

IP class

IP20

Interface (Communication Ports )

RS232,RS485,Dry contacts,SNMP card,EPO,Generator interface

Installation/Connection

Top or bottom cable connection

Operation temperature

0-40°C

Storage temperature

-25°C~70°C

Relative humidity

0-95% (non-condensing)

Noise(dB)

<55dB

Weight(KG)

6 -module cabinet

RM060/10, RM090/15, RM120/20

150KG

10-module cabinet

RM100/10, RM150/15, RM200/20

180KG

PM10

10KVA: 20KG

PM15

15KVA: 21KG

PM20

20KVA: 22KG

Dimension(W*D*H)(mm)

6-module cabinet

600*900*1600

10-module cabinet

600*900*2000

Module

400*590*134 (10KVA/15KVA/20KVA)
