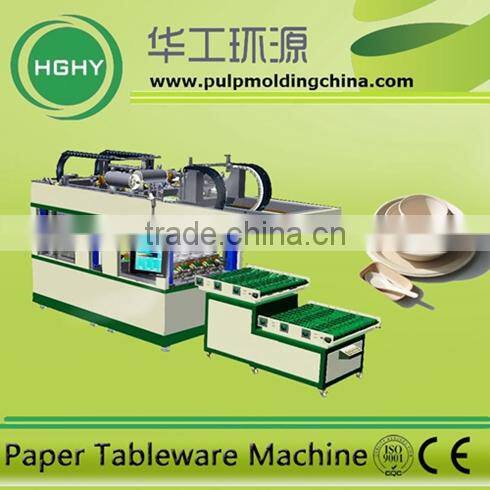

Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY

Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY photo-1
Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY photo-2
Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY photo-3
Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY photo-4
Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY photo-5
Biodegradable Bamboo Bagasse Pulp Paper Plate Machine by HGHY photo-6
US$ 2,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Egg Tray Machine
Processing Type:
Pulp Molding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Egg Tray Machine
Processing Type Pulp Molding Machine
Place of Origin Guangdong, China
Brand Name HGHY
Model Number C2
Voltage 220-440
Power(W) 100KW
Dimension(L*W*H) depends on the final production line
Weight 2TON
Certification CE
Warranty 12 Monthes
After-sales Service Provided Engineers available to service machinery overseas

biodegradable bamboo bagasse pulp paper plate machine by HGHY



biodegradable bamboo bagasse pulp paper plate machine by HGHY





Product Description

 Introduction to" biodegradable bamboo bagasse pulp paper plate machine by HGHY  "

The pulp molded tableware is usually made of wood or grass pulp.

The pulp disposable tableware   is smashed in the hydrapulper and adjusted to a

certain consistency.

After being added to some chemicals, the fiber in the pulp will cover the wire mesh

of the mold with the effect of the vacuum.

The wet products become to the finished products after drying, hot pressing, edge

cutting and disinfection.

All these are finished automatically on the machine, which is efficient, safe, lower

in labor and production costs.



Status: Brand new

Product Type: Paper Plate Machine

Processing Type: Pulp Molding Machine

Place of origin: Guangdong China

Brand: HGHY

Item:C2

Voltage: 380-440V

Approval: CE

Warranty: 12 Monthes

After-Sale Service: Engineers available to service machinery overseas



Main equipment of " biodegradable bamboo bagasse pulp paper plate machine by HGHY  "





 biodegradable bamboo bagasse pulp paper plate machine by HGHY





NAME AND TYPE
Pulping   System 1ZSJD-1.7             HydraPulper
2PZ-1.7                 Operation Platform
3JB-120-160         Agitator
4JB-60-90             Agitator
5JB-160-310         Agitator
6Double disk refiner
7606 Pulp Centricleaner
8Automatic Control System Accessories
9KZT1.7               Countrol Cabinet for pulp Proportioning
10KZ1.7                 Control cabinet for Pulping
Forming   and drying System11ZJWD—135125 Full Automatic Thermal forming Machine
12Air water separation tank
13 Buffer tank
14Noise baffler tank
15Control Cabinet for Forming System
Other16Ultraviolet Disinfection Line
17Mold









main consumption of  "biodegradable bamboo bagasse pulp paper plate machine by HGHY"



NO.DESCCONSUMPTION PER HOURREMARK
1pulp50-60kg
2water2-3T
3electricity420-480kw.hrheating by electricity
280-320kw.hrif heating by thermal oil
4Chemicalwater-proof2~2.5kgSolid Content consistence 20-23% (This data only for reference )
oil-proof0.4~0.5kg
other
5Fuel0# Diesel Oil25-30kgheating by thermal oil (This data only for reference )
or Natural Gas31-38kg
or LPG25-30kg
RemarkThe Calarific Value of Diesel Oil10000K CARL/kg Energy Consumption of NO.4 is counted with these data
The Calarific Value of Natural Gas 8000K CARL/kg
The Calarific Value of LPG10000K CARL/kg







application of  " biodegradable bamboo bagasse pulp paper plate machine by HGHY "





biodegradable bamboo bagasse pulp paper plate machine by HGHY

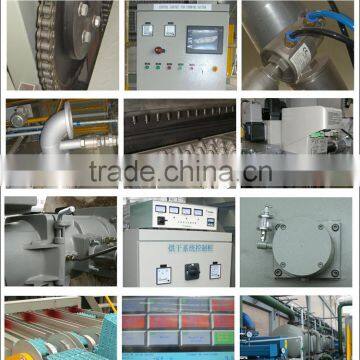

detials of " biodegradable bamboo bagasse pulp paper plate machine by HGHY "






biodegradable bamboo bagasse pulp paper plate machine by HGHY

biodegradable bamboo bagasse pulp paper plate machine by HGHY



biodegradable bamboo bagasse pulp paper plate machine by HGHY

biodegradable bamboo bagasse pulp paper plate machine by HGHY

Packaging & Shipping

Package: standard export package or upon requirement.

Shipping: 90-120 days, depending on the fabrication line.

Company Information

- Established in 2000, HGHY is one of the earliest manufacturerfor Pulp Molding Products in China;



- Combined with high and new technology from the paper-making science majored professors of famous South China University of Technology,with over 30 R&D personnel, HGHY is the most reliable choice to ensure superb performance in a long term;



- HGHY offers the widest range of both equipment/machine types and platen/tooling sizes, as wellas the comprehensive molds per platen, which meets almost all kinds of needs;



- HGHY's factory covers an area of 24,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 40 countries and regions;



- Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.

biodegradable bamboo bagasse pulp paper plate machine by HGHYbiodegradable bamboo bagasse pulp paper plate machine by HGHYbiodegradable bamboo bagasse pulp paper plate machine by HGHYbiodegradable bamboo bagasse pulp paper plate machine by HGHY

FAQ

(1). What kind of material we can use as the raw material?



   Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get



(2). What kind of Fuel can be used for the whole production line?



   Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?



  All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer      product package, medical disposable container etc.



(4). Are you a manufacturer?



  Yes, HGHY has been fabricating pulp molding machine since 2000. We are one of the



  most important pulp molding machine maufacturers in the world, and we are the largest pulp



  molding machine manufacturer in China, providing high quality and production capacity pulp molding

  machinery at reasonable prices to the world.



(5). How to contact you?



  (A) Visit us.Our head office is in Building C3-1103, International Creative Valley,  No.99 Kexue



  Dadao Road, Science City, Guangzhou, P.R. China.



  The nearest airport Baiyun airport.

  (B) Send email to tell us your requirments.

  (C) Call us at +86-020-62327808

  (D) Visit us at exhibitions. HGHY attends most of the exhibitions worldwide relevant to the pulp



  molding industry. We will put a notice  in our website once the exhibition plans are finalised.



(6). In how many countries have your machines been installed ?



   All over the world, including the following countries: Algeria, Nigera, Malawi, Bolivia, Sudan, Jordan, Egypt,

   Uzbekstan, Malaysia, Russia,Poland,France, etc.
