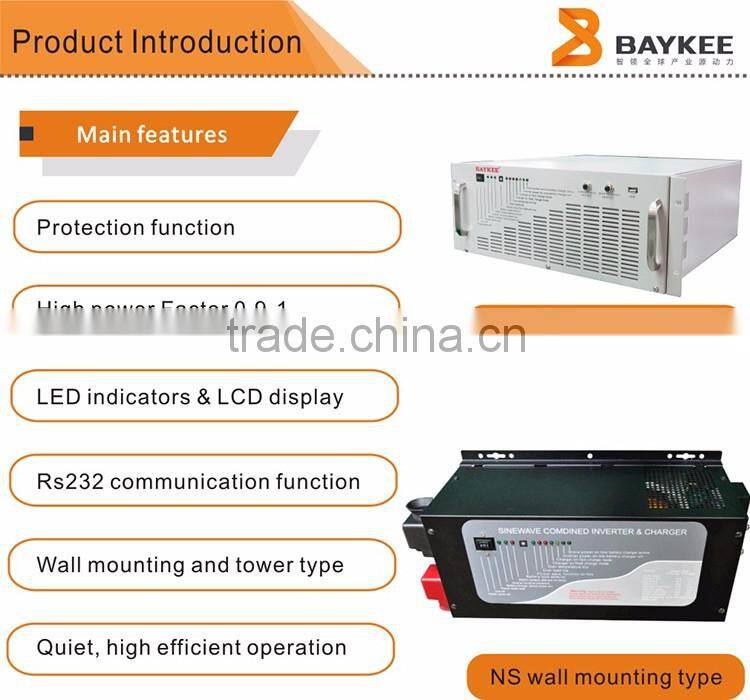

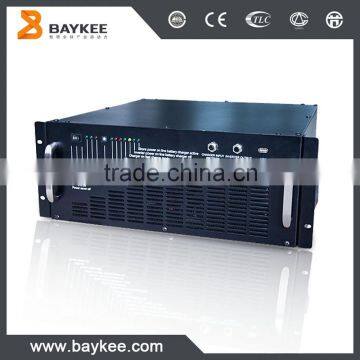

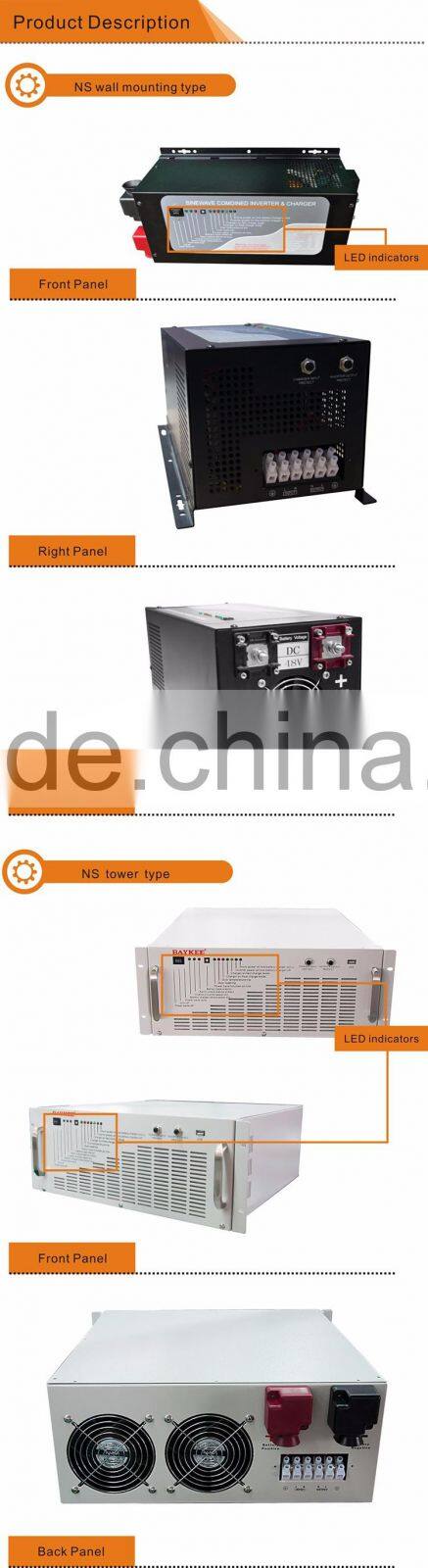

30-75A Big Current Charge dc to ac Inverter 5000w

Series (SNS)

Model

1024

2012

2024

3024

3048

5048

6048

1000W

2000W

2000W

3000W

3000W

5000W

6000W

DC24V

DC12V

DC24V

DC24V

DC48V

DC48V

DC48V

Utility Pattern Specification:

Input Wave Form

Sine wave (Utility or generator)

Nominal Voltage

230VAC

Low Voltage Trip

184VAC±4%

Low Voltage Reengage

194VAC ±4%

High Voltage Trip

253VAC±4%

High Voltage Reengage

243VAC±4%

Max. AC Input Voltage

270Vrms

Nominal Input Frequency

50Hz/ 60Hz (Auto detect)

Low Frequency Reengage

Frequency

58+0.3Hz(60Hz);

48+0.3Hz(50Hz);

Low Frequency Trip

Frequency

57+0.3Hz(60Hz);

47+0.3Hz(50Hz);

High Frequency Reengage

Frequency

64+0.3Hz(60Hz);

54+0.3Hz(50Hz);

High Frequency Trip

Frequency

65+0.3Hz(60Hz);

55+0.3Hz(50Hz);

Output Wave Form

Bypass mode, same as input

Overload Protection

Circuit Breaker

Short Circuit

Circuit Breaker

Efficiency

>95%

Transfer Switch Current

30A

Transfer Time (Ac to Dc)

10ms

Transfer Time (Dc to Ac)

10ms

Bypass without Battery

Connected

yes

Max. Bypass Current

30A

Series (SNS)

Model

1024

2012

2024

3024

3048

5048

6048

1000W

2000W

2000W

3000W

3000W

5000W

6000W

DC24V

DC12V

DC24V

DC24V

DC48V

DC48V

DC48V

Output/inverter parameters

Output Wave Form

Sine wave

Power Factor

1.0

Nominal Output Voltage (V)

220VAC/230VAC/240VAC, opional 100 VAC/110 VAC/120VAC

Output Frequency(Hz)

50Hz or 60Hz ±0.3Hz

Automatic tracking main frequency (Hz)

Yes (start from the first connection), 50Hz@ 48-54Hz, 60Hz @58Hz-64Hz

Output voltage regulation

±10% rms

Efficiency

85%

Overload Protection

(100%<load<125%) ±10%, no output after 15mins,  (125%<load<150%) ±10%, no output after 10s

DC input voltage

12vdc, 24vdc, 48vdc

Min. start voltage

10vdc, 20vdc, 40vdc

Low Voltage Alarm

10.5vdc for 12vdc, 21vdc for 24vdc, 42vdc for 48vdc

Low Voltage Trip

10vdc for 12vdc, 20vdc for 24vdc, 40vdc for 48vdc

High Voltage Alarm

16vdc for 12vdc, 32vdc for 24vdc, 64vdc for 48vdc

High Voltage Reengage

load<25W

Size(MM)

442*218*179mm for 1kw-3kw, 598*218*179mm for 4kw-6kw

Weight (Kg)

18kg for 1kw, 20kg for 2kw, 22kg for 3kw, 35kg for 4kw, 38kg for 5kw, 40kg for 6kw
