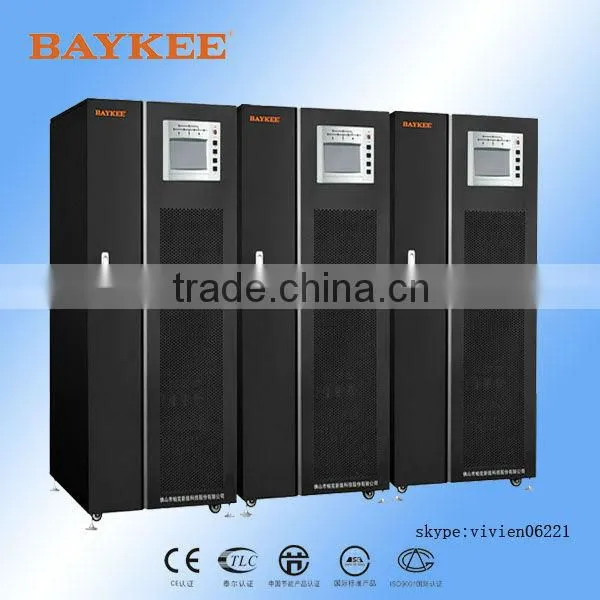

Baykee Online Ups N+x Parallel Redundancy Pure Sinewave UPS 80kva

FOB Price

USD $1 - $100,000 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenhzen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Baykee or OEM	Model Number:	DSP10kva-600kva
Phase:	Three Phase	Protection:	Overvoltage	Weight:	200-2500kg
Output Voltage:	380V,400V,415V	Type:	On-line	Application:	Medical

Product Description

Specifications

1.Double Conversion UPS System
2.Pure Sine Wave Output Design
3.Extended backup time
4.N+X parallel redundancy UPS System

Baykee Online Ups N+x Parallel Redundancy Pure Sinewave UPS 10kva/80kva

Model	DSP10k	DSP20k	DSP30k	DSP40k	DSP60K	DSP80K	DSP100K	DSP150K	DSP200K	DSP300K	DSP400K
Nominal capacity(KVA)	10kva	20kva	30kva	40kva	60kva	80kva	100kva	150kva	200kva	300kva	400kva
Work principle	Pure sine wave on line
Control mode	DSP technique
Parallel	Parallel directly (Max 8pcs)
Work mode	Ups mode or ECO mode by you want to choose from front panel LCD
Phase	3phase+N+G
Input power factor	>0.9
Nominal input voltage	220/380VAC,230/400VAC,240/415VAC( 110vac/220vac option)
Nominal input frequency	50Hz±10%,60Hz±10%
Output ripple	<2%
Soft start	0~100% 5sec
Charge mode	constant current to constant voltage, with temp compensation; with Auto change
Float Voltage	432VDC
Battery Type	maintenance-free lead acid battery
Output voltage stability	±1%( Stable load); ±3%( fluctuant load)
Output frequency stability	50Hz/60Hz<±0. 5%
Crest factor	> 3:1
Output waveform distortion	Sine wave ,linear load<3%;non-linear load<5%
Dynamic characteristics	Instant voltage<±5%(from 0 to100% ), Instant recover time<10mS
Efficiency	>95%(full load)
Overload Protection	125%10 m;150%1S;200%200 ms
Transfer time	<1mS( static switch with 0 transfer time )
Working environment	Temp: 0~40°C, relative humidity 30%~90 %;( 1% decrease against 100 meters’ rise. Altitude 4000m MAX)
Cooling down method	COMPULSIVE VENTILATION(with temperature control)
Communication Interface	RS232, RS485; optional SNMP card (for internet long distance monitor )
Redundancy function	Tandem hot backup or N+1 parallel
Anti-surge capacity	10/700μS,5KV ;8/20μS,20KA
Protection level	IP21
Safety performance	Vin-n Vout-n 3000Vac, creepage<3.5mA , insulating resistance>2MΩ(500VDC)
Noise dB	48~55				55~60		60-65			65-70
Dimension(W×D×H)mm	450×800×1050			600×800×1250		950×850×1800		1380×980×1800		1600×1200×1800
Weight(Kg)	210	320	360	390	450	800	860	1280	1490	1800	2000
