Home Inverter Ups High Frequency Single Phase Ups

Foshan Baykee New Energy Technology Incorporated Company
Home Inverter Ups High Frequency Single Phase Ups thumbnail-1
Home Inverter Ups High Frequency Single Phase Ups photo-1
US$ 300 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BAYKEE or OEM
Model Number:
HS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN or GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BAYKEE or OEM
Model Number HS
Phase Single Phase
Protection Short Circuit
Weight 7Kg-36.5Kg
Output Voltage 200/208/220/230/240VAC
Type On-line
Application Computer

High frequency 1 single ups , power supply , ups for computer

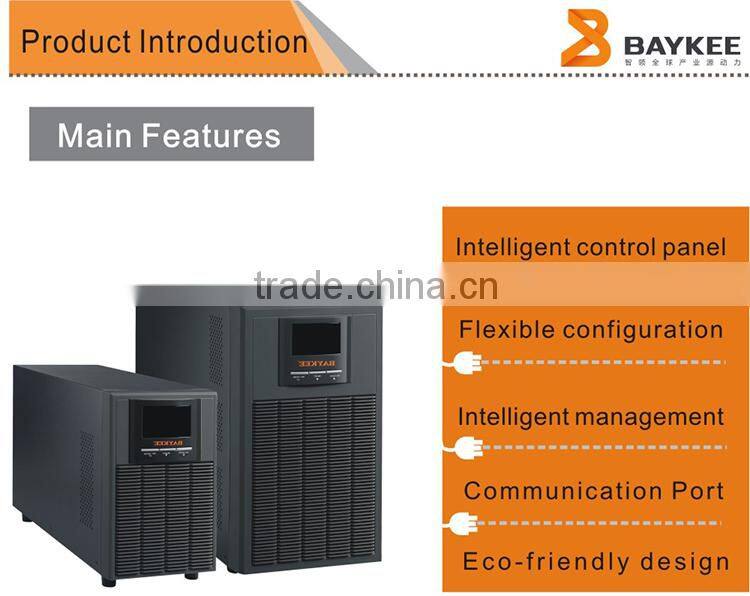

Features of our  ups power supply

  1. Intelligent control panel
  2. Flexible configuration
  3. Integration, Miniaturization, low noise
  4. Intelligent management
  5. Abundant Communication Interface
  6. Environmental protection design
  7. Intelligent Fan Speed Control
  8. Alarming system
  9. Automatic  identification

Specifications of our  uninterrupted power supply ups

modelHS-1K (L)HS-2K (L)HS-3K (L)HS-6K (L)HS-10K (L)
capacity VA/W1kva/800w2kva/1600w3kva/2400w6kva/4800w10kva/8000w
phaseSingle Phase with ground
input
voltage rangelow voltage transfer160VAC/140VAC/120VAC/110VAC ±5% or 80VAC-50VAC ±5% (based on load range 100%-80%/80%-70%/70%-60%/60%-0)176VAC±3% @ 100% load or 110VAC±3% @ 50% load
low voltage recover168VAC/148VAC/128VAC/118VAC ±5% or 84VAC-454VAC ±5% (based on load range 100%-80%/80%-70%/70%-60%/60%-0)176VAC±3% @ 100% load or 110VAC±3% @ 50% load
High voltage transfer300VAC±5% or 150VAC±5%300VAC±3%
High voltage recover290VAC±5% or 145VAC±5%290VAC±3%
frequency range40Hz-70hz46Hz-54Hz or 56Hz-64Hz
power factor≥0.99≥0.99 @ 100% load
output
voltage range (battery model)200-240VAC or 100-127VAC208VAC-240VAC
frequency range (Synchronous correction range)±2%±1%
frequency range (battery model)47Hz-53hz or 57Hz-60hz
Surge ratio3:1
harmonic distortion≤3% THD (linear load),≤6% THD (nolinear load)≤4% THD (linear load),≤7% THD (nolinear load)≤3% THD (linear load),≤6% THD (nolinear load),
transfer timeAC-DC0
Inverter-bypassGeneral 4ms
waveform (battery model)Pure Sine wave
efficiency
mains power model85%88%89%
battery model83%85%88%
battery
standard upsbattery model12V7Ah12V7Ah12V9Ah12V7Ah12V9Ah
quantity (pcs)36 or 820
standard charge time90% after 4 hours90% after 9 hours
max charge current1A
charge voltage41.0VDC±1%82.1VDC±1%273VDC±1%
long backup upsbattery modelexternal connect battery capacityaccording to use environment
quantity18-20
max charge current1A/2A/4A/6A4A
charge voltage41.0VDC±1%82.1VDC±1%273VDC±1%
display
LCD or LEDload power,battery capacity,mains power model, battery model,bypass model,failure indication
alarm voice
battery modelring one time per 4 seconds
battery lowring one time per 1 seconds
overloadring one time per 0.5 second
wrongcontinue to ring
phisical performance
standard upssize (DXWXH)mm397x145x220419x310x418590x252x576
net weight (KG)1326/30.528/338183
long backup upssize (DXWXH)mm397x145x220419x310x418590x252x576
net weight (KG)7132527
operating environment
humidity20-90 % RH @0-40 (no fog)
noiseless than 45dB @1mless than 55dB @1mless than 58dB @1m
control management
smart RS232/ USB Optionalsupport windows 2000/2003/xp/vista/2008/7,linux,unix,and MAC
SNMP card optionalpower management support SNMP and internet management

Applications of our  ups uninterruptible power supply

  1. Commercial server
  2. PC server and peripheral
  3. communication and internet equipment
  4. PC and the other nicety electronic equipment

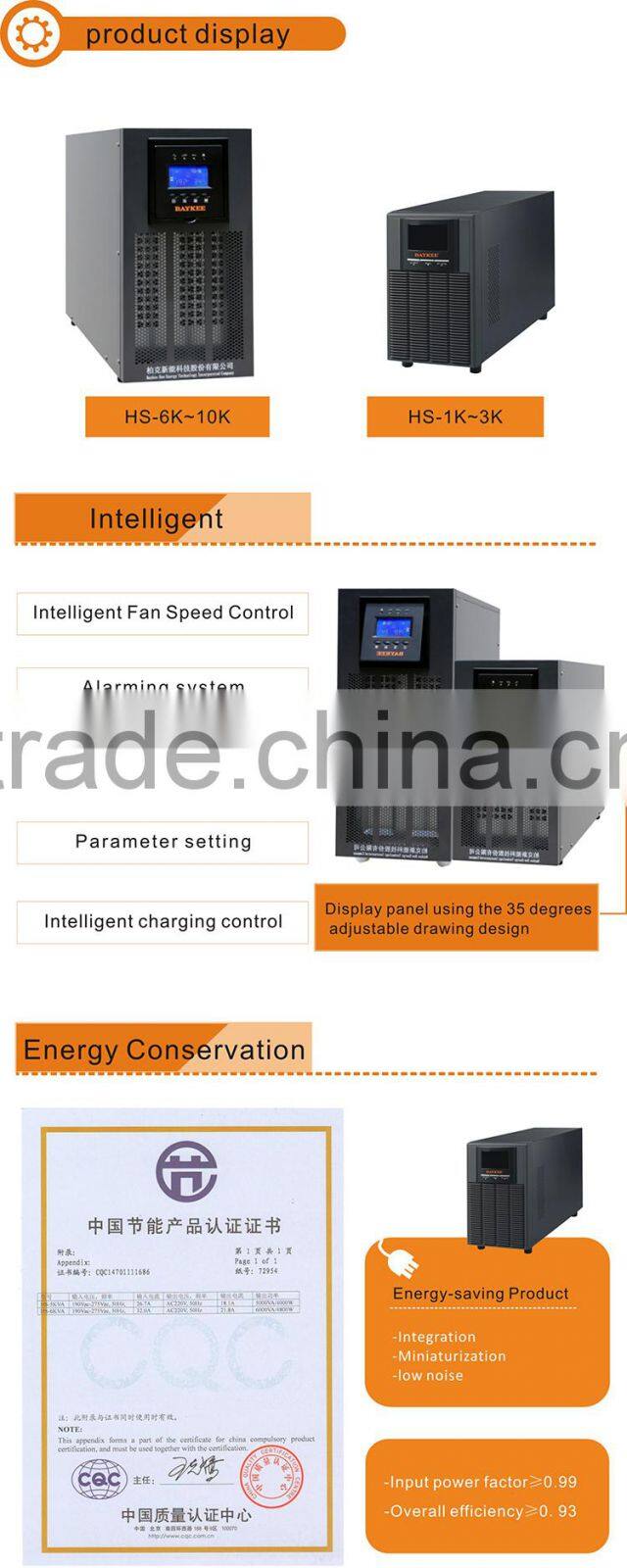

UPS Power Supply Product Photos

Product Description

  HS series intelligent pure sine wave online UPS, the capacity can be from (1KVA~10KVA)single phase in and single phase out) .













Packaging & Shipping



Our Certifications



Company View

Company Information



Our Services



Trade Terms:

  1. Payment: T/T, Western Union,L/C
  2. Delivery Time: 15-25 days

Why Choose us?

  1. We are China Leading UPS and inverter  Manufacturer.
  2. Alibaba Assessed 3 years Gold Supplier.
  3. Inspected by the Inspection Institution of Bureau Veritas Certification.
  4. 100% QC inspection Before Shipmeng.
  5. Best Quality & Best Service with Competitive price.

How to Contact Us?

Send your Inquiry Details in the Below, Click "Send" Now!or you can add my skype:xchaidongqi
