Cheap Bluetooth 4.0 Chip iBeacon Ble Long Distance Beacon

iMFbeacon is Bluetooth Low-Energy proximity beacon. It advertises ID data that is compatible with common beacon standards (UUID, Major ID, and Minor ID), Or broadcast when press the button, or broadcast when motion triggered(additional function).  A push-button with LED feedback allows the user to select the right operating mode for their deployment.

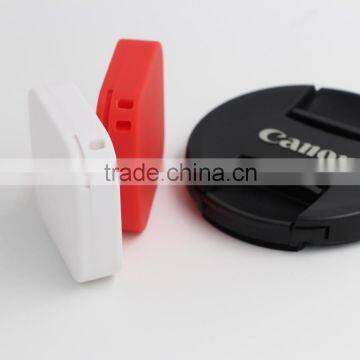

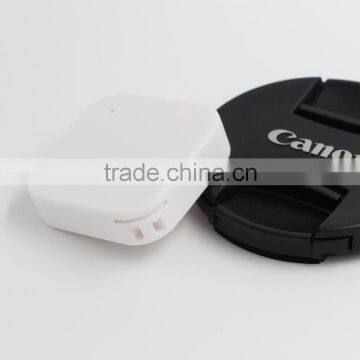

iMFbeacon is a bluetooth 4.0 device with waterproof enclosure, using a standard coin-cell battery. A special channel to be defined by users. So it could be used as tracking alarm, key finder, remote control, doorbell, selfie.

Features:

1. Application:

iBeacon, eddystone, anti lost, key finder, remote control, doorbell, selfie.

2. BLE 4.0 and Nordic chipset NRF51822 ( NRF52832 is developing now).

3. Button:

One Button on Board (two buttons optional)

Activation and configuration (Default)

ON-OFF (customization)

4. Sensors:

Buzzer, Acceleration Sensor ,Temperature Sensor and other sensors are optional.

5. Security Level:

Two Level passwords provided

6. Long Battery Life

Replaceable quality battery(CR2450 or CR2477) with 5 years batttery life or more.

7. Open Firmware Interface

Easy for developer to develop their Application.

8. Technical support:

IOS and Android SDK provided.

Firmware interface definition provided

Easy DFU mode

9. Customization:

Firmware, hardware, housing, and logo printing.

10. Parameters Pre-configuration

UUID, Major, Minor, Power, Device Name, URL etc.

11. iBeacon Parameter Default Setting

- Proximity UUID: 0x11223344-5566-7788-99AA-BBCCDDEEFF00

- Major and minor identifier: 0x0001, 0x0001

- Default pairing password: 0x123456

- Measured Power Value: 0xBB (Measured Power is the value of measured RSSI at a distance of one meter)

- Broadcast Interval: 0x0A (one second)

- It can be blink for one time when starting or wake-up

- The default mode is sleeping

1. Shipping Method: DHL, Fedex, or choose by you. we always choose more cheaper and faster shipping way for you.

2. Packaging: Carton Packing

Q: Why Choose us as your supplier?

A: 1. We have experienced Hardware and Software engineers.

2. We provide high quality products, Competitive Price,  Excellent service and Technical support.

3.  We cooperated with many big software companies , which from USA, UK,Brazil, Italy, Spain, Singapore, etc.

Q: Does your beacons support both iOS and Android?

A: Yes, support both Android and iOS iOS7.0 & Andriod4.3 above.

Q: What technical support you can provide ?
A: We will provide you with a tool APP and API document to configure and test iBeacon, and IOS/Android SDK to develop your APP

Q: Can we custom Casing, Firmware, or Logo printing?
A: Yes, we provide custom service.
