Racing Car Parts Brake Disc Rotor 9117772 569109 90575113 92092100 92092103 98200092101

FOB Price

USD $4 - $10 / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

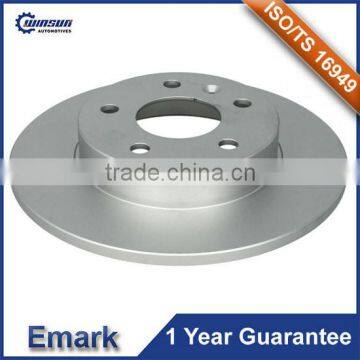

Racing Car Parts Brake Disc Rotor 9117772 569109 90575113 92092100 92092103 98200092101

Reference Number
9117772 569109 90575113 92092100 92092103 98200092101
Vehicle Application
Passenger Car
Specification
	Item Name	Racing Car Parts Brake Disc Rotor 9117772 569109 90575113 92092100 92092103 98200092101
A	Diameter	264 mm
B	Brake Disc Thickness	9.8 mm
C	Centering Diameter	65.5 mm
D	Height	42 mm
E	Pitch Circle Diameter	110 mm
	Number of holes	5
	Location	REAR
	Solid or Vented	SOLID

6.1 Material Paragram of brake disc, rotor & brake drum:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

6.2 Mechanical Properties of brake disc, rotor & brake drum:

1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

6.3 Microstructure of brake disc, rotor & brake drum:

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

Main Products
*C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel*
*Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set*
Main Application
*European & American & Japanese Commercial Vehicle, Main Brand Passenger Car*
