2016 Hot in South-East Asia Diesel Cement Grout Mixer and Agitator

2016 Hot in South-East Asia Diesel Cement Grout Mixer and Agitator photo-1
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
xitan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Guangzhou etc. China Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name xitan
Model Number GMA300-650D
After-sales Service Provided Engineers available to service machinery overseas
Product Description

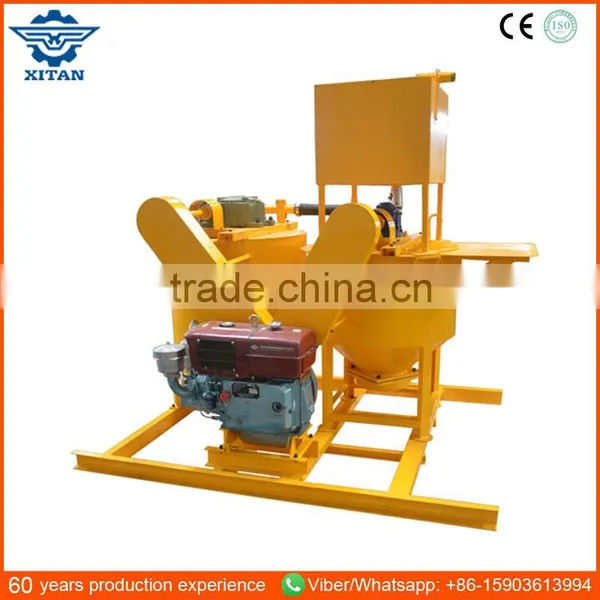

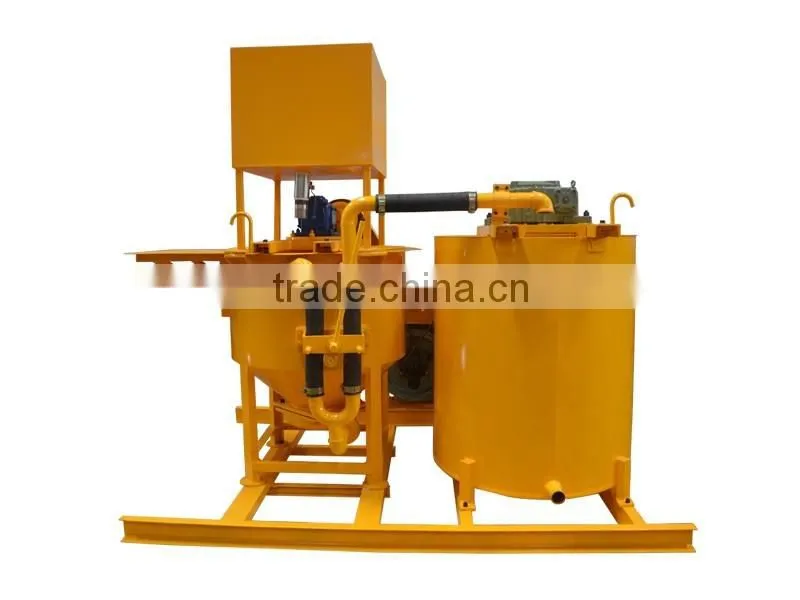

2016 Hot in South-east Asia Diesel Cement Grout Mixer and Agitator

GMA300-650D diesel grout mixer and agitator was  was customized by Malaysia customer in 2015, now the diesel cement grout mixer and agitator very popular in China, it is specially designed for continuous cement mixing and grouting in ground/underground engineering.  The grout mixer and agitator can fast mix water, cement and additive, then the mixed slurry can be stored into a 650 liters agitator, thus the mixing work can continuously be done.
Specification
Item
GMA300-650D diesel cement mixer and agitator
Grout mixer
Capacity or Volume
300L
Acceptable W/C ratio
>0.45:1
Mixing time
3min
Mixing speed
1500rpm
Overall dimension
Dia.850mmx750mm
Grout agitator
Capacity or volume
650L
Rated rev.
30rpm
Overall dimension
Dia.900mmx1050mm
Water tank
Capacity or volume
150L
GMA300-650D diesel cement grout mixer and agitator
Power
18hp
Gross weight
750kg
Overall dimension
2300x1800x2200mm
Main Feature
 GMA300-650D cement grout mixer and agitator

 1. One man could operate;


2. Extremely fast mixing, one batch is onle need 2-3 mins;


3. No seals to wear out from grout;


4. For the power, there are electric motor and diesel engine for option.


Application

ZJB/BP-90 high pressure jet grouting drilling pump were grouting  at Potala palace

Packing and Delivery

Packaing the GM-3 anchoring drilling rig and tools to container for sending to Philippines customer

Put high quality container type ZJB/BP -55 hot sale rotary jet grouting pump on truck to customer

Customer Visit

Thailand customer was discussing the design of GL6000 multi-function engineering grilling rig with our technician.

We are discussing the high quality ZJB/BP -55 hot sale rotary jet grouting pump For sale

Malaysia customer was trying to operate the GL4000 high pressure full hydraulic rotary grouting drilling rig

Philippines' customers come to visiting our factory for buy GM-3 anchoring drilling rig

Company View

Zhengzhou Xitan Equipment Co., Ltd, which has experienced engineers, professional R&D team and special after-sale service team, adheres to the faith that providing the best quality drilling equipment and best service to our customers.


At present, our team devote to pursuit high standard and high specification products. There are more than 20 species drilling equipment, such as rotary jet grouting drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig and high pressure jet grouting mixer and pump, etc. These drilling rigs have been used widely in geological exploration, tunnel engineering, mining industry, water well and geothermal well, etc. All of our products have passed the ISO9001:2001 quality management system certification and won the "national inspection-free products".
