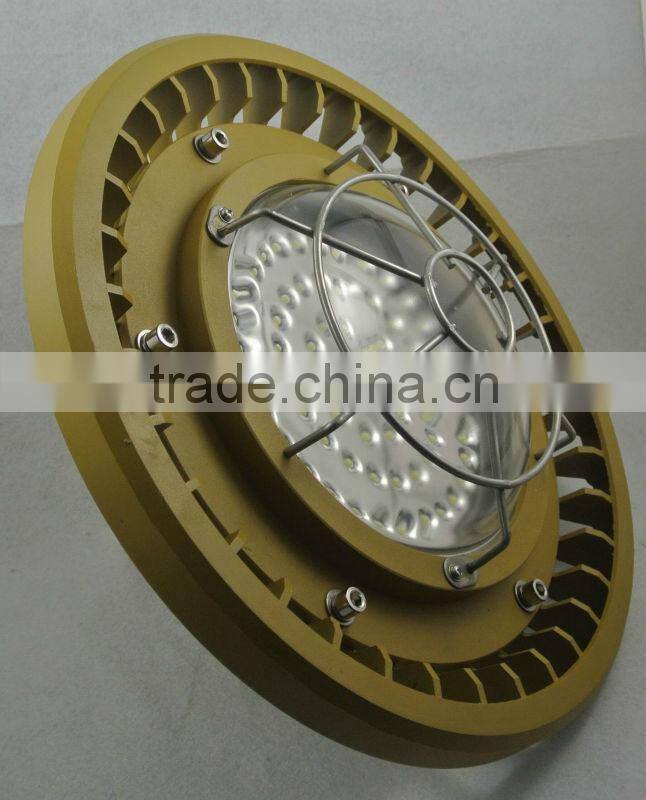

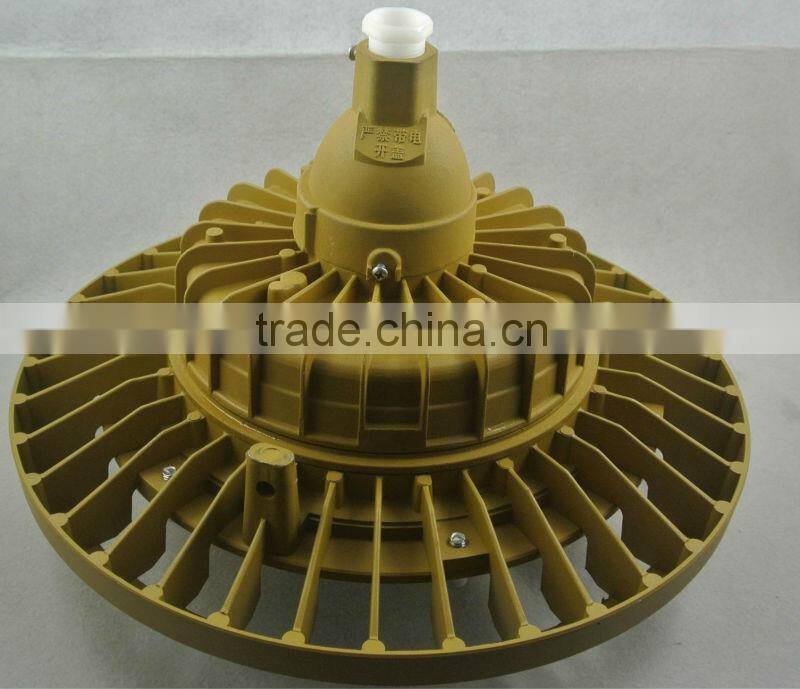

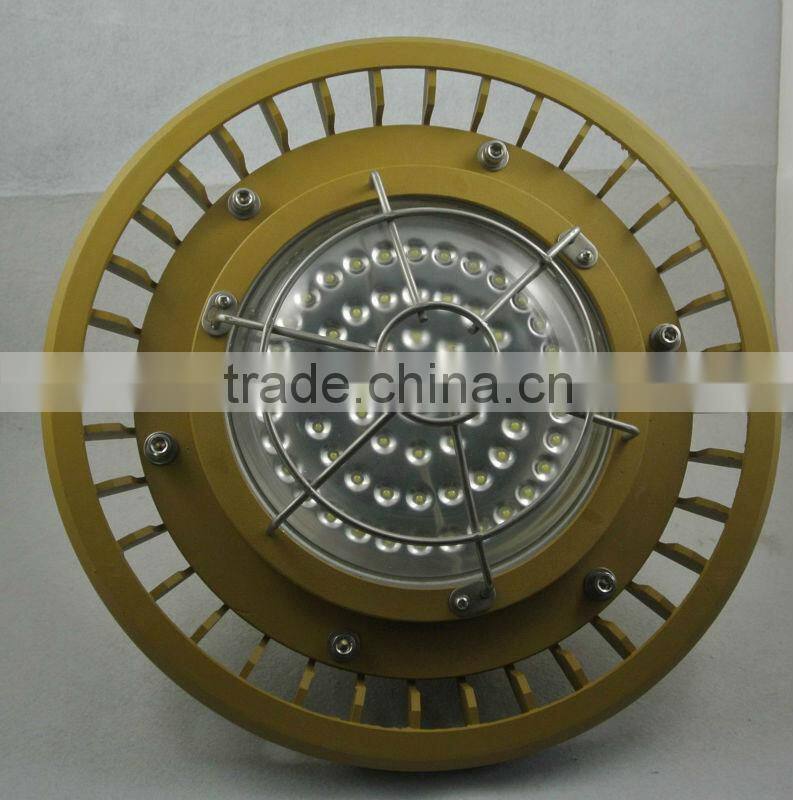

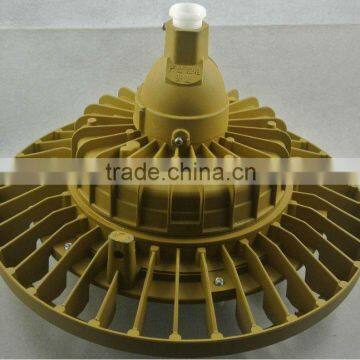

HIGH POWER 100W LED Explosion proof light/explosion proof lighting/explosion lamp-BFD-6310
Feature:
1.Flameproof explosion/dust explosion proof type/explosion proof type ,it's lighting for gas or dust explosion danger place.
2.Toughened glass transparent cover used expoy is sealed by epoxy resin,high transmittance, high impact resitant.
3.Shell fasteners is used high quality stainless steel,inner and outer plastic parts are pressure resistance,high temperature resistance,flame resitance.
4.The whole lamp heat-radiation,short-circuit,over-cuurent,over-voltage production,it's free maintenance for long time lighting.
Application:
1.IIA.IIB.IIC have explosion gas or steam environment ;
2.Zone 1 .2 20 .21 .22 explosion or flammable dust place;
3.The mixing temperature of explosion gas:T1~T4environment;
4.Indoor and outdoor danger place.
(oilfield, metallurgy,refinery, gas station, oil rig, petroleum, petrochemistry and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments. )
Standard:
GB3836-2010( IEC60079 and EN series standard)
GB12476( IEC61241 and EN series standard)
ATEX standard and ROHS reqyurement
UL8750,TUV EN61347-1,EN61347-2-13
Technical parameters:
| No | Specification | Technical parameters |
| 1 | EX Sign | Ex de IICT4-T6 |
| 2 | Anti-dust Sign | DIP A20 TA.T4-T6 |
| 3 | Shell protection class | IP66/IP67 |
| 4 | Anti-corrossion | WF2 |
| 5 | Cable outer Dia | 9-14MM |
| 6 | Inlet thread | G3/4 |
| 7 | Voltage/Power | 100~240VAC 47-63Hz 100W |
| 8 | Power effciency | 91% (220V over load) |
| 9 | Lifetime | 50000hours(25°C) |
| 10 | LED | BridgeLux /CREE |
| 11 | Color temperature | 5000-5500K |
| 12 | Iluminous flux | 10500LM |
Installtion:
Tube hanging type.Celling type.Wall type.Pole type.Bracket type.
