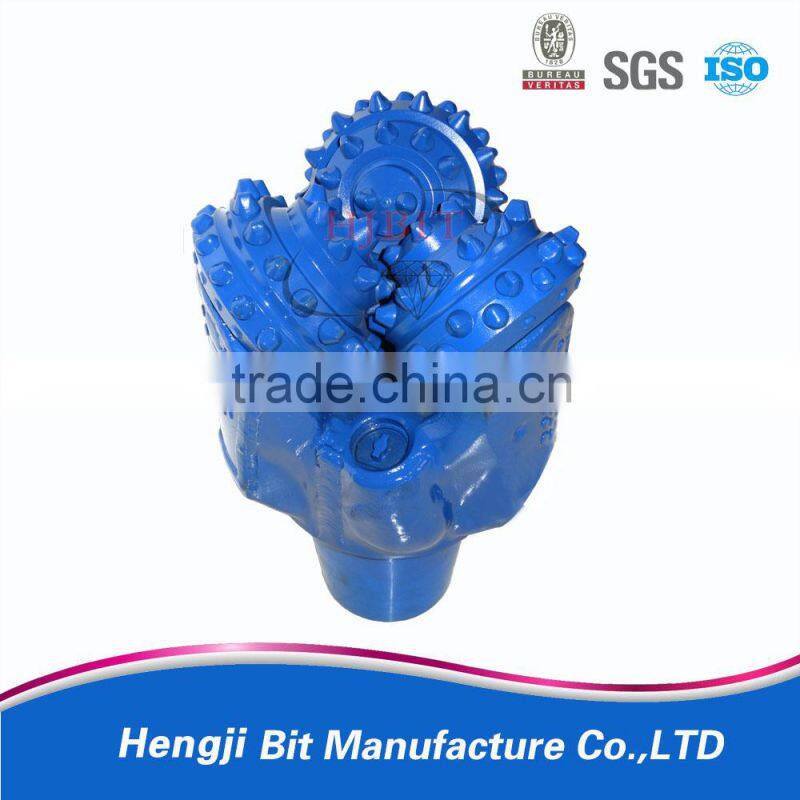

Tci Tricone Bit/roller Cone Bit/rock Bit for Water Well Drilling 8 1/2"

Tci Tricone Bit/roller Cone Bit/rock Bit for Water Well Drilling 8 1/2" thumbnail-1
Tci Tricone Bit/roller Cone Bit/rock Bit for Water Well Drilling 8 1/2" photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HJ
Model Number:
IADC 573
Contact Supplier Request Quote Chat Now
Hejian Hengji Bit Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HJ
Model Number IADC 573
Type Drill Bit
Machine Type Drilling Equipment
Certification Other, API &SO9001
Material Other, tci ,carbon steel,tungsten carbide,alloy steel
Processing Type Forging
Use Well Drilling
tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"
tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2" tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2" tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"



Product Description
tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

K  Hard plastic formation cutting structure

Unique designing parameters and wider insert crest enlarge rock-breaking volume on bottom hole and increase bottom hole coverage. At the same time, shear sliding distance of inserts at bottom hole is made larger and ROP of the bit in hard plastic formation is increased.
tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

X Convex crested wedge compact

Convex crested wedge compact is with the features of high effectively cutting ability and strong anti-breaking ability, which can increase ROP and improve service lite of bit effectively it’s suitable for formations from

medium soft to medium hard.
tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

Y Conical spherical compact

Main cutters of bit are conical spherical compacts, which are suitable for drilling in hard brittle formations.
Product Parmeters



Bit Size Bit Type
in mm
31/2 88.9 HR527
45/8  117.5 HR126 HR517
43/4 120.7 HR116
57/8 149.2 HR216 HR537 HR547 HR637
6 152.4 HR117 HR216 HR246 HR517 HR547
61/4 158.8 HR127 HR247 HR517 HR527 HR547 HR637
61/2 165.1 HR127 HR217 HR517 HR537
63/4 171.5 HR116 HR447 HR537
71/2 190.5 HR127 HR217 HR517 HR517 HR527 HR527 HR617
77/8 200 HR177 HR437 HR517 HR527 HR537 HR547 HR547 HR617 HR627 HR637
83/8 212.7 HR217 HR527 HR547
81/2 215.9 HR117 HR127 HR137 HR217 HR247 HR437 HR447 HR517 HR527 HR537
HE547 HR617 HR627 HR637
83/4 222.3 HE116 HR437 HR517 HR537 HR627
91/2 241.3 HR117 HR127 HR417 HR437 HR517 HR527 HR537 HR547 HR617
95/8 244.5 HR117 HR127 HR137 HR217 HR437 HR517 HR527
97/8 250.8 HR117 HR127 HR137 HR217 HR417 HR437 HR517 HR527
105/8 269.9 HR127 HR217 HR437 HR517 HR547
115/8 295.3 HR117 HR127 HR137 HR217 HR147 HR517 HR537 HR547
121/4 311.2 HR117 HR127 HR137 HR417 HR437 HR517 HR527 HR537
HR547 HR617 HR627 HR637
135/8 346.1 HR437 HR517 HR537
133/4 349.3 HR437 HR517 HR537
143/4 374.7 HR117 HR127 HR137 HR517 HR527
151/2 393.7 HR127 HR217 HR517 HR527 HR537 HR547
16 406.4 HR117 HR127 HR127 HR517 HR527 HR537 HR547
171/2 444.5 HR117 HR127 HR137 HR437 HR517 HR527 HR537 HR547
18 457.2 HR547



IADC WOB RPM Applicable Formations
(KN/MM) (r/min)
(Bit Dia)
116  117 0.35~0.8 150~80 Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
126  127 0.35~0.9 150~70 Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,ft limestone,ect.
136  137 0.35~1.0 120~60 Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft dium soft sandstone soft formation with harder nterbeds,ect.
216  217 0.4~1.0 100~60 Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect.
246  247 0.4~1.0 80~50 Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
417  437 0.35~0.9 150~70 Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc.
447
517  527 0.35~1.0 140~60 Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft ft limestone,ect.
537  547 0.45~1.0 120~50 Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect.
617  627 0.45~1.1 90~50 Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect.
637 0.5~1.2 80~40 Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect.



Product Picture

tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"



tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

Workshop Show



tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"



Packaging & Shipping





tci tricone bit/roller cone bit/rock bit for water well drilling 8 1/2"

Packaging

Wood Box

Fumigation Tray if necessary

Other special package can be applied

according to customer's need



Delivery

Lead Time:

Prepared to deliver within 1 week, if in stock

Depends on order quantity, when out of stock

Transportation:By sea or air



Company Information



    Hejian Hengji Bit Manufacture Co.,LTD  was established in 1990. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices .

    We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining,  Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.



    Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop.  Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.



 We have been always insist on“Hengji bit,focusing on quality”.
