TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit Milled Tooth Bit

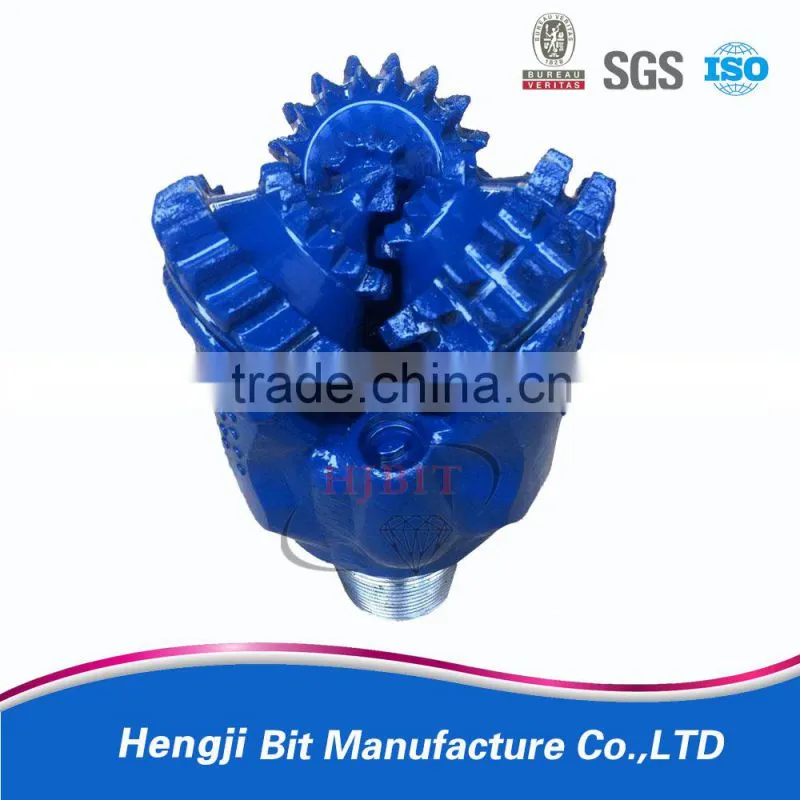

TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit Milled Tooth Bit thumbnail-1
TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit Milled Tooth Bit photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HJ
Model Number:
milled tooth bit
Contact Supplier Request Quote Chat Now
Hejian Hengji Bit Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HJ
Model Number milled tooth bit
Type Drill Bit
Machine Type Drilling Equipment
Certification Other, API &SO9001
Material Other, tci ,carbon steel,tungsten carbide,alloy steel
Processing Type Forging
Use Well Drilling
TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit
TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bitTCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bitTCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit



Product Description
TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

K  Hard plastic formation cutting structure

Unique designing parameters and wider insert crest enlarge rock-breaking volume on bottom hole and increase bottom hole coverage. At the same time, shear sliding distance of inserts at bottom hole is made larger and ROP of the bit in hard plastic formation is increased.

TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

X Convex crested wedge compact

Convex crested wedge compact is with the features of high effectively cutting ability and strong anti-breaking ability, which can increase ROP and improve service lite of bit effectively it’s suitable for formations from

medium soft to medium hard.

TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

Y Conical spherical compact

Main cutters of bit are conical spherical compacts, which are suitable for drilling in hard brittle formations.

Product Parmeters



Bit SizeBit Type
inmm
31/288.9HR527
45/8 117.5HR126HR517
43/4120.7HR116
57/8149.2HR216HR537HR547HR637
6152.4HR117HR216HR246HR517HR547
61/4158.8HR127HR247HR517HR527HR547HR637
61/2165.1HR127HR217HR517HR537
63/4171.5HR116HR447HR537
71/2190.5HR127HR217HR517HR517HR527HR527HR617
77/8200HR177HR437HR517HR527HR537HR547HR547HR617HR627HR637
83/8212.7HR217HR527HR547
81/2215.9HR117HR127HR137HR217HR247HR437HR447HR517HR527HR537
HE547HR617HR627HR637
83/4222.3HE116HR437HR517HR537HR627
91/2241.3HR117HR127HR417HR437HR517HR527HR537HR547HR617
95/8244.5HR117HR127HR137HR217HR437HR517HR527
97/8250.8HR117HR127HR137HR217HR417HR437HR517HR527
105/8269.9HR127HR217HR437HR517HR547
115/8295.3HR117HR127HR137HR217HR147HR517HR537HR547
121/4311.2HR117HR127HR137HR417HR437HR517HR527HR537
HR547HR617HR627HR637
135/8346.1HR437HR517HR537
133/4349.3HR437HR517HR537
143/4374.7HR117HR127HR137HR517HR527
151/2393.7HR127HR217HR517HR527HR537HR547
16406.4HR117HR127HR127HR517HR527HR537HR547
171/2444.5HR117HR127HR137HR437HR517HR527HR537HR547
18457.2HR547



IADCWOBRPMApplicable Formations
(KN/MM)(r/min)
(Bit Dia)
116  1170.35~0.8150~80Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
126  1270.35~0.9150~70Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,ft limestone,ect.
136  1370.35~1.0120~60Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft dium soft sandstone soft formation with harder nterbeds,ect.
216  2170.4~1.0100~60Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect.
246  2470.4~1.080~50Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
417  4370.35~0.9150~70Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc.
447
517  5270.35~1.0140~60Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft ft limestone,ect.
537  5470.45~1.0120~50Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect.
617  6270.45~1.190~50Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect.
6370.5~1.280~40Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect.

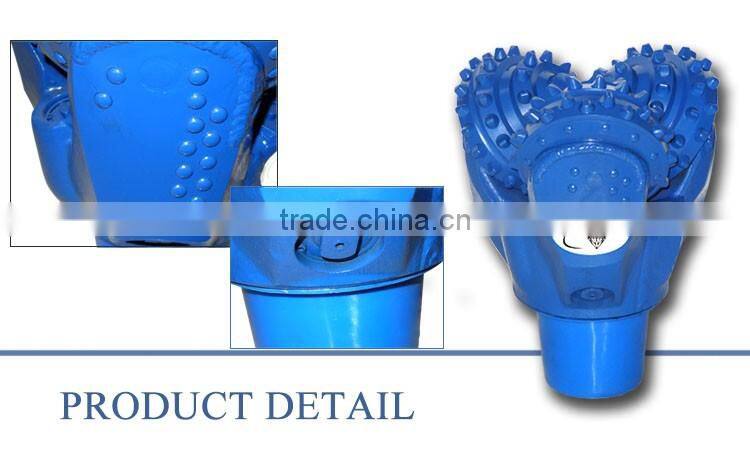

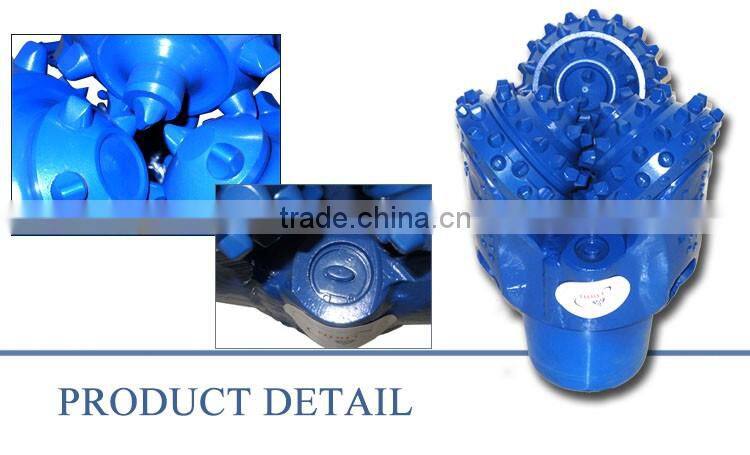

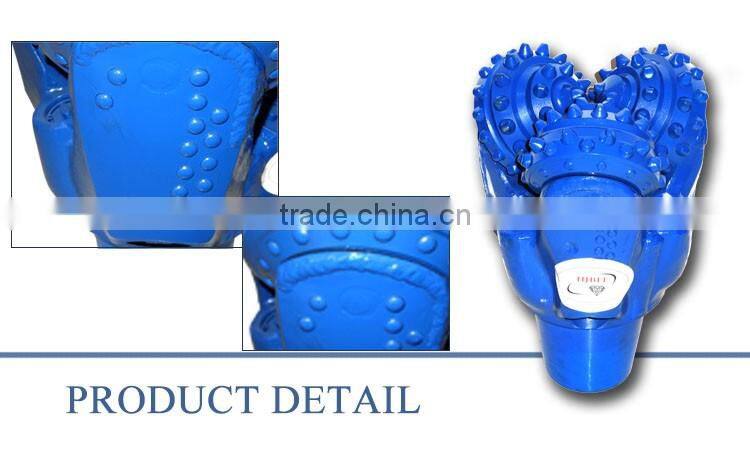

Product Picture



 TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bitTCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

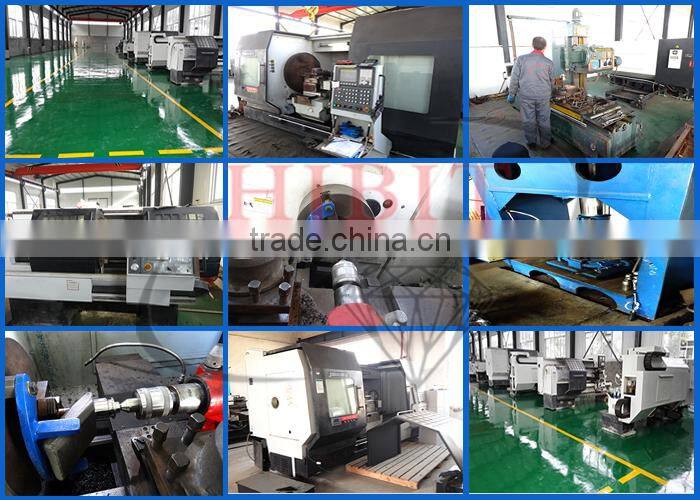

Workshop Show



TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit



Packaging & Shipping





TCI Tricone Bits/ Rock Drill Bits/Oil Drilling Tricone Bit milled tooth bit

Packaging

Wood Box

Fumigation Tray if necessary

Other special package can be applied

according to customer's need



Delivery

Lead Time:

Prepared to deliver within 1 week, if in stock

Depends on order quantity, when out of stock

Transportation:By sea or air



Company Information



    Hejian Hengji Bit Manufacture Co.,LTD  was established in 1990. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices .

    We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining,  Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.



    Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop.  Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.



 We have been always insist on“Hengji bit,focusing on quality”.
