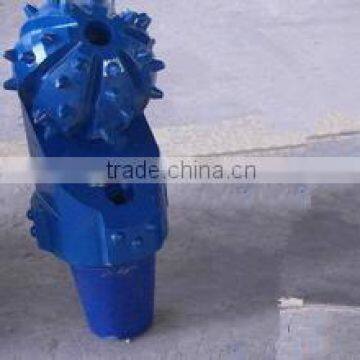

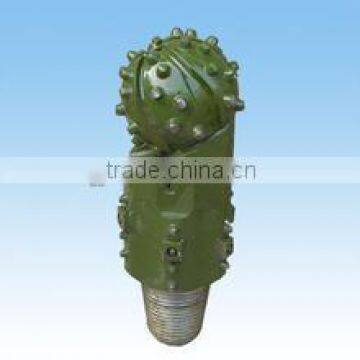

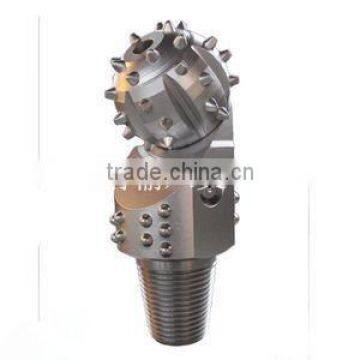

Help CenterAdvance Processing IADC617 6" Single Cone Bits
Related Products
-
Sliding Sealing 8 3/4" Milled Teeth Rock BitsUS$ 100 - 8,000MOQ: 1 Piece -
7 1/2" Milled Teeth Rock Bits for Well DrillingUS$ 100 - 8,000MOQ: 1 Piece
-
IADC137 3 7/8" Milled Teeth Rock BitsUS$ 100 - 8,000MOQ: 1 Piece
-
Sliding Bearing 81/2" TCI Tricone BitsUS$ 100 - 8,000MOQ: 1 Piece
-
IADC137 6 3/8" Milled Teeth Rock BitsUS$ 100 - 8,000MOQ: 1 Piece
Specifications
1 all series2 high quality
3 cost effective
4 best service
5 long life
Cutting Structure
In response to the characteristics that inserts in different areas on the cone have different cutting actions,conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved.Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn.Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.
Gauge Structure
With active cutting gauge protection inserts on bit body,the bit has good gauge protection and updrill capability.
Bearing Structure
High precision journal bearing.Balls lock the cone.Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy.Abrasion resistance and seizure resistance of the bearing are improved .Compared with three cone bit,the leg bearing is bigger,so it can receive higher WOB and high reliability.
Hydraulic Design
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion.Opitmized hydraulics structure improves the cleaning capability and increase ROP.
It is suitable for sidetracking,deep well drilling and old well repairing.
IADC |
WOB(KN/mm) |
RPM(r/min) |
Applicable Formations |
527 |
0.3-0.7 |
120-50 |
Soft formation with low compressive strength and high drillability,such as mudstone,gypsum,salt,soft shale,soft limestone,etc |
547 |
0.3-0.7 |
100-50 |
Soft to medium formation with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium for formation with harder and abrasiver interbeds,etc. |
617 |
0.4-0.8 |
90-50 |
Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,etc. |
By sea ,By plane , By DHL,and so on
Guarantee period is 3-4 years.
Supply use and maintenance support.
Welcome to visit our company and inquire any other question, We will answer your questions in detail
- Hejian Hengji Bit Manufacture Co.,Ltd is established in 2012.It is located in hejian,hebei province.It is emerging enterprises in Chinese bit industry.It is mainly engaged in the development,production and sales of all kinds of bits.
- It has developed and mass-produced products 3 to 26 inches series steel tooth bits and tricone bits,various types of PDC bits,core bits and production and processing assembly 0.6m to 3 m large diameter drill bits. http://hengjibit.en.china.cn/
