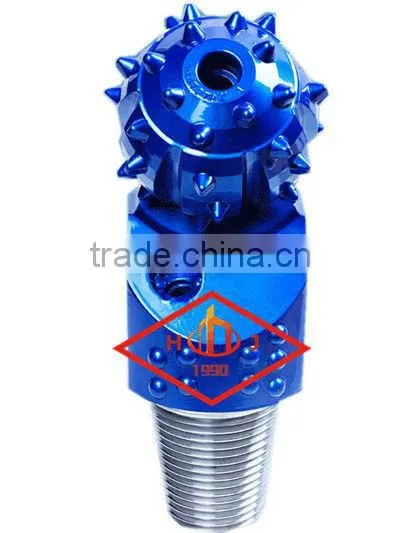

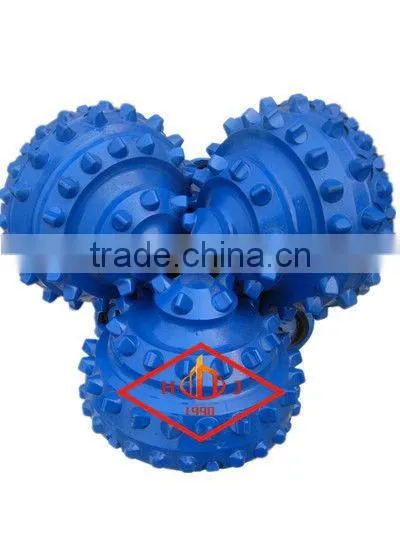

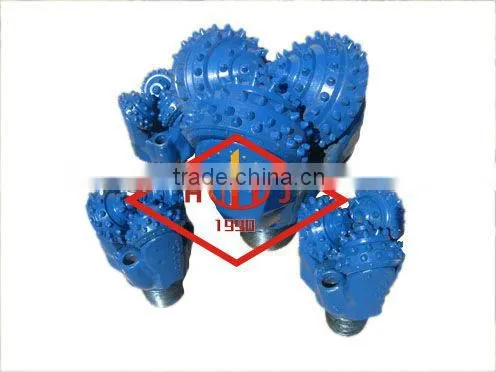

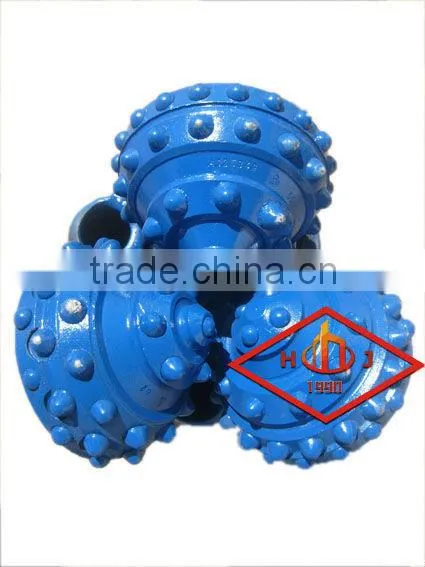

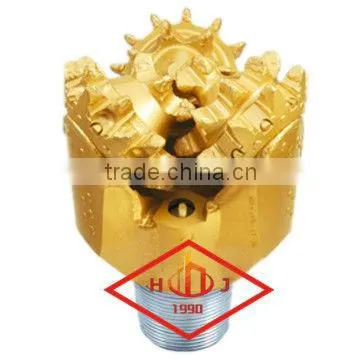

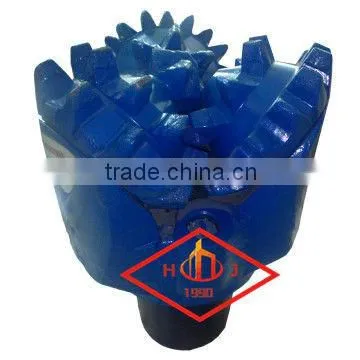

API 8 1/2'' IADC637 Tricone Bit for Well Drilling/high Qualitydrill Bit

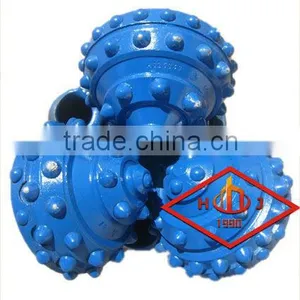

API 8 1/2'' IADC637 Tricone Bit for Well Drilling/high Qualitydrill Bit thumbnail-1
API 8 1/2'' IADC637 Tricone Bit for Well Drilling/high Qualitydrill Bit photo-1
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HJ, HJ
Model Number:
tricone bit for well drilling, all IADC code
Contact Supplier Request Quote Chat Now
Hejian Hengji Bit Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HJ, HJ
Model Number tricone bit for well drilling, all IADC code
Type Other, Center Drill Bit, Center Drill Bit
Material Other, Tungsten Carbide, Tungsten Carbide
Use Other, Well Drilling, Well Drilling

Specifications

Specifications
1.ISO&API
2.tricone bit for well drilling
3.Resonable price excellent in quality
4.Cover all IADC code

API 8 1/2'' IADC637 tricone bit for well drilling/high qualitydrill bitAPI 8 1/2'' IADC637 tricone bit for well drilling/high qualitydrill bitAPI 8 1/2'' IADC637 tricone bit for well drilling/high qualitydrill bitAPI 8 1/2'' IADC637 tricone bit for well drilling/high qualitydrill bitAPI 8 1/2'' IADC637 tricone bit for well drilling/high qualitydrill bitAPI 8 1/2'' IADC637 tricone bit for well drilling/high qualitydrill bit



rock drill button bit( tricone bit for well drilling )

1.Deatails:



Available sizes:

60mm,65mm,76mm,93mm,95mm,98mm(3 7/8”),101.6mm,114mm,118mm,120mm,127mm(5”)

130.1mm(5 1/8”),133.3mm(5 1/4”),139.7mm(5 1/2”),142.8mm(5 5/8”),149.2mm(5 7/8”)

152.4mm(6”),155.5mm(6 1/8”),158.7mm(6 1/4”),161.9mm(6 3/8”),165.1mm(6 1/2”)

190.5mm(7 1/2”),193.6mm(7 5/8”),200.0mm(7 7/8”)

212.7mm(8 3/8”),215.9mm(8 1/2”),222.2mm8 3/4”)

241.3(9 1/2”),244.4(9 5/8”),250.8(9 7/8”)

269.8(10 5/8”),295.3(11 5/8”)

311.1(12 1/4”),346.0 (13 5/8”),349.2(13 3/4”)

374.6(14 3/4”)

381(15”),393.7(15 1/2”),406.4(16”)

444.5(17 1/2”),508(20”),558(22”),609.6(24”)

660.4(26”)

2.Available models:



Steel tooth

(IADC)

111, 121,131

117,124,126,127,136,137

211,311

216,217, 227

TCI

(IADC)

415,435, 417,437

515,525,535,545, 517,527,537,547

615,625,635,,617,627,637,737

512,522,532,612,622,632,732

 3.characteristic



series

                        characteristic

Soft formation TCI tricone bits

The soft formation TCI tricone bits are used to drill low compressive

strength, very soft formations. This bit maximized to use of both conical

and chisel tungsten carbide inserts of large diameters and high projection.

This cutting structure design, combined with maximum cone offset,

results in high bit penetration rates. The deep intermesh of cutter rows

prevents bit bailing in sticky formations.



Medium formation TCI tricone bits

The medium formation TCI tricone bits features aggressive chisel tungsten

carbide inserts on the heel rows and inner rows. This design provides a fast

 drilling rate and added cutting structure durability in medium to medium

hard for mations. The HSN rubber O-ring provides adequate sealing for

bearing durability.



Hard formation TCI tricone bits

The hard formation TCI tricone bits can be used to drill hard and abrasive

formations. Wear resistance tungsten carbide inserts are used in the outer

 rows to prevent loss of bit gauge. Maximum numbers of hemispherical

shaped inserts are used in all rows to provide cutter durability and long life.



Medium hard formation TCI tricone bits

The medium hard formation TCI tricone bits features robust chisel tungsten

 carbide inserts on the heel row and conical on the inner rows. This design

provides a fast drilling rate and added cutting structure durability in medium

to medium hard formations. The HSN rubber Oring provides adequate

sealing for bearing durability.





4.Packing and delivery

Packing: wooden case or as your requirements

Delivery: depend on the contract

5.Payment

Payment: T/T Western Union





I am Cherish at your service at any time!

All sizes and IADC codes of drill bits are available. Special requirements of different models can be customized.
