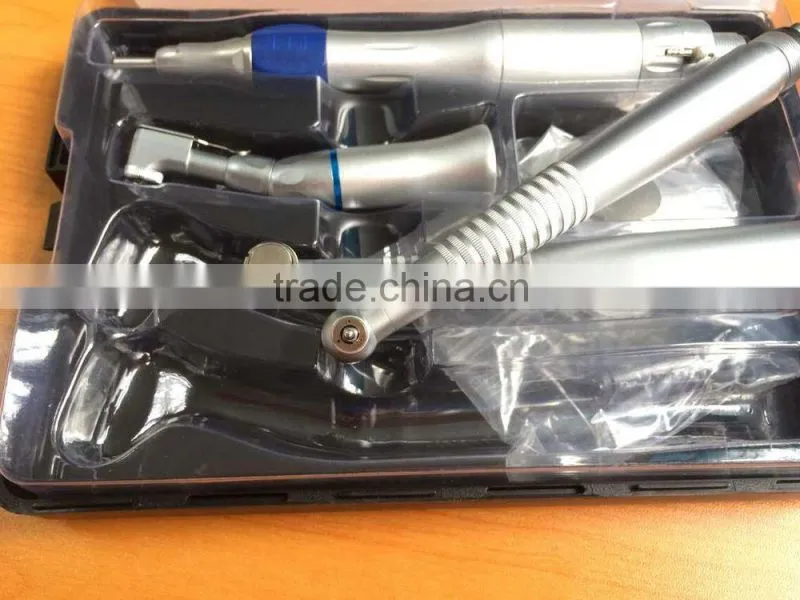

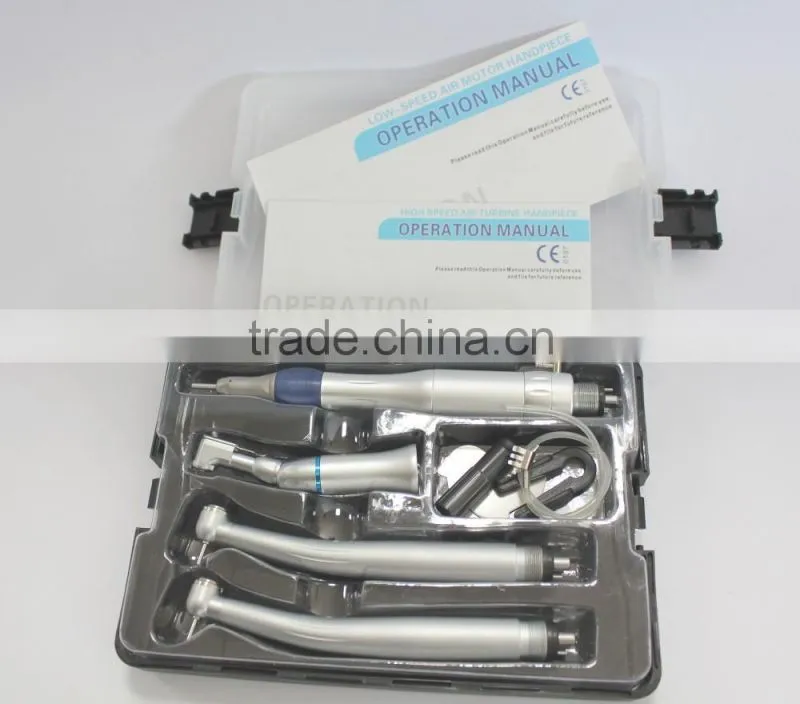

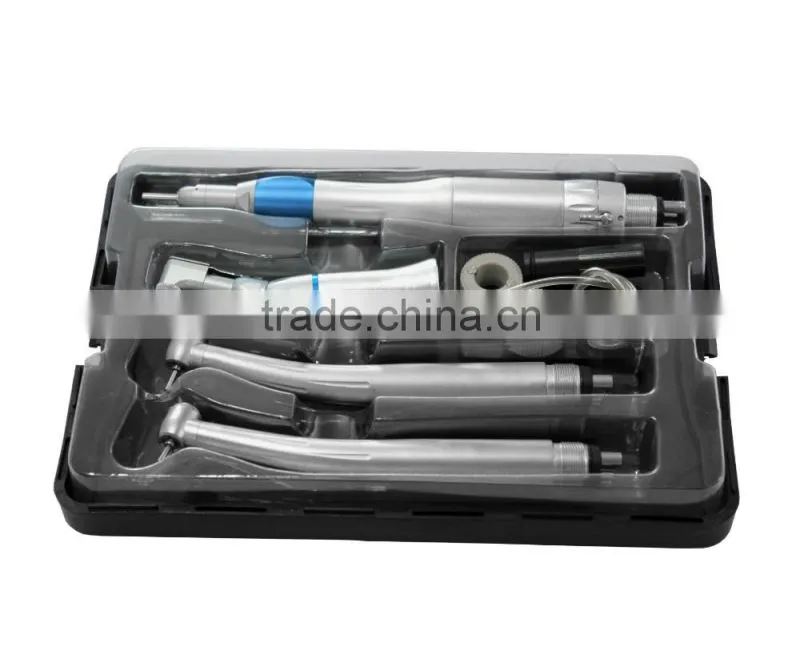

low speed handpiece and high speed handpiece ,handpiece kit

dental drill low speed handpiece and high speed handpiece ,handpiece kit

Model type: high speed handpiece and low speed handpiece

Model No.: LY-13-3

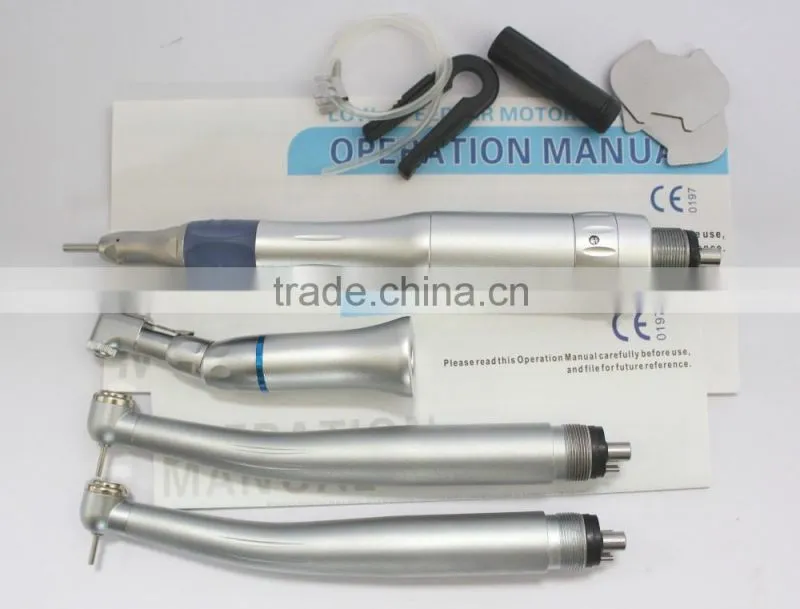

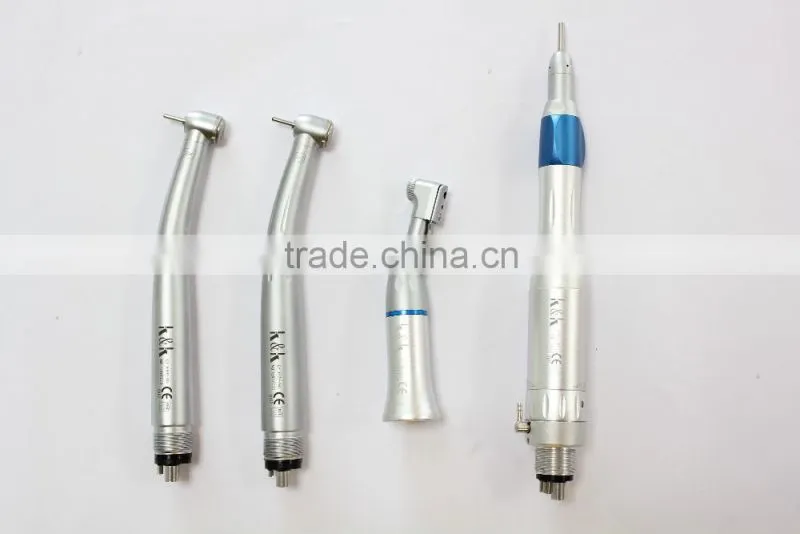

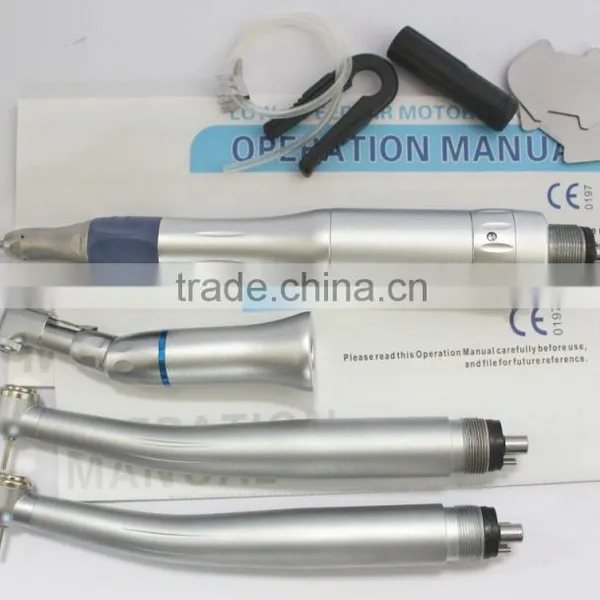

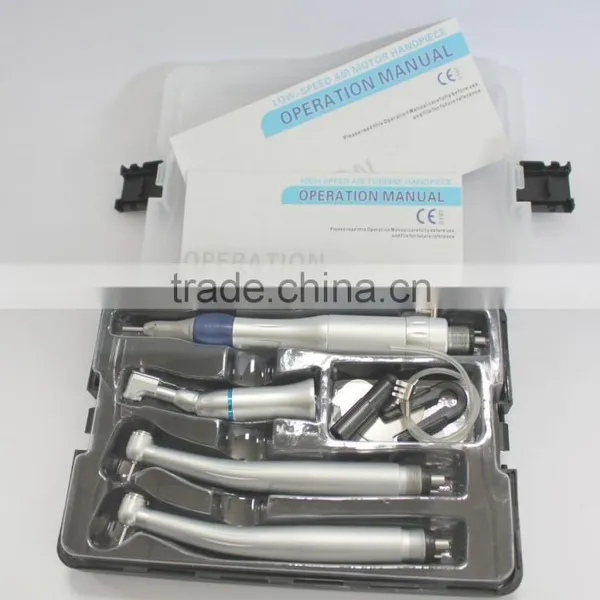

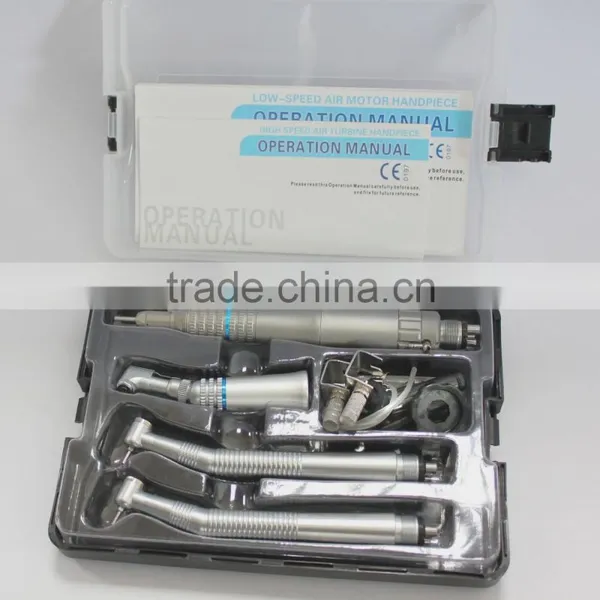

Advantage

High speed handpiece
*2pcs high speed handpiece
*1pc contra angle
*1pc straight head
*1pc low speed air motor
*high speed standard handpiece
(type:pushbutton/wrench)
*working air pressure:0.22~0.2
4mpa
*water pressure:198ka(2kg)
*rotation speed:>320,000r/min
*Noise:≤65db

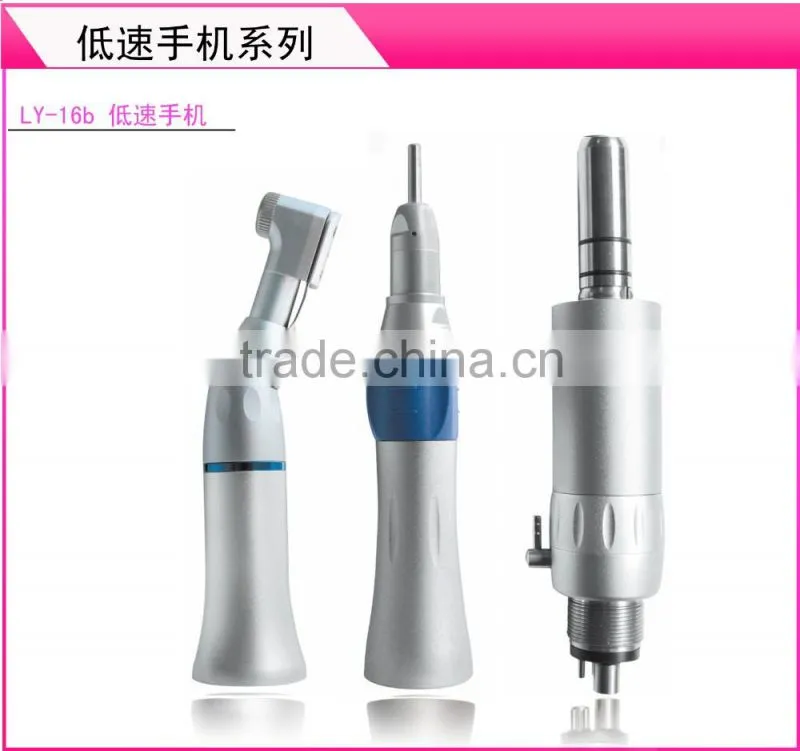

Low speed handpiece
*1:1ratio
*with external cooling systerm
*working air pressure:245-392
kpa(2.5~4.0
*water pressure:198ka(2kg)
*rotation speed:22.000~27.000r/min
*noise:≤65db

 .

Self-illuminated ,just a little air can generate sufficient power,superior brightness

can be used without connecting circuit

push button cartridge

Triple spray and single  spray

135℃Autoclavable

Technical deta

Air pressure:0.2-0.3mpa

Rotation speed:350,000-400,000R.P.M.rpm

Bur applicable:1.595~1.600mm(ISO1797-1)

Noise sound:≤70db

clan and lubricate

air motor:load the pipe from motor ,For example,drip some lubrication into the air pipe at the botton

lubricate it after every use

straight hnapiece:turn the spray head to the mouthof lubrication,when unloading the bur,put the spray head to the handpiece and ensure that the head of hindpiece show sign of oil

Don`t  invert oil tin when using lubrication

Contra angle handpiece

loosen the winding part of SH,take the conducting gear out,Lubricate the conduction part,screw the clip when lubricating the heed of handpiece,use lubrication after treatment or before disinfection,

Product introduction

*special appearance designed,cooling syeterm inside.Big clamp power,push button wrenth

*Head changerable,expand the use function of angle handpiece

*suit high speed bur,prophy cup

*dismounnting easily,fix easily

*convenice switch working speed and two directional

*when you open the water spray switch ,and you can cooling handpiece

*suit any kinds of brand of international handpiece

*Inner channel :without pipe,without waier mass,and autoclaving whole body

Ways of loading and unloding burs

*Straight handpiece:when unloding the bur ,please turn the stuck,until you hear a sound.And loading the bur,you turn the stuck,to the oppsite side.When you hear a sound,The bur has been fixed

*Contra angle handpiece:screw the clip and put the botton of bur to the axle center,then turn the clip to the original place,unloading  the bur.screw the clip and take the bur out

Cautions

Don`t use damaged or winding burs,the damaged or winding burs will cause accident if use.

Burs are hard to pull out if the gully part has damaged.
Please keep the clamping part clean,if it was stained,the cartridge will shock or the strength of clamping part will waeken.

Please fix the burs or the bearing will be damaged at early stage.Don`t use motor when the clip is  loose or burs are not on.

Please install the burs or standard stick even not in usage.

warranting time:

half year for bearing

one year for light and main body

optional configuration

                      two holes/four holes

                      torque head/standard head

                      A bearing/A+bearing

                      push button/wrench

CE & ISO Certificate

Our company has passed ISO9001:2000 and iso13485: 2012. Most of the products have

 obtained CE certification and domestic medical product registration certificate(registration    number:Cantonese food drug safety machinery (quasi) word 2012 no. 2550770,255771,  255772).

 As a booming global company, our customers are from different countries, different continents. With strong productive, we can supply wholesaling and retailing. OEM is available for all products, meanwhile, we provide neutral packaging and instructions, printing customers’ logo

 trademark.

 We insist on the business tenet and operation principle “Customers first,Quality first, Reasonableprices, Good service, Integrity, Sincerity and Trustworthiness” to develop and provide the best products to you. You are warmly welcome to cooperate with us to create a prosperous future!

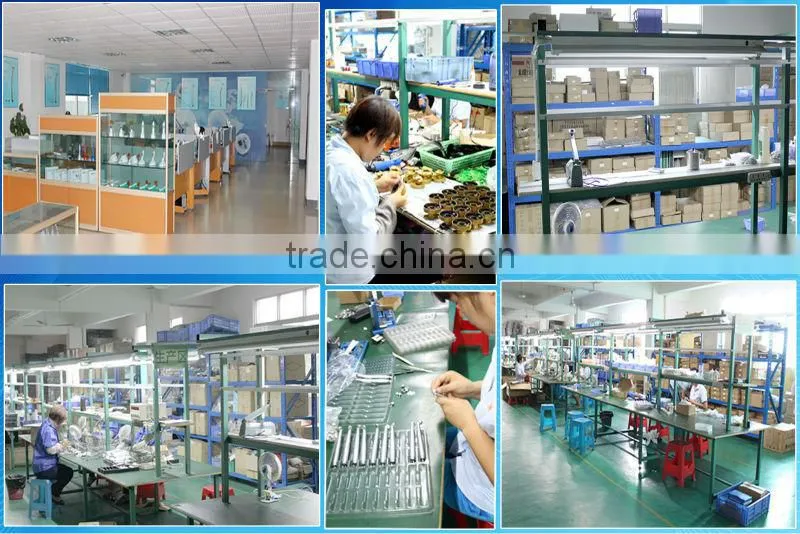

 Workshop
