Home > Products > Steel Wire > 1.8mm, 2.2mm Galvanized Wire, Galvanized Iron Wire, Galvanized Steel Wire
1.8mm, 2.2mm Galvanized Wire, Galvanized Iron Wire, Galvanized Steel Wire
- SHANGHAI
- T/T
You May Like
Product Details
| Steel Grade | galvanized wire | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 1.24-5.50mm | Place of Origin | Zhejiang, China | |
| Type | Galvanized | Application | Manufacturing | |
| Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
| Model Number | galvanized wire | Brand Name | wansheng |
Product Description
1.8mm, 2.2mm Galvanized Wire,Galvanized Iron Wire, Galvanized Steel Wire
1.Raw Material: 45,65,70, 72A, 72B, 82B, 65Mn
2. Surface Coating: Hot Dipped Galvanized, Electro Galvanized
3. Characteristic: High tensile strength,small tolerance
Shiny surface, good corrosion prevention
4. Packing type:Spool; Coil
5. Application: Galvanized wire, electro galvanized wire, hot dipped galvanized wire are being used for stranded conductors in overhead power circuitry
Technical parameters
Wire dia: 1.24-5.5mm; Tensile Strength:1340~1290Mpa
Nominal Diameter | Tensile Strength | Stress at 1% Elongation | Twist | Elongation | Standard |
mm | Mpa | Mpa | Times/360°C | Lo=250mm | As per GB,EN,IEC,JIS,ASTM standard,as well as customer's request |
1.24-2.25 | ≥1340 | ≥1170 | ≥18 | ≥3% | |
2.25-2.75 | ≥1310 | ≥1140 | ≥16 | ≥3% | |
2.75-3.00 | ≥1310 | ≥1140 | ≥16 | ≥3.5% | |
3.00-3.50 | ≥1290 | ≥1100 | ≥14 | ≥3.5% | |
3.50-4.25 | ≥1290 | ≥1100 | ≥12 | ≥4% | |
4.25-4.75 | ≥1290 | ≥1100 | ≥12 | ≥4% | |
4.75-5.50 | ≥1290 | ≥1100 | ≥12 | ≥4% |
NOTE:Providing engineer design as per customer's request.

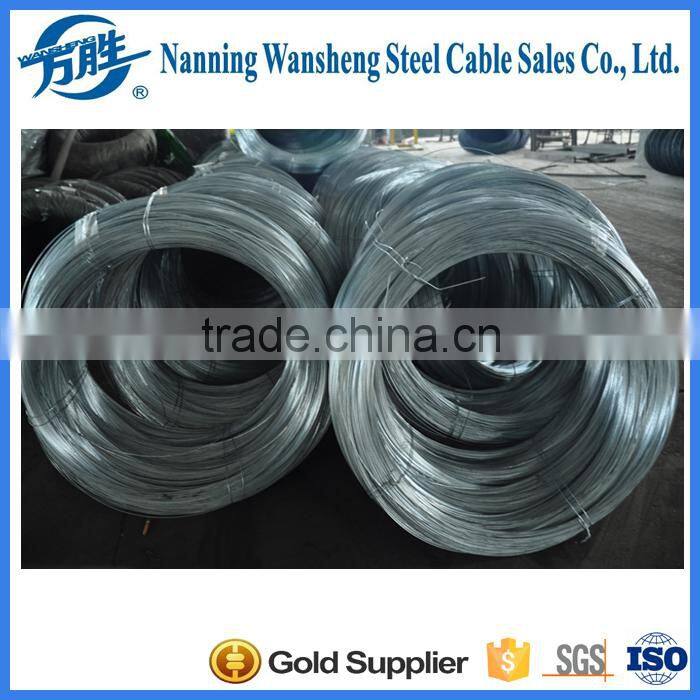

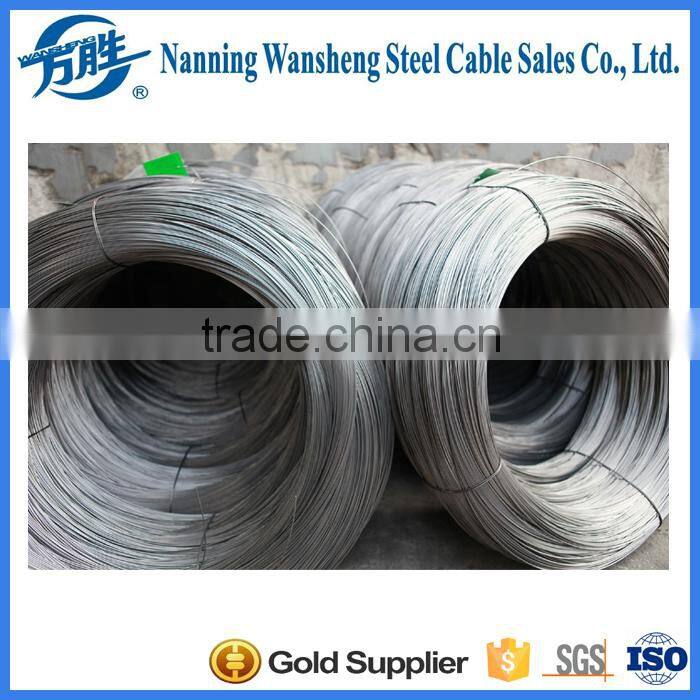

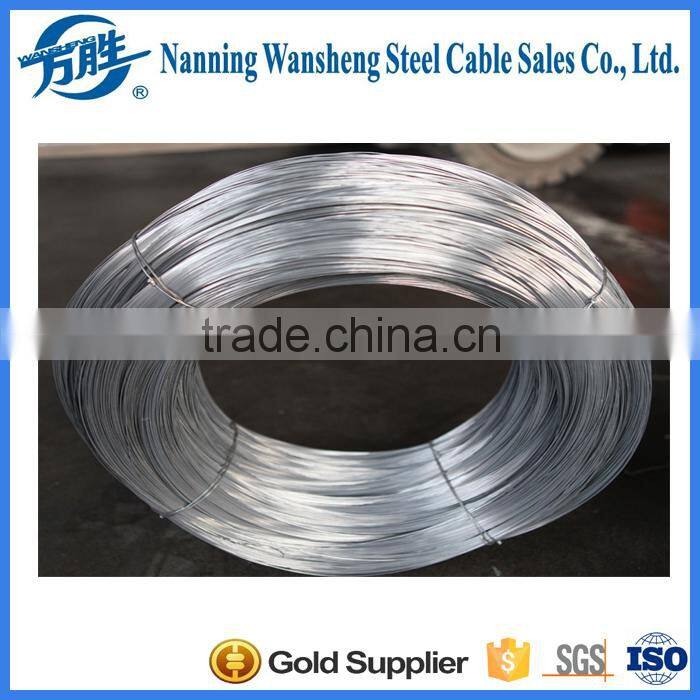

galvanized wire product picture:

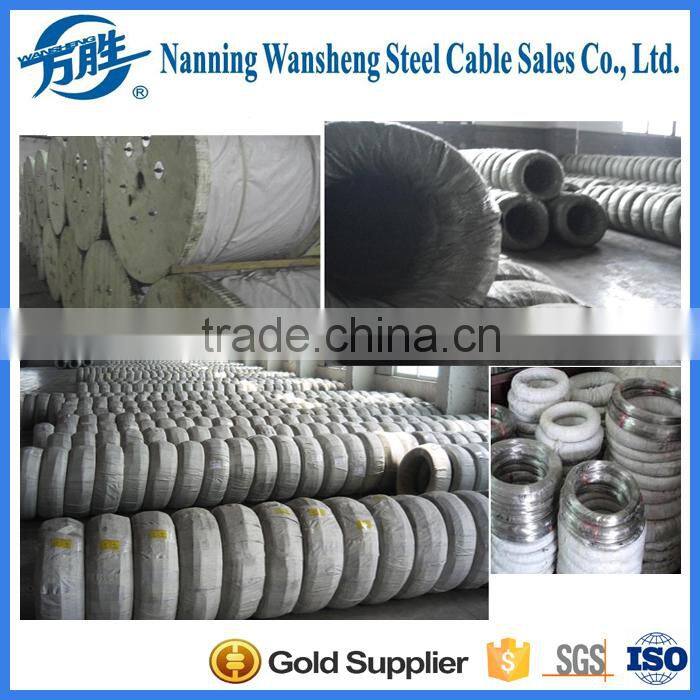

galvanized wire packing picture:
galvanized wire production line picture:
Factory picture:
Contact Us
- Nanning Wansheng Steel Cable Co., Ltd.
- Contact nameLi hua Wang Chat Now
- Phone86-771-4989933,13707886991
- AddressNo.8, Tiyu road, Jiangnan district, Nanning,Guangxi, Nanning, Guangxi
