Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Saw Machine > Woodworking Mult-blade Saw Machine

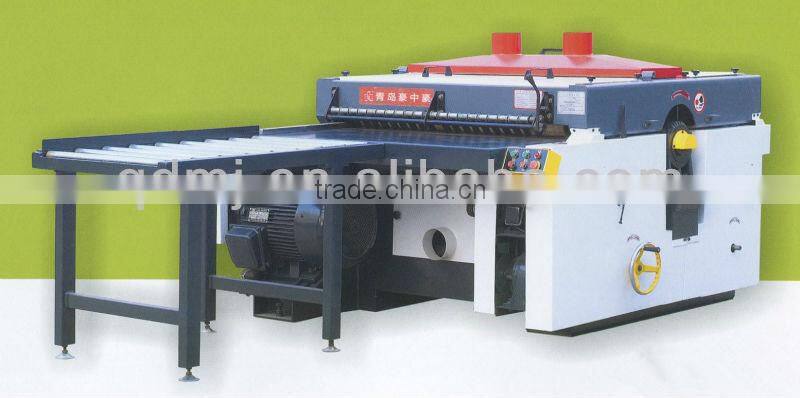

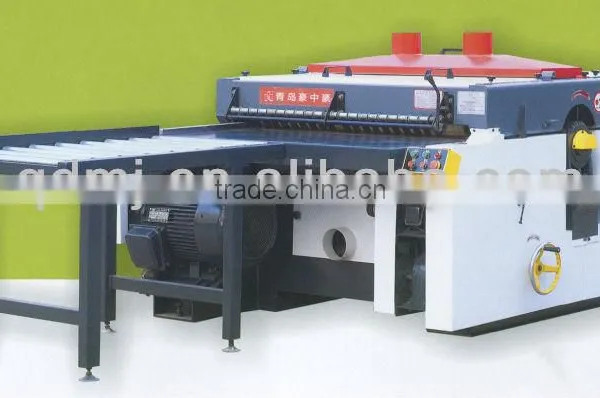

Woodworking Mult-blade Saw Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New, New

Type:

Other, Rip Saw, Other

Use:

Woodworking

Contact Supplier Request Quote Chat Now

Qingdao Haozhonghao Woodworking Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Rip Saw, Other

Use Woodworking

Style Horizontal

Place of Origin China

Brand Name HZH

Model Number MJ1425

Voltage 380V

Power(W) 17KW

Dimension(L*W*H) 2200*1800*1500mm

Weight 1600kg

Certification ISO9001

Specifications

1 with higher stability
2 Max working width 1280mm
3 Main motor power 15kw
4 Certificate:ISO9001

Product Description

We supply high quality Woodworking Woodworking Mult-blade Saw Machine MJ1425

Model	MJ1425(6)
Saw blade size	Φ250*Φ75mm
Spindle rotary speed	3500rpm
Max working width	1280mm
Working thickness	5-50mm
Min working length	500mm
Feeding speed	4-12m/min
Main motor power	15kw
Feeding motor power	1.5kw
Voltage	380V/50Hz
Dimension	220018001500mm
Feeding table dimension	1300800250mm
Weight	1600kg

Function

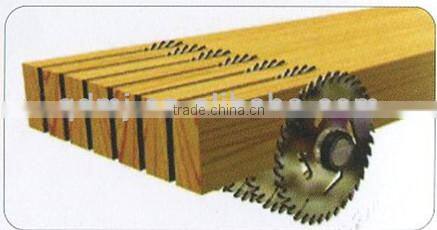

It can be used to grooving on solid wood, MDF, composite board and non wood filler, or cut the board into narrow strips.

Characteristics

The spindle of saw can lift and down, which is suitable for different kinds of wood material.

Welding machine frame has enough strength and rigidity to provide solid basis for power cutting and smooth feeding.
Longer feeding platform and reference guide can make sure of high process precision.
Feeding platform and outfeed platform separately has 6 groups of active feeding rollers to make sure of smooth feeding power.
The upper press rollers make all the press rollers press the panel tightly and make sure of smooth feeding.
Large dust removing cover can remove the dust thoroughly and make sure of good working surroundings.
The machine is powered off as soon as opening the dust removing cover, so it can make sure of the personal safety.

Packaging & Shipping

Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment, or L/C

Package: Plastic film packing

Delivery: About 30 days after receive the down payment.

Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
