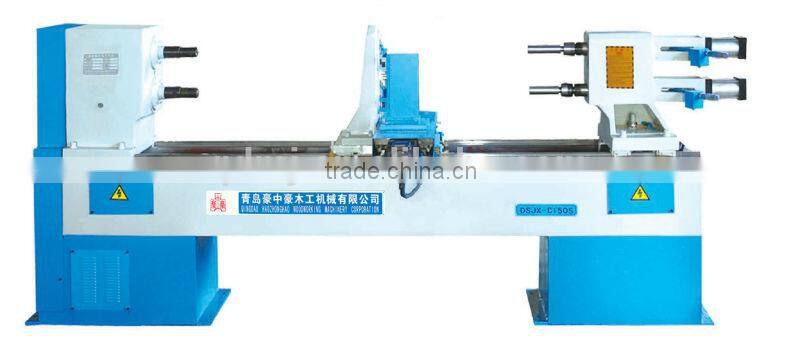

Wood Double Spindle CNC turning Lathe Machine
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HZH | Model Number | DSJX-C150S | |
| Voltage | 380V | Power(W) | 7KW | |
| Weight | 1500kg | Dimension(L*W*H) | 2500*1000*1300mm | |
| Certification | ISO9001 |
Product Description
Specifications
1 Max cutting length 1500mm2 Max cutting diameter 320mm
3 ISO 9001
We supply Wood Double Spindle CNC Turning Lathe Machine DSJX-C150S
Model | DSJX-C150S |
Cutting length | 20-1500mm |
Max cutting diameter (Single spindle) | 320mm |
Max cutting diameter (Double spindles) | 180mm |
Number of working spindles | Two |
Rotary speed of main spindle | 3500r/min |
Total power | 7kw |
Main motor power | 5.5kw |
Loading method | Manual |
Workpiece clamping model | PNEUMATIC |
Numerical control system | CNC |
Overall dimensions | 2500×1000×1300mm |
Weight | 1500kg |
Voltage | 380V 50Hz |
CNC Control panel
Validity: 60 Days
Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment, or L/C
Package: Plastic film packing.
Delivery: About 30 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
