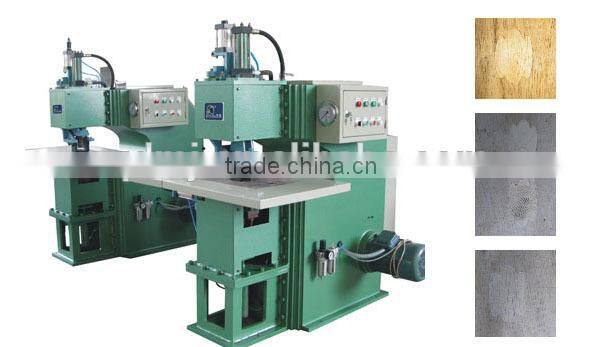

We supply high quality Woodworking Veneer patcher machine
Model |
WB60 |
WB100 |
WB130 |
WB150 |
Mending veneer thickness |
0.8~3mm |
|||
Mending veneer size(butterfly model) |
40×60mm |
60×100mm |
75×130mm |
90×150mm |
Mending speed |
3~5s/time |
|||
Power |
4.25kw |
6.05kw |
||
Compressed air |
4~6kg/cm2 |
|||
Normal oil pressure |
16Mpa |
|||
Diameter of cylinder |
Φ50 mm |
Φ63 mm |
Φ80 mm |
Φ80 mm |
Overall dimension |
1650*1300*1750(mm) |
1810L×1500W×1750H mm |
||
Approx weight |
1300 kg |
1500 kg |
||
In particular wood-based panels plywood production process, we need to repair natural defects board. For a long time, China's plywood production enterprise is mostly hand-repair method approach, even with a knife die direct repair, and can only make out shapes and blocks, and then manually filling and paper tape or hot melt adhesive filaments, the process material costs, labor costs are also time-consuming, depending on the mend after being significantly affect the appearance.
This veneer patching machine adopts a pressing mold, a mold and the upper and lower punches in a work process, completes all patching work automatically, fill industry gaps. The machine is suitable for a variety of wood veneer repair. It is simple, mending speed high, save a lot of manpower, reduce production costs and improve the quality level of the board.
Package: Plastic film package.
Delivery: About 20 days after receive the down payment
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Guillotine, Veneer Slicer and Grinder.
We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is ; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts.Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port
How to contact us?
More details please contact to Vivian Qu
Email: qwz(at) Web:
Skype: quvivian HP/whatsapp: 0086-15315014218
Tel: 0086-84822277 QQ:81773634
