Help CenterSolid Wood/Rubber Wood Planer Sander Machine
Related Products
-
Planer Sander MachineUS$ 10,000 - 15,000MOQ: 1 Set -
Wood Planer Sander MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Solid Wood Planer Sander MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Woodworking Solid Wood Planer Sander MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
SFE130 R-RP Woodworking Two Heads Wide Belt SanderUS$ 10,000 - 12,000MOQ: 1 Set
We supply SFE130KRP woodworking wide belt planer and sander
Model |
SFE130KRP |
SFE130KR |
Width of sanded panel |
40-1300mm |
40-1300mm |
Thickness of sanded panel |
3-120mm |
3-120mm |
Speed ofplaning roller |
30m/s |
30m/s |
Speed ofabrasive belt on 1st unit |
18m/s |
18m/s |
Speed of abrasive belt on 2nd unit |
12m/s |
—— |
Feeding speed |
6-30m/min |
6-30m/min |
Size of abrasive belt |
1330×2500mm |
1330×2500mm |
Diameter of planer |
Φ180mm |
Φ180mm |
Power of planing roller |
22kw |
22kw |
Power of abrasive belt on 1st unit |
22kw |
22kw |
Power of abrasive belt on 2nd unit |
15kw |
-- |
Conveyor motor power |
4Kw |
4Kw |
Lifting motor power |
0.25Kw |
0.25Kw |
Brush motor power |
0.37Kw |
0.37Kw |
Working pressure |
0.55MPa |
0.55MPa |
Compressed air consumption |
0.2m3/h |
0.2m3/h |
Pressure relief device required |
>13000m3/h |
>13000m3/h |
Speed required for cleaning equipment |
25-30m/s |
25-30m/s |
Dimensions |
2500×2260×2180mm |
2500×1850×2180mm |
N.W. |
4000kg |
3500kg |
Voltage |
380V 50Hz |
380V 50Hz |

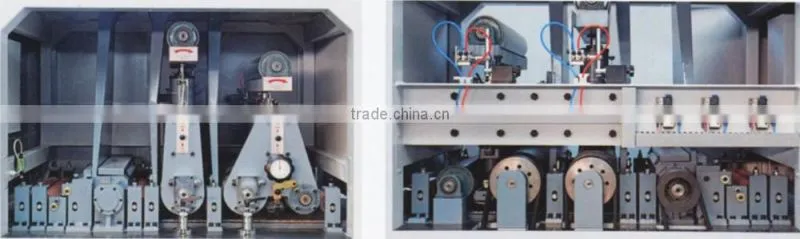

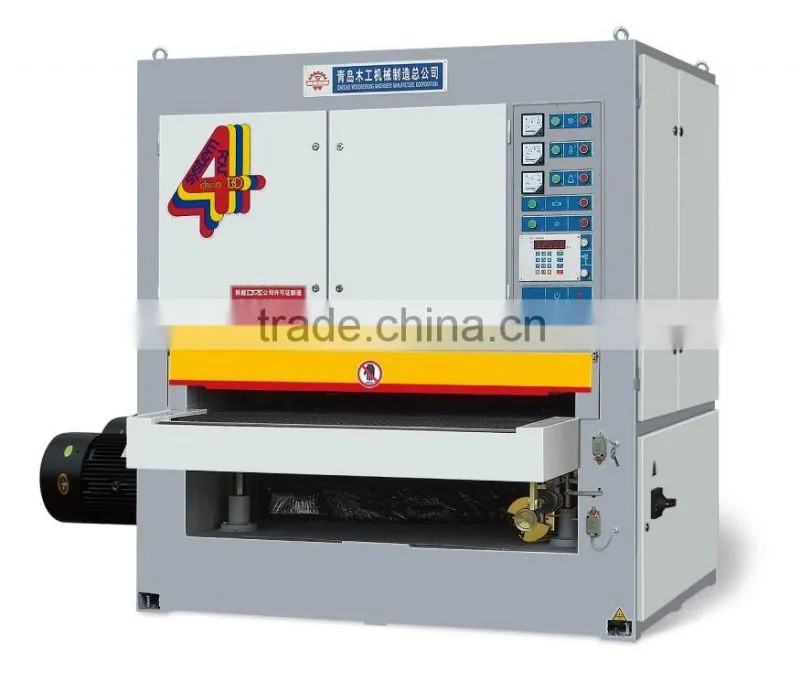

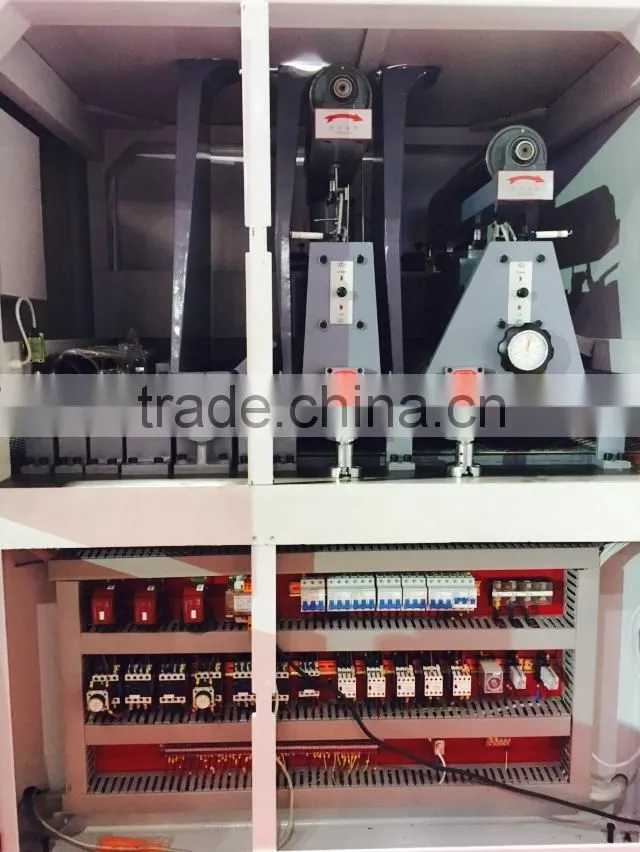

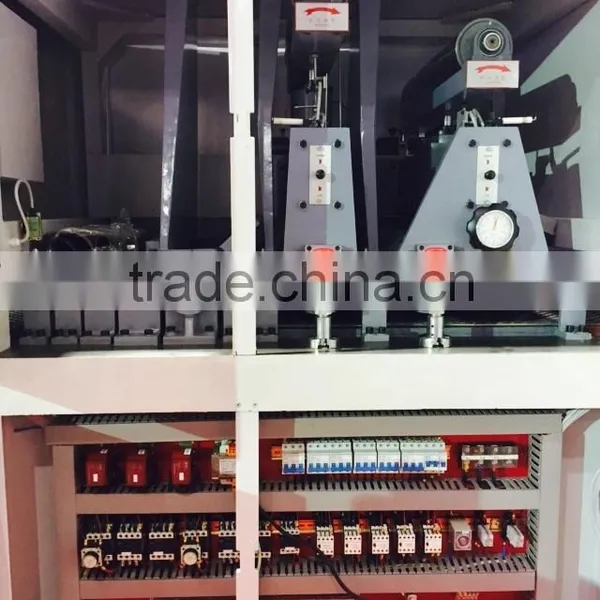

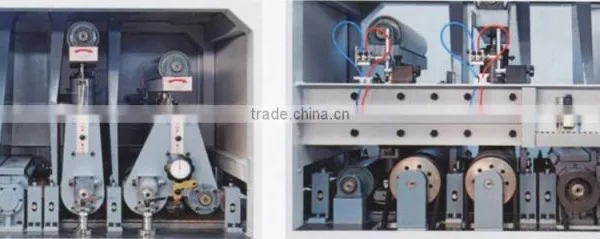

This machine is mainly used for solid wood board, panel, finger joined panel, door, flooring etc, with advanced technology, high precision, reasonable structure and easy operation

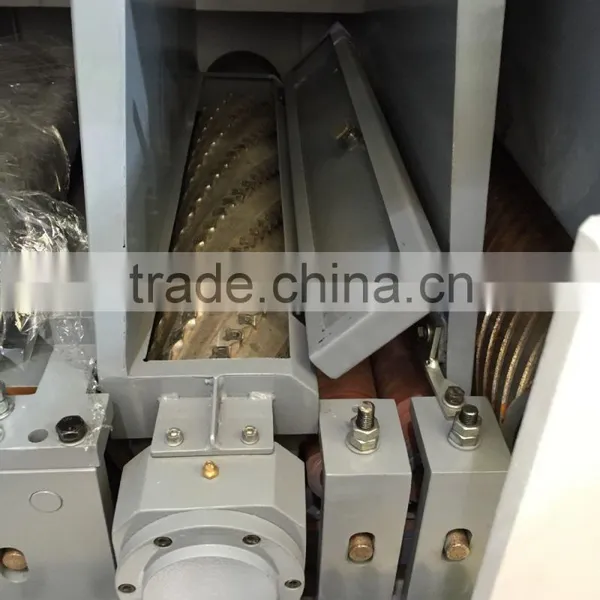

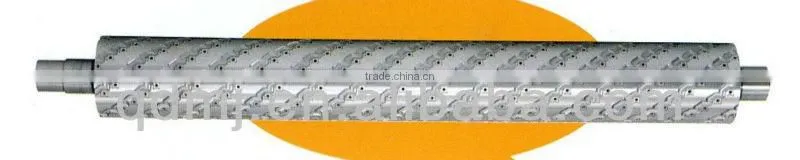

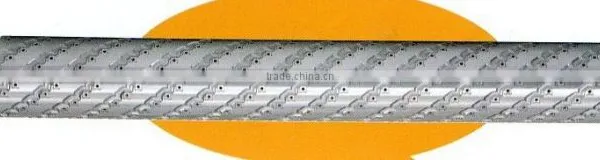

1With super large helical cutter can work stable
2 Cut off a big quantity with lower noisy and fine surface
3 With anti-tick device to protect operator
4 Wooden dust cleaned by the brusher
5 Machine will not start when air pressure is not enough.
6 Adopt pressure shoes to avoid damaging the head of panel during sanding
