Main Parameters | |

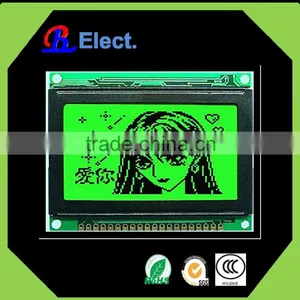

| Item | 12864 COB lcd display |
| dimension size | 77mmx55mmx12mm |
| viewing area | 60mmx32.4mm |
| glass thickness | 1.1mm |
| view angle | 6:00 clock |
| operating temp | -10--------+60 |
| storage temp | -20------+70 |
| display type | STN |
| pitch | 2.54mm |
| supply voltage | 3.3v |
| Duty/Bais | 1/64D 1/9B |
| Backlight size | could adjust |
| backlight color | white |
| connectors | DIP |
| connection type | pin |
| ODM&OEM | available |
| Competitive Advantages |
| 1.Size can be customed ,backlight chosed by yourself |
| 2.Wide view angle |
| 3.High Quality, RoHS ,SGS compliant. |
| 4.Pruduced by own factory , Reasonable Price |
| 5.Best Service. We provide best pre-sales and after-sales service to you |
| 6.Small MOQ orders can be negotiated |
| 7.Samples available on request |
Zhejiang Yueqing Bolong Electronic Co.,Ltd , , a manufacturer is professional in research and development ,design, custom,production and sale of Lcd display, LCM module. Established in 2009, designed and pruduced more than 3000 models, are widely used in instrument, aviation equipment, marine equipment,medical equipment,photovoltaic instrument, tax- control system,household appliances,gym equipment and other terminal information display fileds.The main products are segment-LCD,TN-LCD,HTN-LCD,STN-LCD,FSTN-LCD,Black-Mask -LCD,VA-LCD. For LED backlight, there are three types: DIP, SMD,HCD. Besides, LCM module include COG-LCM and COB-LCM.Is a high and new Technology enterprise, have passed the International GSG Test certification ,own full automatic production lines of high-tech equipments and stronger technology strength, with the excellent of quality and good service win market in different fields.
workshop
Payments: We only support the payment is T/T,you should pay the 30% advance deposit before your lcd produced,after the lcd well done your should pay the 70% for the left ,then we will deliver them to you.
Shipments:mapping:3-5days;sampling:LCD:12-15days,COB module:18-22days,COGmodule:
20-25days,with the program design: time to be determined;deliver:LCD:28-32days(for-normal);COB module:32-35days: COG: module:38-45days.
Telephone:0086-0577-62662228(Mr.Jim Wang)
Fax:0086-0577-62799329
Website: lcmdisplay.en.china.cn
Address:YueQing economic development zone
welf 17road ,No.261
