Specifications
1 Width of sanded panel 40-1300mm
2 sanding machine ISO 9001
3 Feed speed 4-30m/min

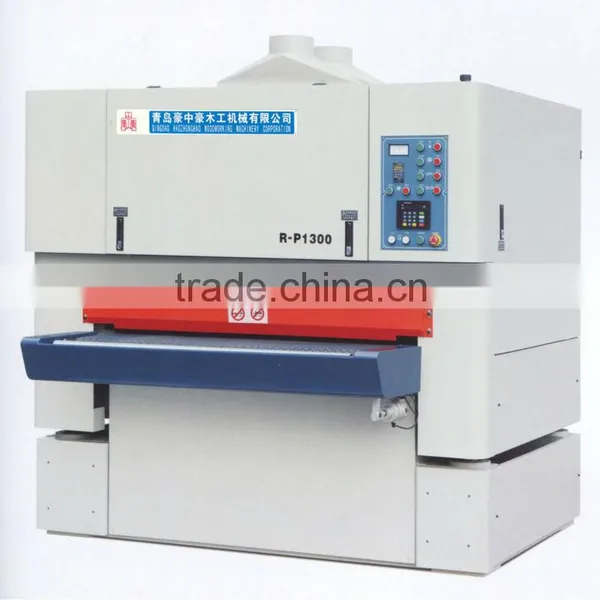

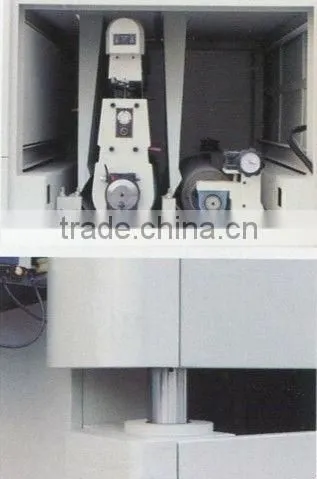

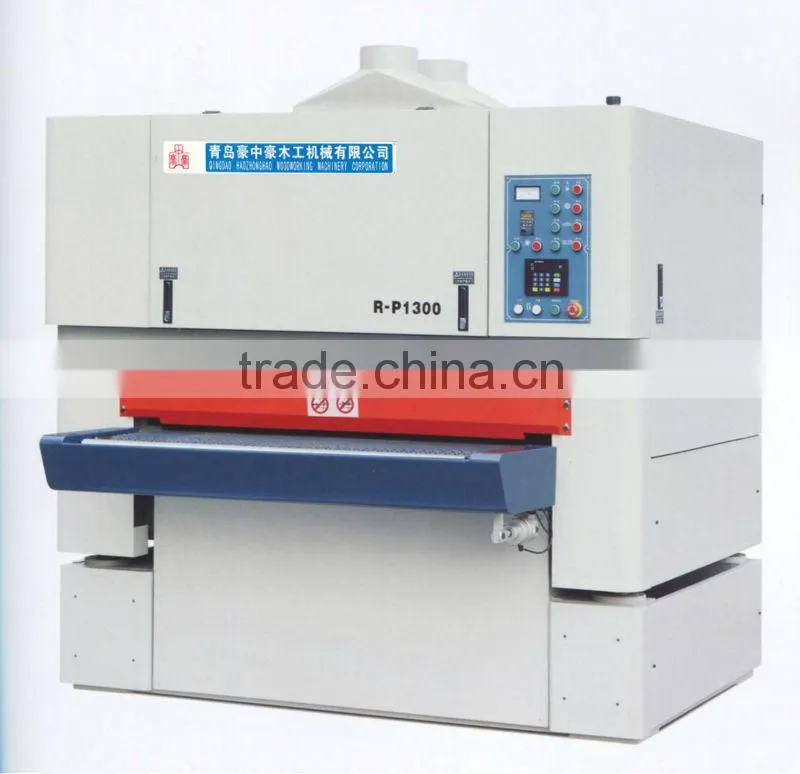

We supply high quality wood Primer sander machine
This machine is mainly used for UV, PU, PE, NC lacquered sanding and polishing. After processed by this machine, the plank surface is smooth and uniform. It is ideal equipment machine for furniture, floor board, door-windows, and craft.
Specifications |
BSGx2113P |
BSGx2110P |
BSGx2109P |
BSGx2106P |
Max Working Width |
1300mm |
1000mm |
900mm |
600mm |
Working thickness |
2.5-85mm |
2.5-85mm |
2.5-85mm |
2.5-85mm |
Min working length |
200mm |
200mm |
200mm |
200mm |
Speed of abrasive belt |
20m/s |
20m/s |
20m/s |
20m/s |

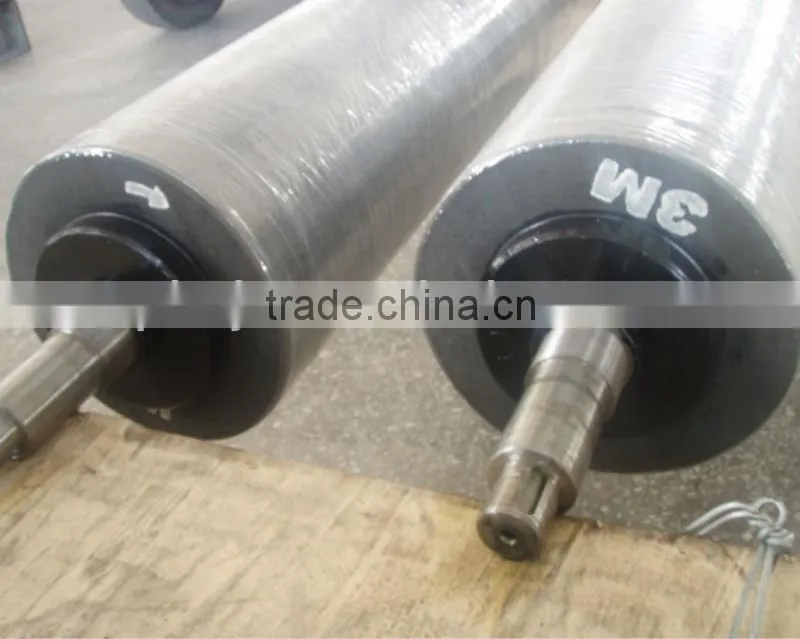

Polish Roller Diameter |
240mm (3M roller) |
240mm (3M roller) |
240mm (3M roller) |
240mm (3M roller) |
Feed speed |
3-30m/min |
3-30m/min |
3-30m/min |
3-30m/min |
Size of abrasive belt |
1320*2200mm |
1020*2200mm |
920*2200mm |
620*2200mm |
Total motor power |
27.12kw |
23.62kw |
17.62kw |
7.92KW |
Power of abrasive belt |
15Kw |
15Kw |
15Kw |
15Kw |
Power of polish wheel |
4Kw |
4Kw |
4Kw |
4Kw |
Conveyor Motor |
4Kw |
4Kw |
4Kw |
4Kw |
Lift motor power |
0.37Kw |
0.37Kw |
0.37Kw |
0.37Kw |
Dust collector motor power |
0.25Kw |
0.25Kw |
0.25Kw |
0.25Kw |
Working pressure |
0.5Mpa |
0.5Mpa |
0.5Mpa |
0.5Mpa |
Compressed air volume |
≥5000M3/h |
≥5000M3/h |
≥5000M3/h |
≥5000M3/h |
Dimensions |
2000*1980*2100mm |
2000*1560*2100mm |
1460*1350*1760mm |
1460*1100*1760mm |
NW |
2600kg |
2100kg |
1700kg |
1200kg |
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max working width of Sanding machine?
Usually 600- 1300mm. Also It can produce as clients requests.
