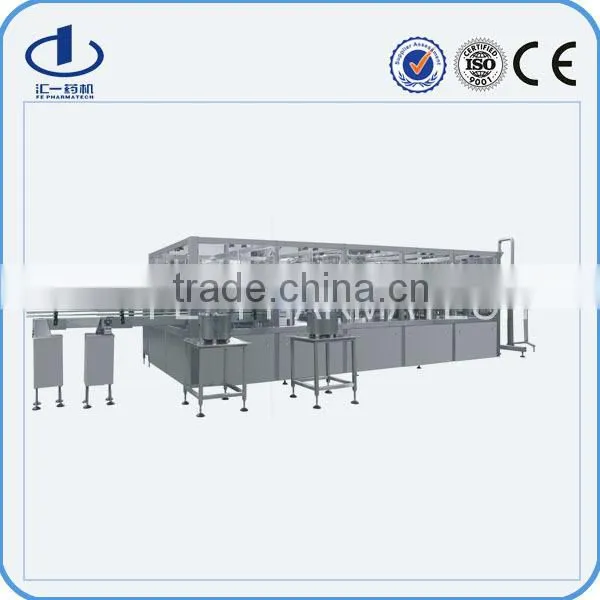

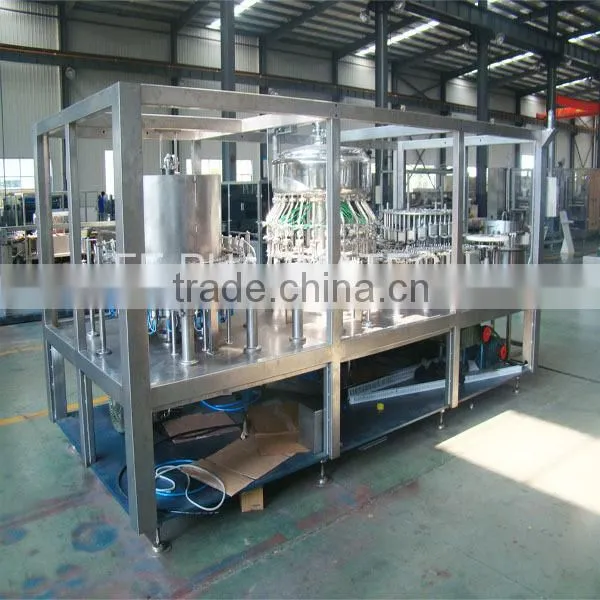

Automatic plastic bottle iv solution production line
Main application:
1. Automatic plastic bottle iv solution production line is contains bottle-washing, filling, and cap-sealing three stations as a whole.

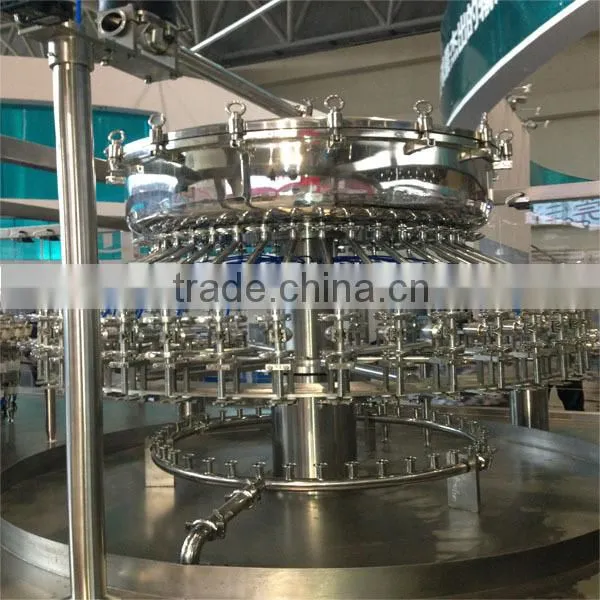

2.Washing, filling and sealing three stations adopt rotary type.
3.The sealing station uses hot-melt welding to seal cap.
4.The machine uses mechanical hand to catch bottles neck for location and handing-over.
5.Any scrape of bottle or bottom is not allowed.
6.This promotes production efficiency and ensures quality.
Main Features
1. Compact integrated design of wash-fill-seal with smaller production area
2. Applicable to any round or flat IV solution bottles with different shapes
3. Voice alarm when fault, and machine halt
4. PLV control, all operation data can be set, changed and kept on file
5. CIP/SIP on line
Technical Parameters
Item |
Data |
Name |
Automatic plastic bottle iv solution production line |
Production capacity |
2000~20000 bottles/hour |
Specification |
50~1000ml round or other shape PP bottle |
Bottle washing |
ionic air washing, or ionic air and water washing |
Main filling medium |
Liquid such as large volume infusion |
Filling error |
±1% |
Liquid filling temperature and pressure |
40~55℃ 0.6~2kg/cm² |
CIP/ SIP |
125 ℃--30 min |
Air consumption (clean air) |
Pressure: 0.6~0.8Mpa 180(120)m³/h |
Cooling water |
250L/h, 15~20℃ |
Noise |
max.75dB |
Electric capacity |
18~35KW |
Shipping and Payment
Packing |
Export standard package |
MOQ |
1 set |
FOB price |
Please contact for new price |
Delivery time |
60days |
FOB port |
Shanghai |
Payment terms |
T/T,L/C at sight |
