1,Features
| Item | Standard Value |
| Display Type | 16characters ´ 2 lines |
| LCD Type | STN,POSITIVE(GREEN),TRANSMISSIVE |
| Driver Condition | LCD Module : 1/16Duty , 1/5Bias |
| Viewing Direction | 6 O’clock |
| Backlight Type | SIDE WHITE |
| Interface | 8-bit MPU interface |
| Driver IC | SPLC780D |
2,Mechanical Specifications
| Item | Standard Value | Unit |
| Outline Dimension | 122(L) * 44(W) * 12.3(T) | mm |
| Viewing Area | 99(L) * 24( W) | mm |
| Dot size | 0.88(W) ´ 1.05(H) | mm |
| Dot pitch | 0.98(W) ´ 1.15(H) | mm |
| Character size | 4.8(W) ´ 7.95(H) | mm |

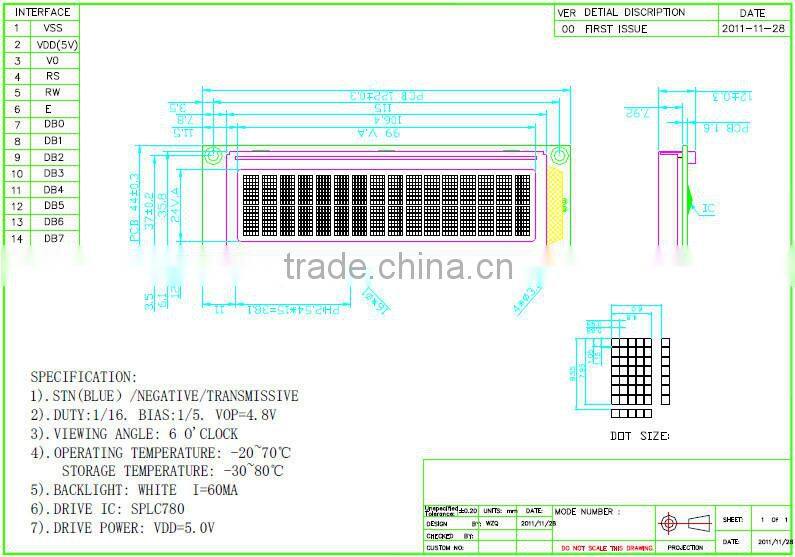

3,drawing
We are specializing in LCD display,LCD module, LED backlight.
OEM and ODM are accepted !
Our company---Zhejiang Yueqing Bolong Electronic Co.,Ltd, is a company that professional in LCD and LCM’s R&D, design, custom, manufacture and trade. Since our company was established in 2009, we have designed more than 3000 types modules. All of them are widely used in other industries, like instrument, aerospace, marine, medical, photovoltaic, tax-control, motormeter, household appliances, fitness and many other information terminal display domain.
Main products: segment-LCD, like TN-LCD, HTN-LCD, STN-LCD, FSTN-LCD, Black-LCD and VA-LCD. For LED backlight, there are three types: DIP, SMD, HCD. Besides, we are expertise in COG-LCD and COB-LCM. Therefore, we are certified as a Top-enterprise in new and high technology by international GSG. With full-automatic assembly line, strong technological force, excellent goods as well as best service, we successfully dominate the market.
Remember:each LCD is our commitment.
More info, pls visit our web :http://lcmdisplay.en.china.cn/
Certification
Products overview
workshop
Bolong 1602 lcd module:1) inside use blister box 2) outside use carton( special requirement accepted
shipments: Express options as DHL,UPS,TNT,FedEx, EMS, Air shipping and Sea shipping upon your request
delivery time: 35-38 days after payment .
Q1: When is your delivery date? What if we place a large order? A1: Normally, we will arrange the delivery within 28-32 days after payment. About large orders,we can offer urgent service and advance the delivery date ----within 20 days after payment.
Q2: We want to know the guarantee of your products. How long is it?
A2: We offer lifetime guarantee as long as the quality of the products matters.
Q3: We want to know whether OEM and ODM are available with you?
A3: Yes. We have this service. As long as you offer us the fuctions, designs and further information, we can help to design and produce.
More info, pls visit our web :http://lcmdisplay.en.china.cn/
