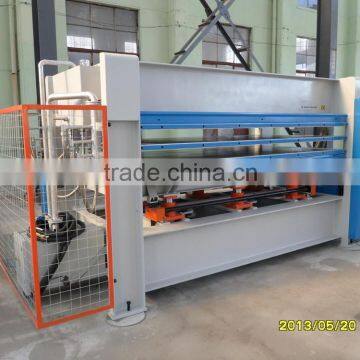

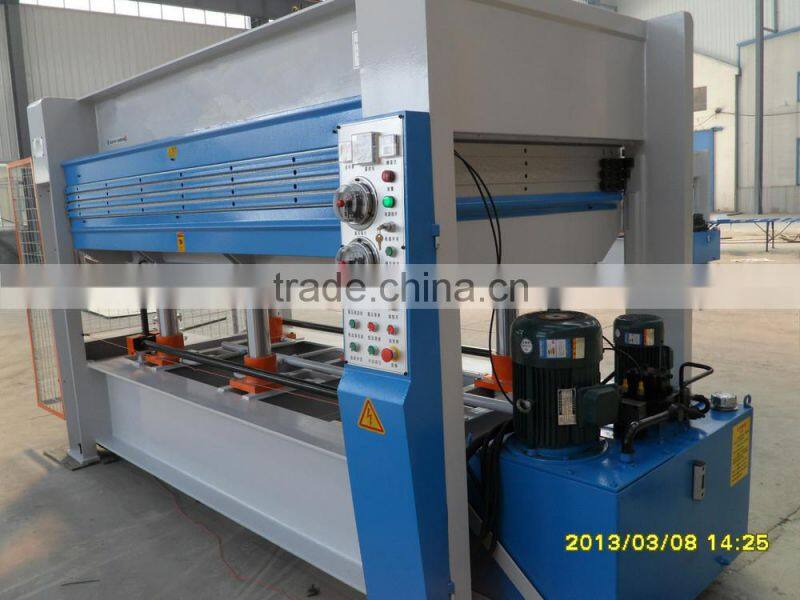

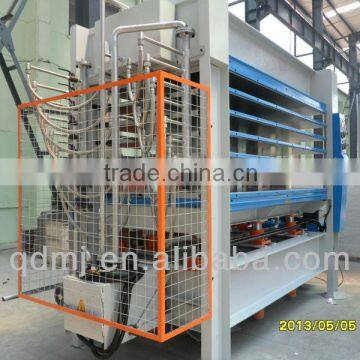

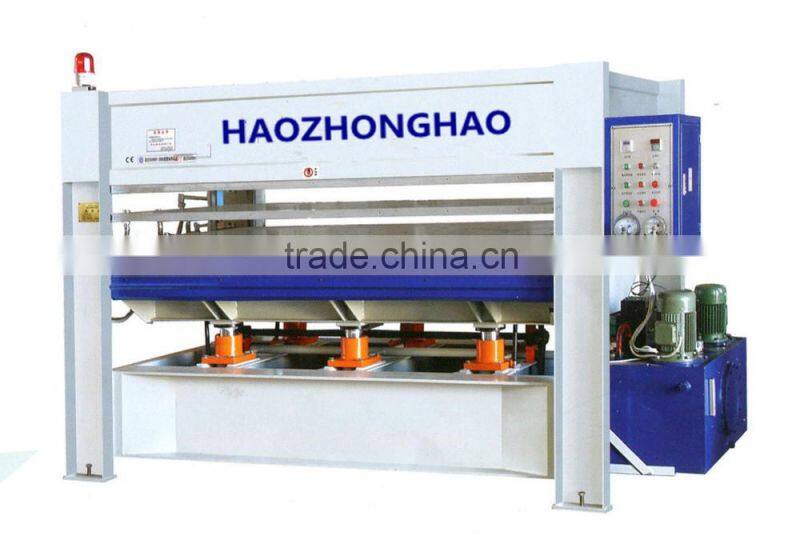

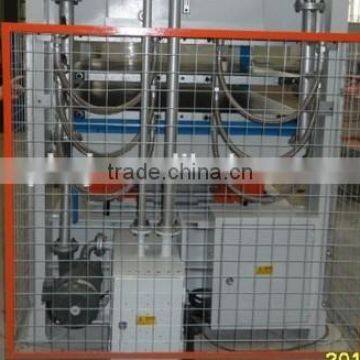

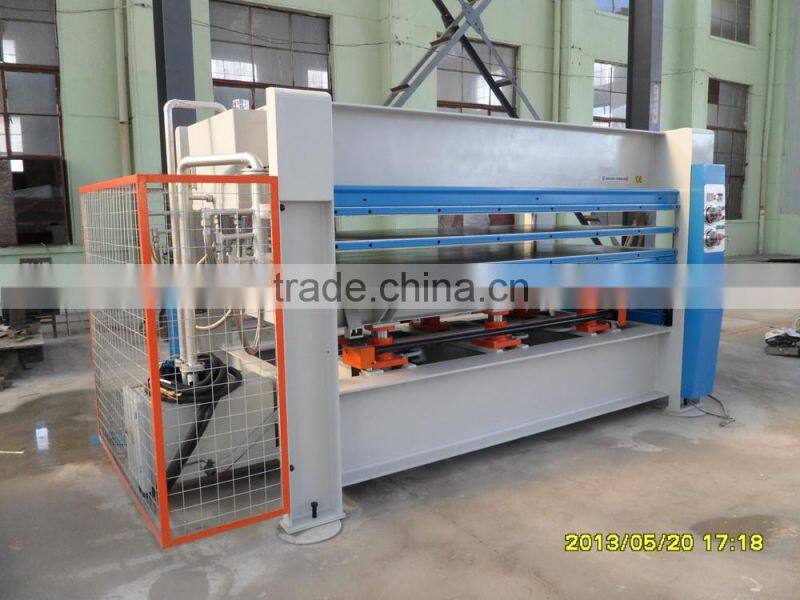

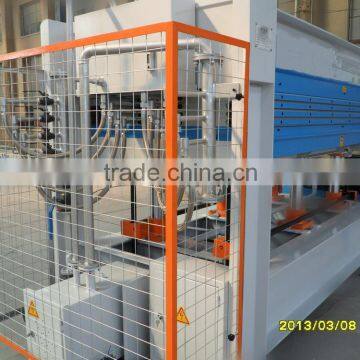

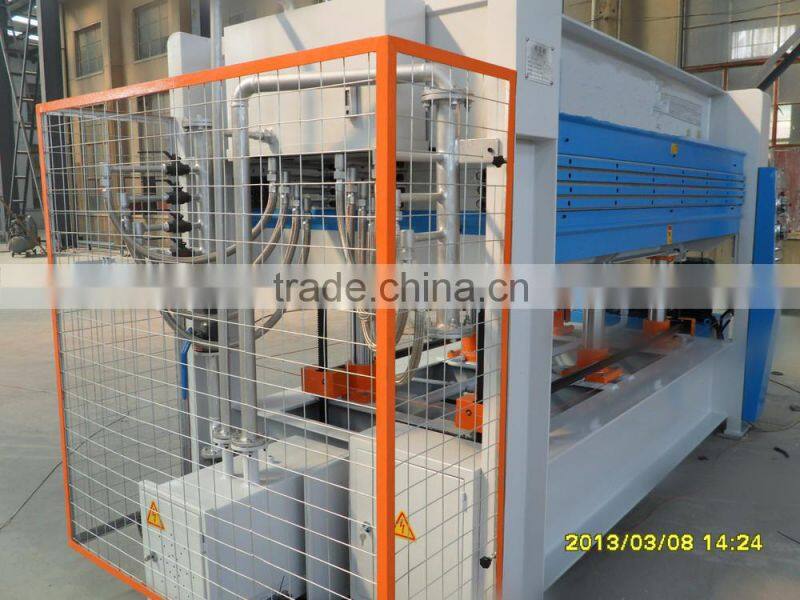

We supply high quality hot press machine BY214*8/160(3)H
| Model | BY214*8/160(3)H |
| Total pressure | 160T |
| Feeding direction | Transversal |
| Dimension of hot platen | 2600*1400*42mm |
| Number of layers | 3 |
| Opening | 100mm |
| Diameter & stroke of Oil cylinder | 100mm* 300mm |
| Number of cylinders | 8 |
| Low pressure pump flux | 63L/min |
| High pressure pump flux | 2.5L/min |

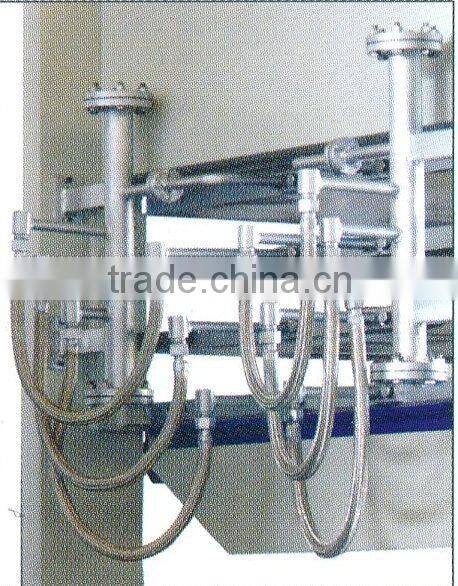

| Heating medium | Steam or thermal oil |
| Frame structure | Composite |
| Working pressure of high pump | 25Mpa |
| Total power | 6.0Kw |
| Overall dimension (Approx) | 3750*1450*2450approx |
| Net Weight (Approx) | 12800Kg |
Video link:https://youtu.be/jyY_e82hpgA
Package: Plastic film package.
Delivery: About 20 days after receive the down payment.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts.Warranty is counting from the date of B/L.
May I customize hot press?
Yes, we supply the hot press according to your requirement, ton, layers and the size of plates
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especiallySanding Machine, Veneer Slicer, Press machine and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
