Home > Manufacturing & Processing Machinery > Hydraulic Press > Four-column Hydraulic Press > 160T Woodworking Hot Press Machine

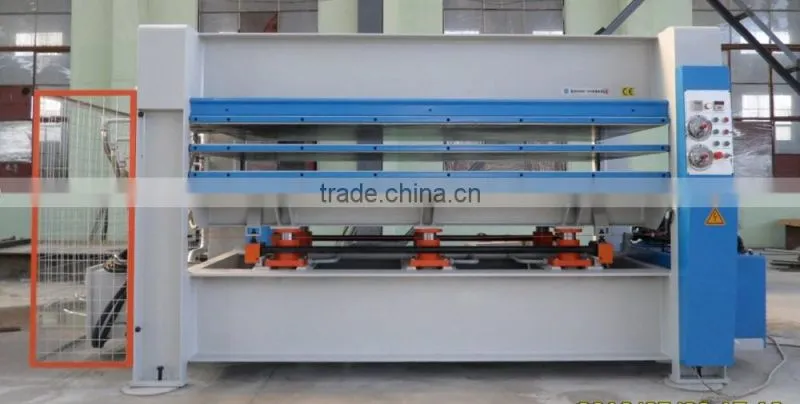

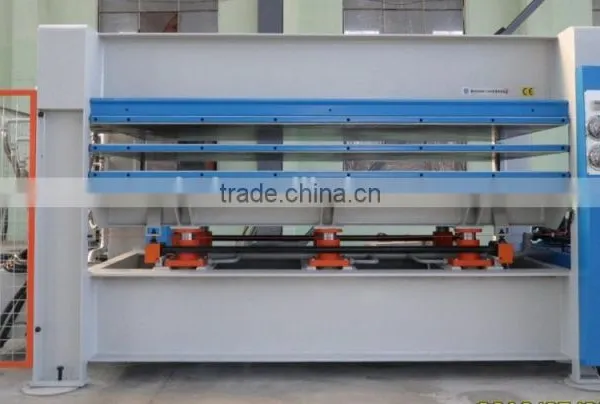

160T Woodworking Hot Press Machine
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hot Press
Application:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking Hot Press Machine for Face BoardUS$ 15,000 - 25,000MOQ: 1 Set -
Woodworking Hydraulic Hot Press Machine for Face BoardUS$ 20,000 - 30,000MOQ: 1 Set
-
Hot Press Machine For PlywoodUS$ 10,000 - 15,000MOQ: 1 Set
-
Plywood Making Hydraulic Hot Press MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Woodworking Hydraulic Hot Press Machine For PlywoodUS$ 10,000 - 15,000MOQ: 1 Set
Condition
New
Type
Hot Press
Application
Woodworking
Pressure
160ton
Place of Origin
Shandong, China
Brand Name
hzh
Model Number
BY214*8/160(3)H
Voltage
380V
Power(W)
6KW
Dimension(L*W*H)
3750*1450*2450MM
Weight
12800Kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
| Model | BY214*8/160(3)H |
| Total pressure | 160ton |
| Feeding direction | Transversal |
| Dimension of hot platen | 2600*1400*42mm |
| Number of layers | 3 |
| Opening | 100mm |
| Diameter & stroke of Oil cylinder | 100mm* 300mm |
| Number of cylinders | 8 |
| Low pressure pump flux | 63L/min |
| High pressure pump flux | 2.5L/min |
| Heating medium | Steam or thermal oil |
| Frame structure | Composite |
| Working pressure of high pump | 25Mpa |
| Total power | 6.0Kw |
| Overall dimension (Approx) | 3750*1450*2450approx |
| Net Weight (Approx) | 12800Kg |
Packaging & Shipping
Package: Plastic film package.
Delivery: About 20 days after receive the down payment.
