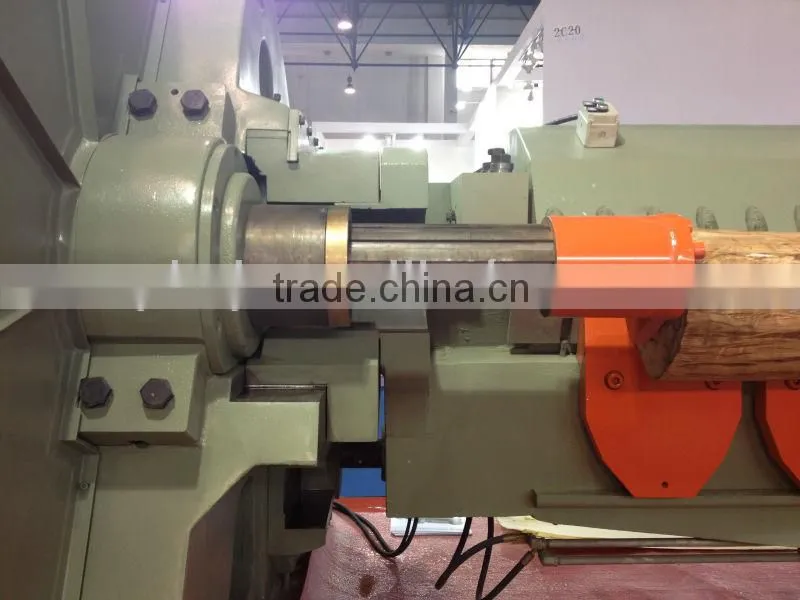

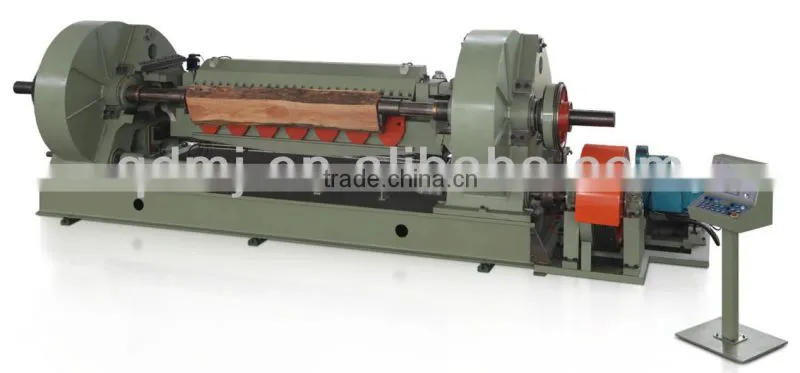

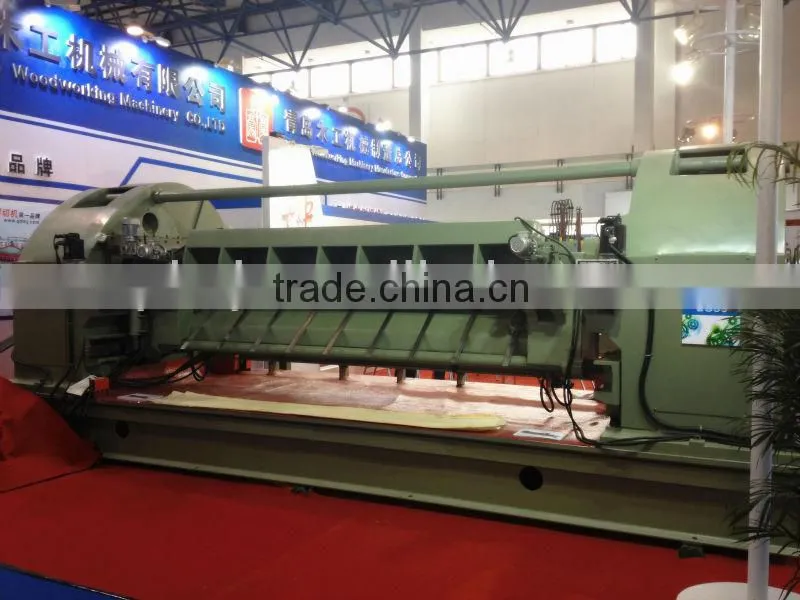

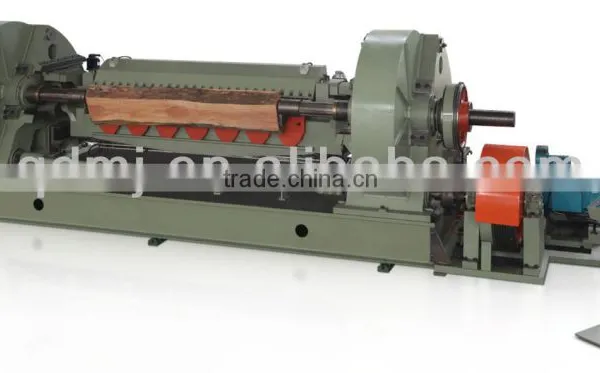

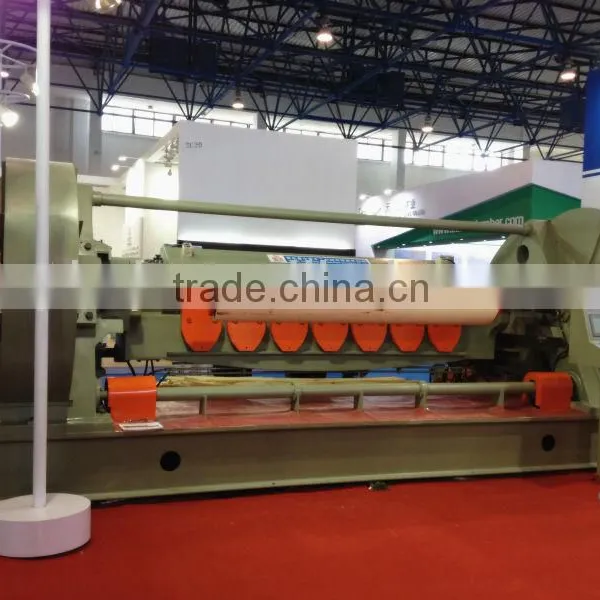

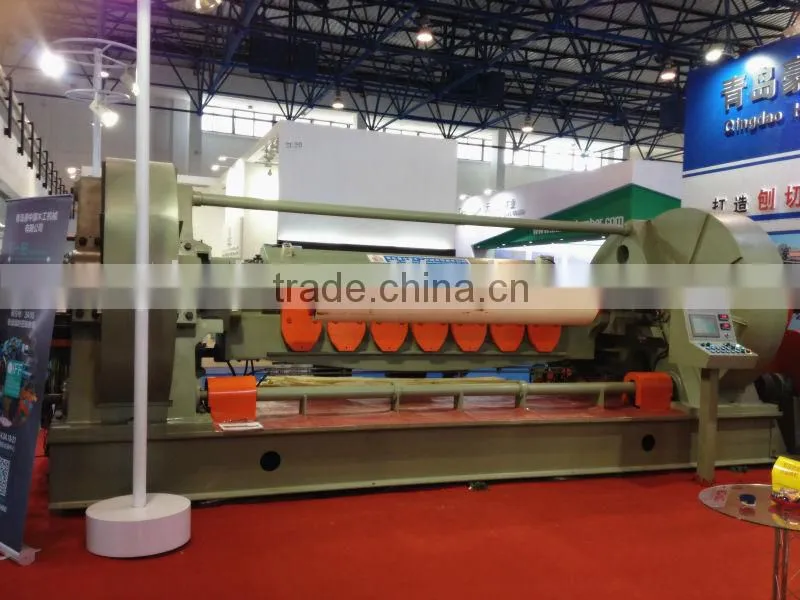

We offer Half round peeling machine for Veneer Model BQ1528
Model |
BQ1528 |
Max length of logs |
2800mm |
Max radius of logs |
660mm |
Thickness of veneer |
0.3~2.5mm |
Working stroke |
450mm |
Slicing speed |
60pcs/min |
Wood clamping speed |
25mm/s |
Fixing of Knife |
Hydraulic |
Auto feeding |
Servo system |
Main motor power |
37kw DC motor |
Wood Clamping motor |
7.5kw*2 |
Knife Feeding motor |
2kw*2 servo motor |
Knife clamping motor |
5.5kw Hydraulic |
Dimension |
9*2.6*2.3m |
Weight |
31T |
Function
This machine adopts technique overseas and is developed by our company independently. It slices solid wood with straight grain, runs stably and precisely, veneer thickness is uniform. It is mainly used in solid wood, plywood, MDF, flooring and furniture production.
Characteristics:
1 Servo motor drives the feeding of precise screw, guarantee the quality and precision of veneer
2 The heating system effectively avoid the stain of veneer

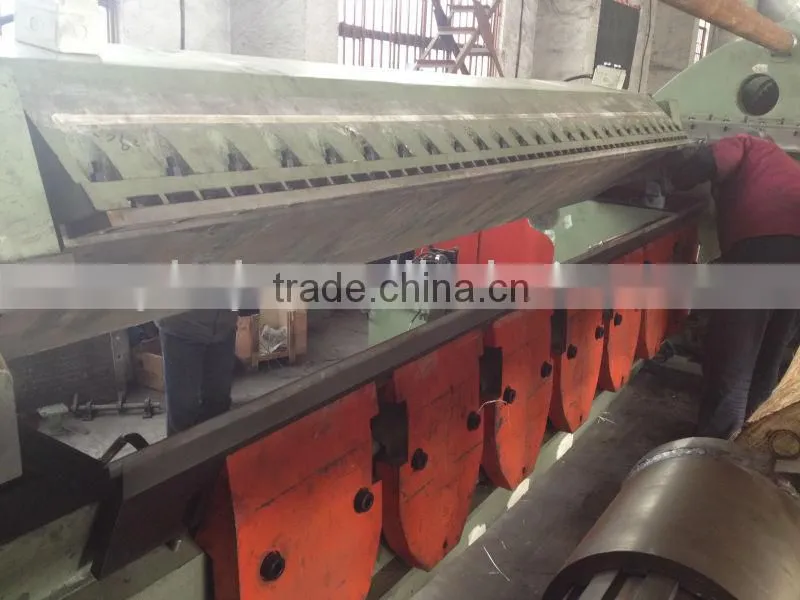

3 Automatic hydraulic blade holding system improves working efficiency
4Blade angle adjusting system slicing all kinds of veneer easily

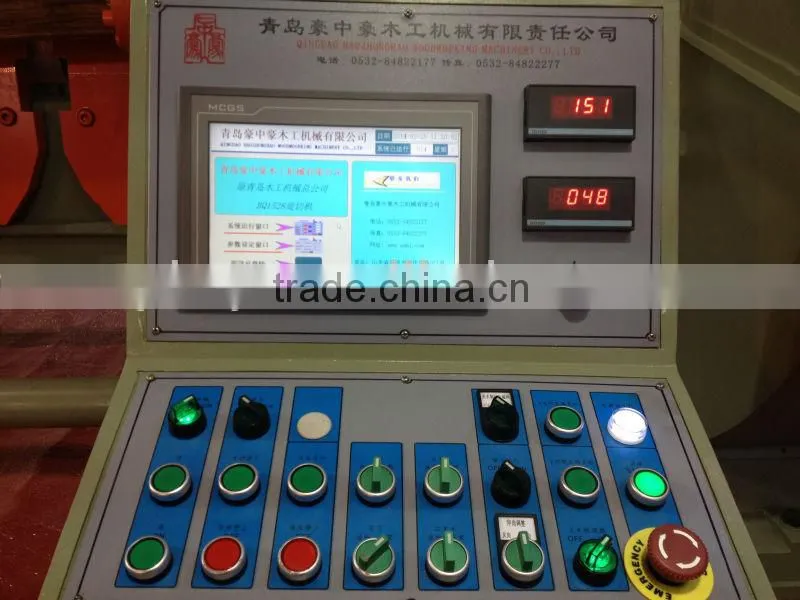

5 All switch buttons are gathered in control cabinet, it is easy to control the machine.
BQ1528 Video online: /v_show/id_XNjgxMDYyMDU2.html
Package: Bare packing and fit in container directly.
Delivery: About 50 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is ; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts.Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder, Peeling machine.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
How to contact us?
More details please contact to Vivian Qu
Email: qwz(at) Web:
Skype: quvivian HP/whatsapp: 0086-15315014218
Tel: 0086-84822277 QQ:81773634
