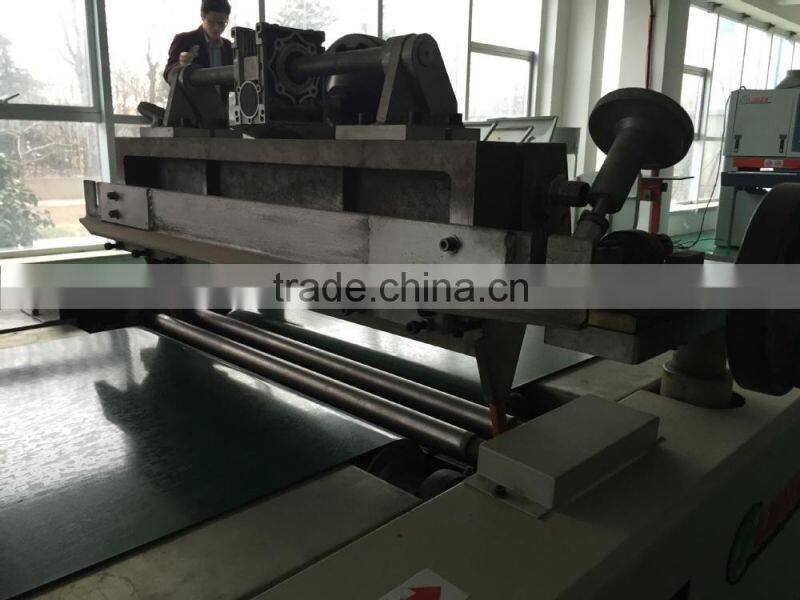

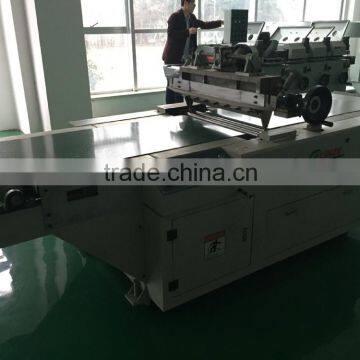

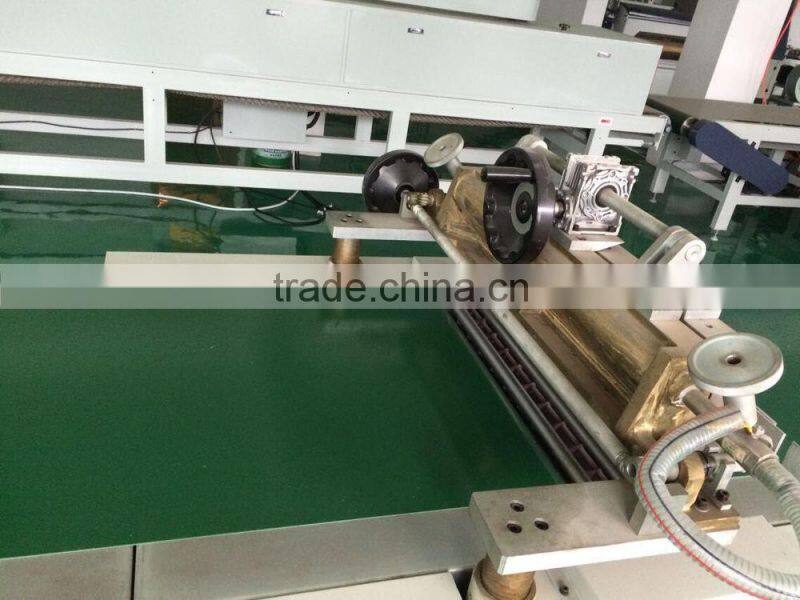

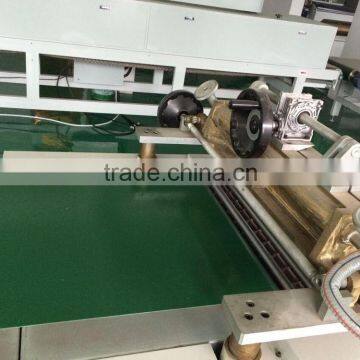

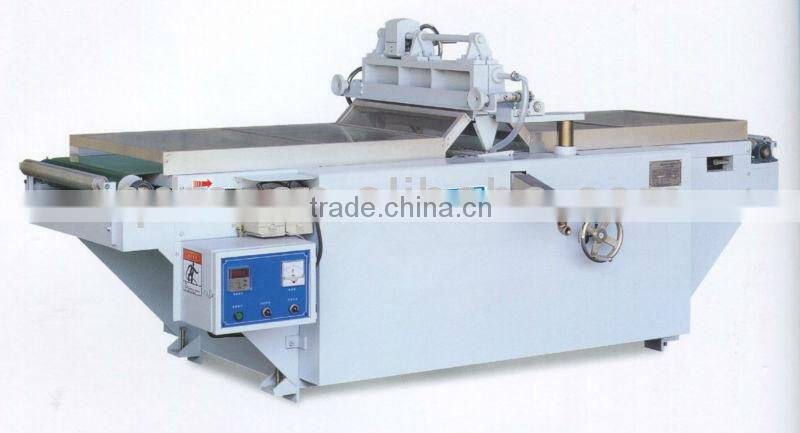

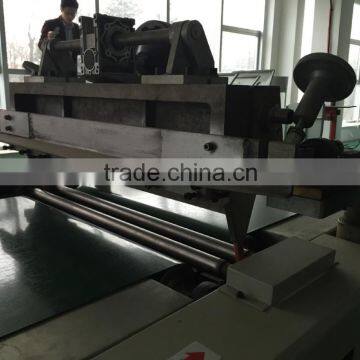

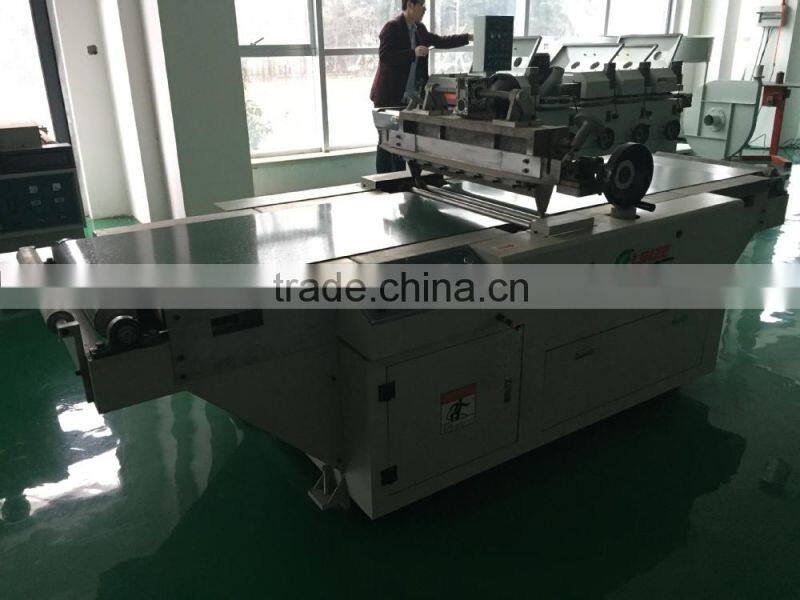

We supply high quality Woodworking Curtain coater
1 This machine is used to coat the top of flat articles and makes the surface of paint smoothly and delicately, the coating thickness can be adjusted accurately, make sure the surface of paint uniform
2 Equipped with circular device, redundant paint can recycle
3 Conveyor belt is made from high quality resin not easy to be corrosion and it is easy to clean
4 Conveyor belt is controlled by adopting AC motor transfer, Speed can be adjusted freely Suitable for all kinds of paint
5 There is temperature regulating device in warming box the paint flow is stable and the temperature of the oil tank is constant.
Model No. Model | LZLM600 | LZLM1000 | LZLM1300 |
Valid Coating width | 600mm | 1000mm | 1300mm |
Feeding speed | Frequency alternator | Frequency alternator | Frequency alternator |
Working Thickness Working thickness | 2-60mm | 2-60mm | 2-60mm |
Min. Length | 300mm | 300mm | 300mm |
Feeding power | 1.5kw | 3.7kw | 3.7kw |
Heating power | 3kw*2 | 5kw*2 | 5kw*2 |
Total motor power | 7.5kw | 13.7kw | 13.7kw |
Overall dimensions | 3000*1400*1300mm | 4120*1850*1400mm | 4120*2100*1400mm |
Weight | 1500kg | 1800kg | 2300kg |
Package: Plastic film package.
Delivery: About 20 days after receive the down payment.
