Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Based Panel Machine > MD516-3 Woodworking Semi-Automatic Edge Bander

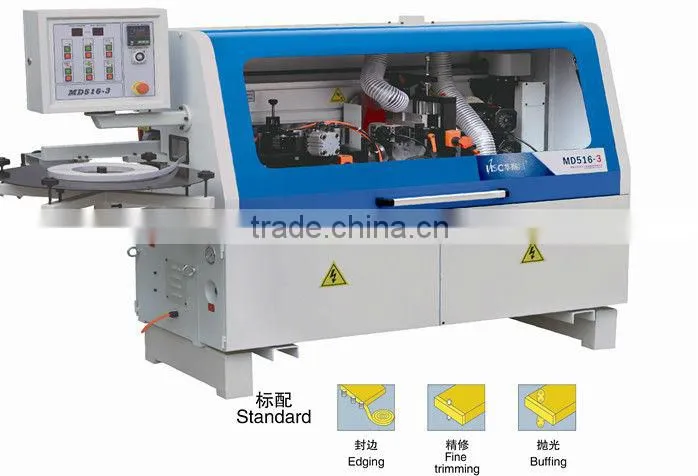

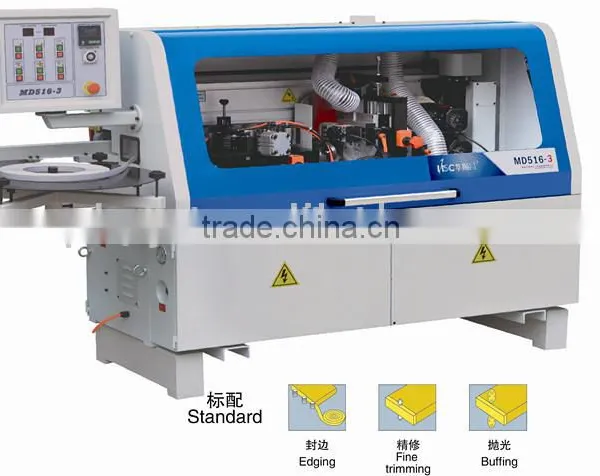

MD516-3 Woodworking Semi-Automatic Edge Bander
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Edge Banding Machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking Linear and Curve Manual Edge CutterUS$ 1,000 - 2,000MOQ: 1 Set -
Woodworking Linear and Curve Manual Edge BanderUS$ 1,000 - 2,000MOQ: 1 Set
-
MD45SA Woodworking Auotomatic Edge Banding MachineNegotiableMOQ: 1 Set
-
Woodworking Automatic Edge Bander Machine for PanelUS$ 5,000 - 8,000MOQ: 1 Set
-
Woodworking Auotomatic Edge Banding Machine for PanelUS$ 5,000 - 10,000MOQ: 1 Set
Condition
New
Type
Edge Banding Machine
Place of Origin
Shandong, China
Brand Name
HZH
Model Number
MD516-3
Voltage
380V
Power(W)
6.43KW
Dimension(L*W*H)
2420x1400x1400mm
Weight
850kgs
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
We offer High quality Auotomatic Edge Bander Machine MD516-3
Product Description
| Thickness of panel: 10-60mm |
| Min width of panel: 60mm |
| Min length of panel:160mm |
| Thickness of belt:0.4-3mm(PVC) |
| Panel feeding speed:18m/min |
| Air pressure:0.7Mpa |
| Fine trimming motor:2x0.5KW 12000r/min 200HZ |
| Buffing motor:2x0.18KW 1400r/min 50HZ |
| Heating power of glue tank:2.6KW |
| Panel feeding motor:1.1KW |
| Glue spindle motor:0.75KW |
| Power of accessorial heater:0.12KW |
| Total power:6.43KW |
| Outline size:2420x1400x1400mm |
| Net Weight:850kg |
The machine is used for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,cutting,fine trimming,buffing.The edged thickness reaches 60mm.
It can achieve the level as same as foreign machines and the price is favourable.It is especially suitable for the factory producing board furniture.
