Place of Origin China
Model Number MA-40-CX-10

Specifications

MA-40-CX-10

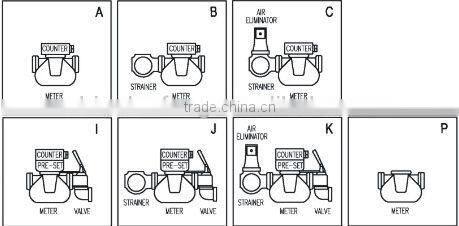

LPG Dispenser Meter with strainer, Air elimintor and differential valve

Positive Displacement Flow Meter



Positive Displacement Flow Meter

Positive Displacement Flow Meter




Positive Displacement Flow Meter
Product Description

   Excellent stepless adjusting me chanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction.



  1. Refined petroleum products;
  2. Aviation gasolines and jet fuels;
  3. A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
  4. Treated waters (deionized, demineralized, and potable);
  5. Chlorinated solvents and general solvent metering;
  6. Acid pH liquids;
  7. Liquefied petroleum gas(LPG);
  8. Crude oil, also for heated and/or viscous liquids;
  9. Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
  10. Herbicide;
  11. Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
  12. Abrasive liquids
  13. Specification
    Model M-40-1 M-50-1 M-50H-1 M-80-1 M-80H-1 M-100-1 M-100H-1 M-150-1 M-150H-1
      Size 40mm / 1" 50mm / 2 " 80mm / 3 " 100mm / 4 " 150mm / 6 "and 100mm / 4 " for option
     Flow Range (L/min) 25-250 38-380 55-550 75-750 115-1150 130-300 170-1700 225-2250 300-3000
    Volume Per Revolution 0.309L 0.681L 1.839L 5.102L 9.507L
    Max.Pressure 10Bar/150PSI
    Accuracy ±0.2%
    Repeatability ≤0.05%
    Standard
    Measurement     		 Liter / US Gallon /IMP Gallon



  14.
    Packaging & Shipping





      Model
    M-40-1
    M-50-1
    M-80-1
    M-100-1
    M-150-1
      Dimension
    53×48×53cm
    53×48×53cm
    58×50×61cm
    76×64×72cm
    80×65×79cm
      Net Weight
    23kg
    26kg
    40kg
    70kg
    130kg
      Gross eight
    35kg
    38kg
    55kg
    90kg
    155kg
      Package
    1pc/Wooden Case
