uf ceramic membrane ceramic filter element for industrial filtration

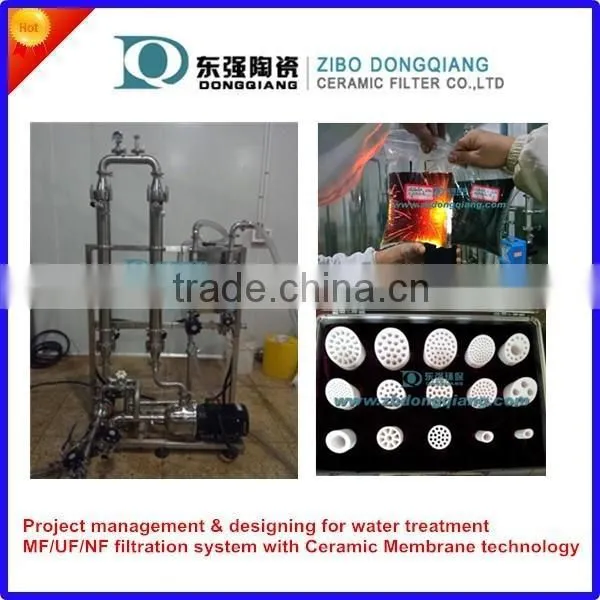

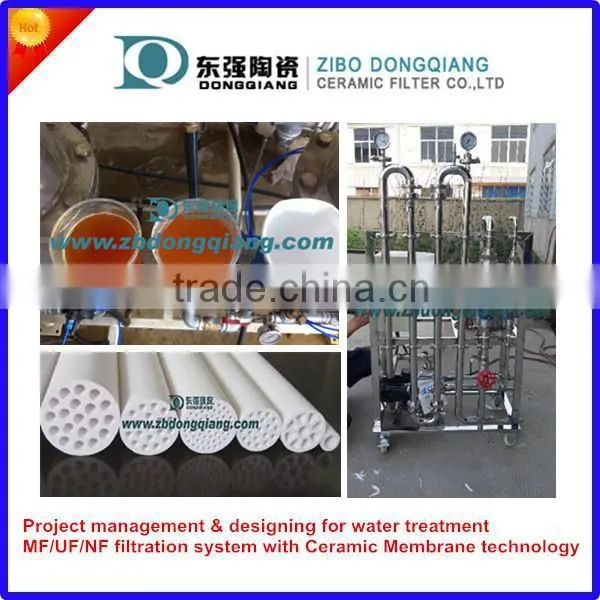

1:System Components:
Membrane module(membrane,ss housing),feed tank,centrifugal pump,flow/pressure /temperature meter,
electric control panel,valves and pipes;
Type of module(number of membranes/housing) : 1,3,7,12,19,37,61,91 pcs
Length of membrane: 100-1500mm
Outer diameter of membrane: 12/25/30/40/52/60mm
Material of body: SS304,SS316L,Titanium,FRPP,MSRL;
Material of seals: EPDM;Fluoro Rubber;Silicon;
2: Filtration mode: cross flow filtration;
3:Properties of ceramic membrane:
Support material: |
α-alumina |
|
|
Pore sizes: |
UF: 10,20,30,50nm |
|
|
MF: 100,200,500,800,1200nm |
|
||
Membrane material: |
Zirconia,Titania,Alumina |
|
|
Length of membrane: |
250-1200mm(special length upon customer's request) |
||
Outer diamater: |
12/25/30/40/52/60mm |
|
|
Working pressure: |
≤1.0MPa |
|
|
Burst pressure: |
≥9.0MPa |
|
|
Working temperature: |
5-120℃ |
|
|
PH range: |
0-14 |
|
|
4:Specifications:
5:Applications:
Separation of liquids and solids;separation of oil and water;separation of liquids and liquids;
(especially for filtration of food and beverage industries,chemcical and petrochemical industries,
pharmaceutical and mining industries.)
6: Ceramic Membrane Comparison with traditional filtration system
Compared with such tradition filter like Filter Press, Centrifuge, DE Filter and organic membrane,
Ceramic Membrane has many unique advantages.
- Excellence resistance to acid, alkaline and oxidation chemicals.
- Solvent stability, high thermal stability.
- Fine reparability with narrow pore size distribution.
- Extremely long work life compared with polymeric membrane.
- 5: Easy to be cleaned and sanitized with back flush.
Pls contact us directly for more details information.
